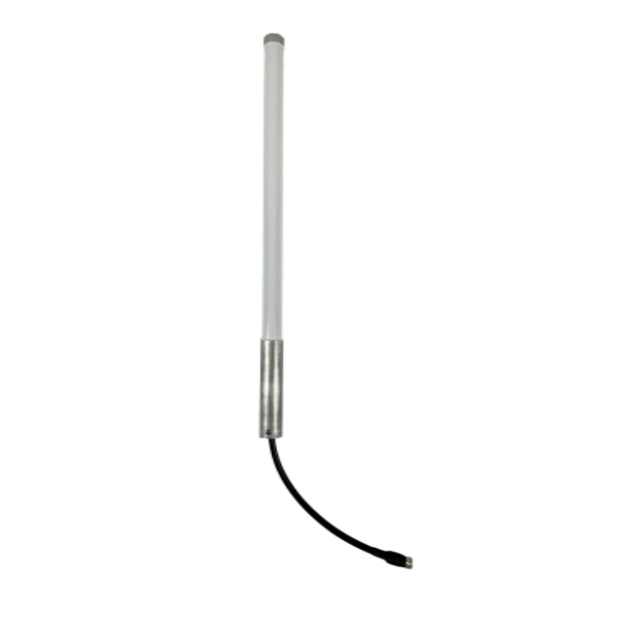

5dBi Gain Omni Fiberglass Antenna with N-K Connector GLU3FG5D

Product Introduction

1、Targeted 351-366MHz Bandwidth:

Tuned for 351-366MHz with 15MHz bandwidth, optimized for dedicated public safety, private radio, and industrial communication systems.

2、5dBi Consistent Gain:

Delivers 5dBi of gain to extend signal range and improve penetration, reducing dead zones in both urban and remote locations.

3、360° Omnidirectional Coverage:

 Uniform horizontal radiation pattern eliminates the need for precise alignment, perfect for multi-directional and mobile communication setups.

4、Vertical Polarization:

Optimized vertical polarization ensures maximum compatibility with most standard radios and gateways operating in the band.

Rugged Fiberglass Build: Lightweight yet durable fiberglass radome resists UV rays, corrosion, and extreme weather, ensuring long-term performance outdoors.

5、Low-Loss N-K Connector:

Features an industry-standard N-type female (N-K) connector for secure, low-attenuation connections with compatible cables and equipment.

Application Scenarios

Ideal for private radio networks, industrial telemetry and public safety communication systems.

Perfect choice for indoor & outdoor wireless signal transmission in 351-366MHz frequency band.

Widely applied in emergency communication, SCADA systems and remote IoT monitoring.

FAQ

Q: What frequency band does this antenna support?

A: It is tuned for 351-366MHz with a 15MHz working bandwidth, ideal for dedicated radio communication systems.

Q: What is the gain of this omnidirectional antenna?

A: The nominal gain is 5dBi, which effectively extends signal transmission range and reduces blind spots.

Q: What type of connector does this antenna use?

A: It comes with a standard N-K (N-type female) connector for stable and low-loss connection.

Q: Can this antenna be installed outdoors?

A: Yes. It supports both indoor and outdoor installation, built to withstand harsh outdoor environments.

Q: What is the maximum wind resistance of the antenna?

A: It can resist wind velocity up to 60 m/s, safe for long-term outdoor pole mounting.

Q: How much maximum power can this antenna handle?

A: The maximum power handling is 100W, meeting the demand of professional RF equipment.

Q: What main applications is this antenna for?

A: It is widely used for public safety communication, industrial telemetry, SCADA systems and private radio networks.
