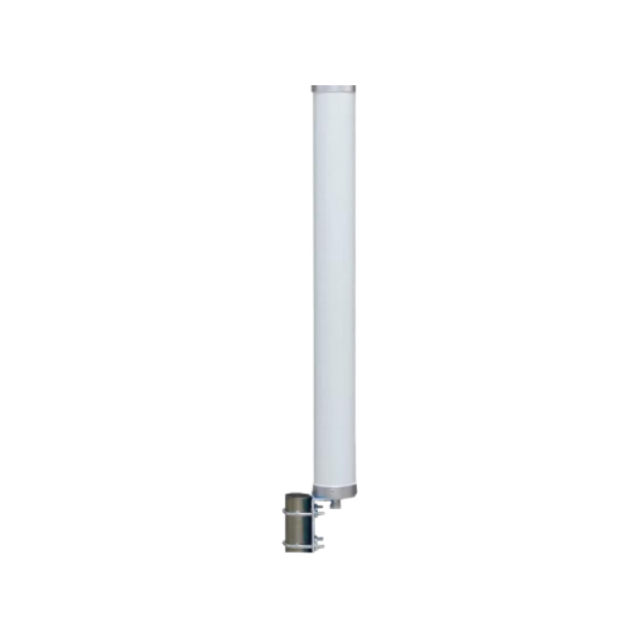

5dBi 480-580MHz Band Omnidirectional Antenna for wireless systems

1. High Power Handling Capability (50W Max Input): Supports a maximum input power of 50W, ensuring stable operation under high load conditions. Suitable for professional wireless communication systems such as public safety and commercial broadcasting, reducing the risk of signal attenuation.

2. Omnidirectional Radiation Mode (360° Coverage): Provides uniform 360-degree signal coverage, eliminating blind spots. Ideal for base stations, repeaters, and mobile deployments, ensuring reliable connectivity across all directions.

3. Weather-Resistant & Robust: The radome is made of PVC material, with an operating temperature range of -20℃ to 85℃, wind speed resistance up to 60m/s, and DC grounding lightning protection, suitable for harsh outdoor and industrial environments.

4. Easy Mounting & Standard Connector: Standard pole mounting for quick and easy attachment to posts or poles; uses an N-type connector (N-k), compatible with most wireless devices, reducing installation time and costs.

5. Optimized Performance Metrics (Low VSWR & High Efficiency) With a voltage standing wave ratio as low as 1.8 and a gain of 5dBi, it ensures efficient signal transmission and reception, minimizes energy loss, and improves overall communication quality.

Application Scenarios

Public Safety Communications: Wireless networks for police, fire, and emergency services, providing reliable omnidirectional coverage in emergency situations.

Industrial Internet of Things (IoT): Connecting sensors and devices in factories, farms, or smart cities for data acquisition and monitoring.

Amateur Radio and Hammer Radio: Supporting long-distance communication and experimentation for amateurs in the 480-580MHz band.

Outdoor Broadcasting and Relay Stations: Broadcasting systems for temporary events, concerts, or remote areas, ensuring uniform signal distribution.

Military and Defense Applications: Providing stable communication links in harsh environments (such as in the field or moving vehicles), benefiting from its durability and omnidirectional performance.

FAQ

Q: What is the frequency range of this antenna?

A: It operates in the 480-580MHz range with a bandwidth of 100MHz.

Q: What is the maximum input power supported?

A: The antenna can handle up to 50W of input power, making it suitable for high-power applications.

Q: What is the gain of the antenna?

A: The gain is 5dBi, which provides effective signal enhancement for omnidirectional coverage.

Q: Is the antenna weatherproof?

A: Yes, the PVC cover and operating temperature range of -20℃ to 85℃ ensure durability in outdoor conditions.

Q: What connector type does it use?

A: It uses an N-type connector (N-k), which is standard for high-frequency wireless systems.

Q: What are the dimensions and weight?

A: The antenna measures Φ60mm × 760mm and weighs 500g, making it portable and easy to deploy.
