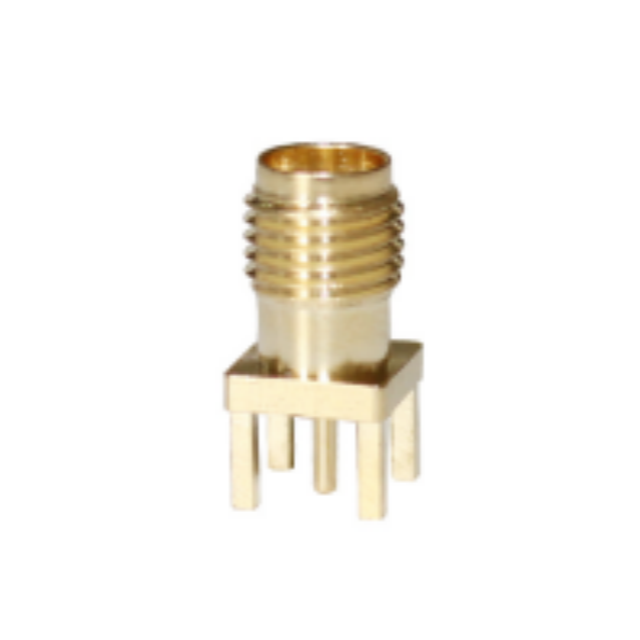

GL-SMAC3
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range(GHz) | 11 |
Impedance(ohm) | 50 |
VSWR | 1.10 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф5.3*13.5 |
Product Introduction
1. Standard 50Ω impedance ensures seamless compatibility with mainstream RF systems, avoiding signal mismatch loss.
2. Covers 0-11GHz frequency range with VSWR ≤1.10, delivering high signal integrity for mid-to-high frequency applications.
3. Outer contact and center contact enhance conductivity, corrosion resistance and long-term durability.
4. Supports ≥500 mating cycles and 0.7-1.1Nm recommended torque, guaranteeing reliable connection in repeated use.
5. Compact size (Ф5.3*13.5mm) enables space-saving installation, perfect for dense-port or miniaturized equipment.
Application Scenarios
1. Wireless Communication: Fits 5G small cells, wireless backhaul devices and high-frequency WiFi routers.
2. Test & Measurement: Works with network analyzers, signal generators and RF test fixtures for precision testing.
3. Microwave Devices: Compatible with microwave transceivers, power amplifiers and satellite communication modules.
4. Consumer Electronics: Ideal for portable RF devices, smart home high-speed modules and drone communication systems.
FAQ
Q: What is the impedance of this SMA RF connector?
A: It features a standard 50Ω impedance, perfectly matching mainstream radio frequency systems.
Q: What is the maximum operating frequency of the connector?
A: It supports up to 11GHz when used with semi-rigid cabling, meeting high-frequency needs.
Q: How many times can this connector be mated and unmated?
A: It supports ≥500 mating cycles, ensuring long-term reliable use in frequent-connection scenarios.
Q: What’s the operating temperature range of this SMA connector?
A: It works stably between -55°C and +155°C, suitable for harsh environmental applications.
Q: What’s the maximum test voltage this connector can withstand?
A: It can bear a test voltage of up to 2500V, meeting safety and insulation requirements.
Frequency Range(GHz) | 11 |
Impedance(ohm) | 50 |
VSWR | 1.10 |
Test voltage(max) | 2500 V |
PIM(3rd order) | ≤-160 dBc @ 2 x 20 W |
Mating Cycles | ≥ 500 |
Coupling Torque | Max 1.7 Nm |
Recommended Coupling Torque | 0.7-1.1 Nm |
Temperature Range | -55℃-+155℃ |
Outer Contact | Brass CuSnZn Plating |
Center Contact | Brass Ag Plating |
Cable Group | N/A |
Plating | CuSnZn |
Length(mm) | Ф5.3*13.5 |
Product Introduction
1. Standard 50Ω impedance ensures seamless compatibility with mainstream RF systems, avoiding signal mismatch loss.
2. Covers 0-11GHz frequency range with VSWR ≤1.10, delivering high signal integrity for mid-to-high frequency applications.
3. Outer contact and center contact enhance conductivity, corrosion resistance and long-term durability.
4. Supports ≥500 mating cycles and 0.7-1.1Nm recommended torque, guaranteeing reliable connection in repeated use.
5. Compact size (Ф5.3*13.5mm) enables space-saving installation, perfect for dense-port or miniaturized equipment.
Application Scenarios
1. Wireless Communication: Fits 5G small cells, wireless backhaul devices and high-frequency WiFi routers.
2. Test & Measurement: Works with network analyzers, signal generators and RF test fixtures for precision testing.
3. Microwave Devices: Compatible with microwave transceivers, power amplifiers and satellite communication modules.
4. Consumer Electronics: Ideal for portable RF devices, smart home high-speed modules and drone communication systems.
FAQ
Q: What is the impedance of this SMA RF connector?
A: It features a standard 50Ω impedance, perfectly matching mainstream radio frequency systems.
Q: What is the maximum operating frequency of the connector?
A: It supports up to 11GHz when used with semi-rigid cabling, meeting high-frequency needs.
Q: How many times can this connector be mated and unmated?
A: It supports ≥500 mating cycles, ensuring long-term reliable use in frequent-connection scenarios.
Q: What’s the operating temperature range of this SMA connector?
A: It works stably between -55°C and +155°C, suitable for harsh environmental applications.
Q: What’s the maximum test voltage this connector can withstand?
A: It can bear a test voltage of up to 2500V, meeting safety and insulation requirements.
