4dBi gain Indoor distributed system 5G Omni Ceiling Antenna

Comparative Analysis: GL-DY7060V3 vs GL-DY7027V3C

Product Introduction

1. Ultra-wide Bandwidth Coverage
   Supports 380-520/698-960/1710-6000MHz, enabling seamless connectivity for 2G/3G/4G/5G and WiFi systems in a single device

2. Optimized Gain for Diverse Bands
   Delivers 2.0dBi (380-520MHz), 2.5dBi (698-960MHz), and 4.0dBi (1710-6000MHz) to balance coverage and signal strength across frequency ranges

3. Lightweight & Compact Design
   Weighing only 0.9kg with Ø298×152mm dimensions, it allows easy ceiling mounting in crowded indoor spaces without structural modifications

4. Durable Anti-UV Construction
   The ABS radome resists ultraviolet degradation, while the aluminum radiating element ensures long-term performance in commercial environments

5. Reliable Environmental Tolerance
   Operates from -40℃ to +65℃, suitable for harsh indoor conditions like data centers, warehouses, or airports with fluctuating temperatures

Application scenarios

1. Commercial buildings – Eliminate dead zones in malls, offices, hotels; handle thousands of devices via 4G/5G & WiFi.

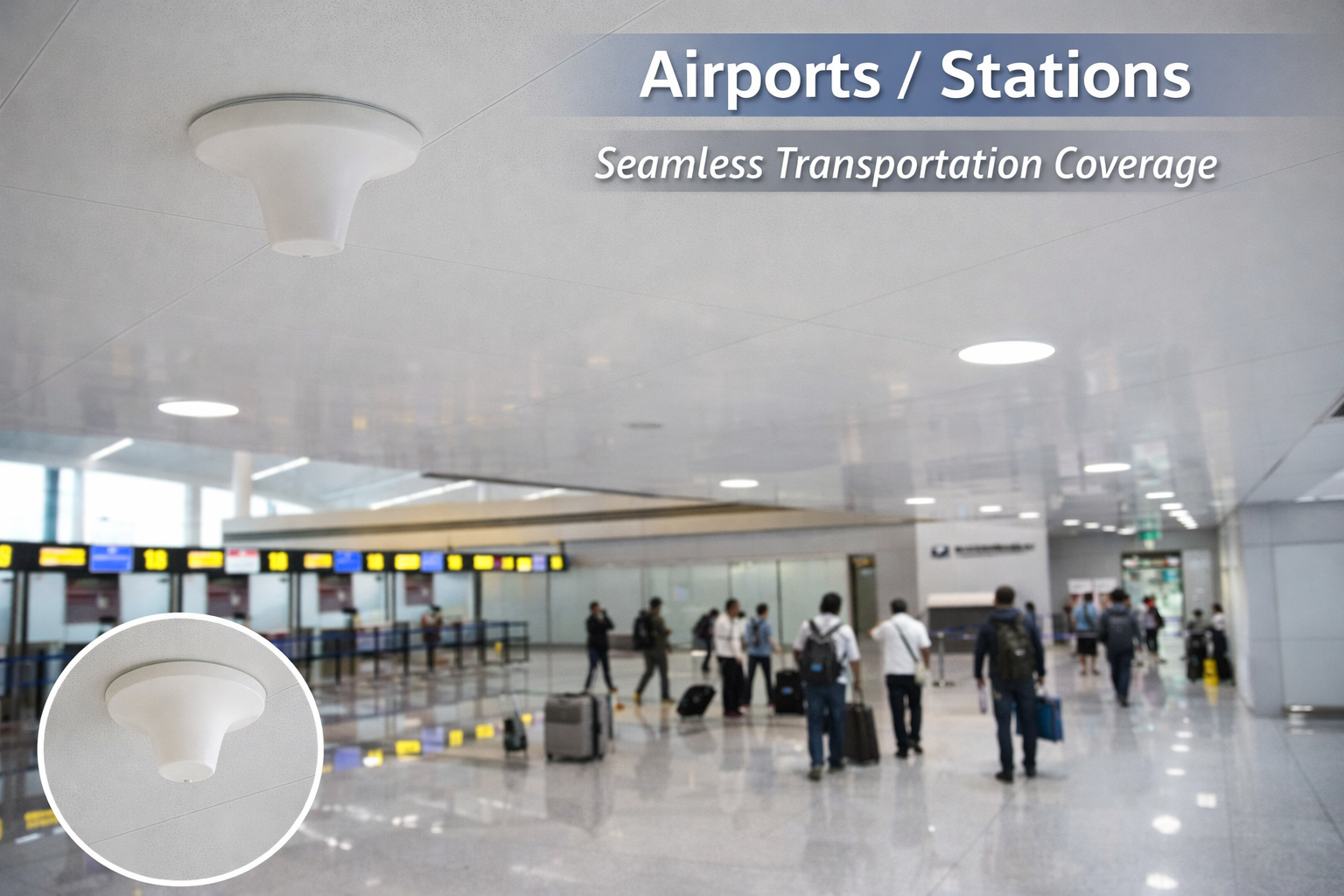

2. Transportation hubs – Maintain robust connectivity in airports, stations, subways for passenger and security systems.

3. Industrial facilities – Enable real-time IoT sensor data from machinery and equipment in factories or warehouses.

4. Healthcare facilities – Support medical devices, patient monitors, and staff networks with reliable hospital coverage.

5. Educational campuses – Provide high-density connectivity for e‑learning and student devices across lecture halls, dorms, and libraries.

FAQ

Q: What frequencies does it support?
A: Three bands: 380-520MHz, 698-960MHz, and 1710-6000MHz (covers 4G/5G/WiFi).

Q: Is lightning protection included?
A: Yes, DC grounding protects against surges.

Q: What’s the coverage pattern?
A: Full 360° horizontal omni-directional radiation.

Q: Can it handle high-power inputs?
A: Rated for 50W max input power – suitable for active DAS.

Q: What connector type is used?
A: Standard N-female interface (50Ω impedance).

Q: Is outdoor installation possible?
A: Designed for indoor use only (no IP rating for outdoor).

Q: How heavy is the antenna?
A: Only 0.9kg – minimizes ceiling load stress.

Q: Does it support 5G mmWave?
A: No, maximum 6000MHz (covers sub-6GHz 5G, not mmWave).
