GLHD8E
Asialeren
8517710000
10pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

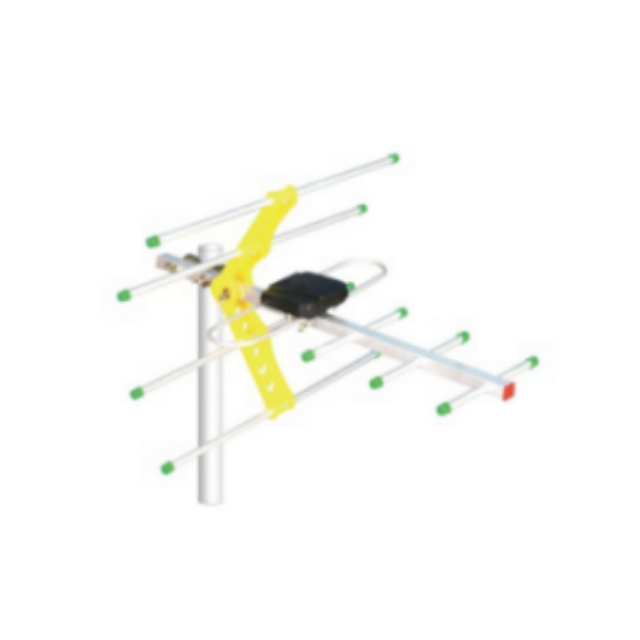

Item | HDTV Outdoor Antenna |
PN | GLHD8E |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 9-11 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 720 |
Carton Size-mm |
|
Weight | 8.5kg/carton |
Product Introduction
470-862MHz Full Band Coverage, Compatible with HD TV Signals: Designed specifically for the 470-862MHz UHF band, it perfectly covers mainstream HD TV bands worldwide and is compatible with digital terrestrial TV signal reception. No additional adjustments are required to connect to various HD TVs and set-top boxes, avoiding channel limitations and signal instability caused by band gaps, meeting the needs of a full HD home viewing experience.
9-11dBi High Gain, Powerful Reception in Weak Signal Areas: With a gain of 9-11dBi, compared to ordinary 5-8dBi antennas, the signal reception distance can be extended by more than 80%. It can effectively capture weak TV signals in remote areas and rural areas with poor signal, solving the pain point of "no cable TV or choppy internet TV," ensuring clear, snow-free, and smooth HD channel picture.
Low VSWR + Stable Impedance, Highly Efficient and Lossless Signal Transmission: VSWR (Voltage Standing Wave Ratio) ≤1.5, far exceeding the industry standard of ≤2.0, significantly reduces signal reflection loss, ensuring over 95% transmission efficiency of TV signals from antenna to terminal; the 75Ω standard impedance precisely matches the impedance of HDTVs and set-top boxes, further reducing energy waste and improving signal reception stability.
Aluminum-Plastic Composite Material, Maximizing Outdoor Durability: Utilizing a high-quality aluminum radiating unit combined with a plastic shell, aluminum offers strong conductivity and high signal transmission efficiency, while the plastic shell is UV-resistant and corrosion-resistant, able to withstand harsh outdoor environments such as wind, rain, and high temperatures; the overall structure is robust, and the 720mm length design balances signal reception performance with installation flexibility, making it less prone to deformation and aging during long-term outdoor use, extending its lifespan by 2 times compared to antennas made of ordinary materials.
F-type interface + universal adapter, easy installation and strong compatibility: Equipped with an industry-standard F-type connector, compatible with the signal interfaces of most HDTVs and digital set-top boxes, requiring no additional adapters, plug and play, even beginners can quickly complete the installation; 75Ω impedance adapts to mainstream TV signal transmission standards, whether for independent home installation or mass deployment in communities and villas, it can seamlessly connect to existing equipment, with wide compatibility.
Application Scenarios
Rural/Remote Area Homes: Installed on a yard bracket or roof, 9-11dBi high gain captures long-distance TV signals, solving the problems of insufficient cable TV coverage and poor IPTV signal in remote areas, allowing families to enjoy HDTV channels.
Villas/Detached Houses Outdoors: Fixed to villa terraces, roofs, or yard poles, the aluminum-plastic material is weather-resistant and suitable for long-term outdoor use.
Camping Sites/Temporary Housing: As a TV signal solution for outdoor camping and temporary construction site housing.
Apartment Rooftops/Balconies: For apartment users without cable TV coverage, installed on the rooftop or balcony.
Small commercial venues: used in small commercial scenarios such as convenience stores, rural kiosks, and outdoor leisure areas.
FAQ
Q: What frequency range does GLHD8E cover?
A: It supports 470-862MHz UHF band, compatible with mainstream HDTV terrestrial signals.
Q: What is the gain range of GLHD8E?
A: Its gain is 9-11dBi, enhancing weak signal reception for clear HDTV pictures.
Q: What connector type does GLHD8E use?
A: It uses an F-type connector, widely compatible with HDTVs and set-top boxes.
Q: What is the input impedance of GLHD8E?
A: Its input impedance is 75Ω, matching standard HDTV signal transmission requirements.
Q: What materials is GLHD8E made of?
A: It is made of aluminum (radiation unit) and plastic (housing), durable for outdoor use.
Q: Is GLHD8E suitable for remote areas?
A: Yes, its 9-11dBi high gain effectively receives weak signals in rural/remote locations.
Item | HDTV Outdoor Antenna |
PN | GLHD8E |
Frequency Range (MHz) | 470-862 |
Input Impedence (Ω) | 75 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 9-11 |
Polarization | Vertical |
Power Capacity (w) | 50 |
Mechanical Specifications | |
Connect Type | F |
Material | Aluminum and Plastic |
Length-mm | 720 |
Carton Size-mm |
|
Weight | 8.5kg/carton |
Product Introduction
470-862MHz Full Band Coverage, Compatible with HD TV Signals: Designed specifically for the 470-862MHz UHF band, it perfectly covers mainstream HD TV bands worldwide and is compatible with digital terrestrial TV signal reception. No additional adjustments are required to connect to various HD TVs and set-top boxes, avoiding channel limitations and signal instability caused by band gaps, meeting the needs of a full HD home viewing experience.
9-11dBi High Gain, Powerful Reception in Weak Signal Areas: With a gain of 9-11dBi, compared to ordinary 5-8dBi antennas, the signal reception distance can be extended by more than 80%. It can effectively capture weak TV signals in remote areas and rural areas with poor signal, solving the pain point of "no cable TV or choppy internet TV," ensuring clear, snow-free, and smooth HD channel picture.
Low VSWR + Stable Impedance, Highly Efficient and Lossless Signal Transmission: VSWR (Voltage Standing Wave Ratio) ≤1.5, far exceeding the industry standard of ≤2.0, significantly reduces signal reflection loss, ensuring over 95% transmission efficiency of TV signals from antenna to terminal; the 75Ω standard impedance precisely matches the impedance of HDTVs and set-top boxes, further reducing energy waste and improving signal reception stability.
Aluminum-Plastic Composite Material, Maximizing Outdoor Durability: Utilizing a high-quality aluminum radiating unit combined with a plastic shell, aluminum offers strong conductivity and high signal transmission efficiency, while the plastic shell is UV-resistant and corrosion-resistant, able to withstand harsh outdoor environments such as wind, rain, and high temperatures; the overall structure is robust, and the 720mm length design balances signal reception performance with installation flexibility, making it less prone to deformation and aging during long-term outdoor use, extending its lifespan by 2 times compared to antennas made of ordinary materials.
F-type interface + universal adapter, easy installation and strong compatibility: Equipped with an industry-standard F-type connector, compatible with the signal interfaces of most HDTVs and digital set-top boxes, requiring no additional adapters, plug and play, even beginners can quickly complete the installation; 75Ω impedance adapts to mainstream TV signal transmission standards, whether for independent home installation or mass deployment in communities and villas, it can seamlessly connect to existing equipment, with wide compatibility.
Application Scenarios
Rural/Remote Area Homes: Installed on a yard bracket or roof, 9-11dBi high gain captures long-distance TV signals, solving the problems of insufficient cable TV coverage and poor IPTV signal in remote areas, allowing families to enjoy HDTV channels.
Villas/Detached Houses Outdoors: Fixed to villa terraces, roofs, or yard poles, the aluminum-plastic material is weather-resistant and suitable for long-term outdoor use.
Camping Sites/Temporary Housing: As a TV signal solution for outdoor camping and temporary construction site housing.
Apartment Rooftops/Balconies: For apartment users without cable TV coverage, installed on the rooftop or balcony.
Small commercial venues: used in small commercial scenarios such as convenience stores, rural kiosks, and outdoor leisure areas.
FAQ
Q: What frequency range does GLHD8E cover?
A: It supports 470-862MHz UHF band, compatible with mainstream HDTV terrestrial signals.
Q: What is the gain range of GLHD8E?
A: Its gain is 9-11dBi, enhancing weak signal reception for clear HDTV pictures.
Q: What connector type does GLHD8E use?
A: It uses an F-type connector, widely compatible with HDTVs and set-top boxes.
Q: What is the input impedance of GLHD8E?
A: Its input impedance is 75Ω, matching standard HDTV signal transmission requirements.
Q: What materials is GLHD8E made of?
A: It is made of aluminum (radiation unit) and plastic (housing), durable for outdoor use.
Q: Is GLHD8E suitable for remote areas?
A: Yes, its 9-11dBi high gain effectively receives weak signals in rural/remote locations.
750*305*560
