GL65DP15-03850AE-1
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

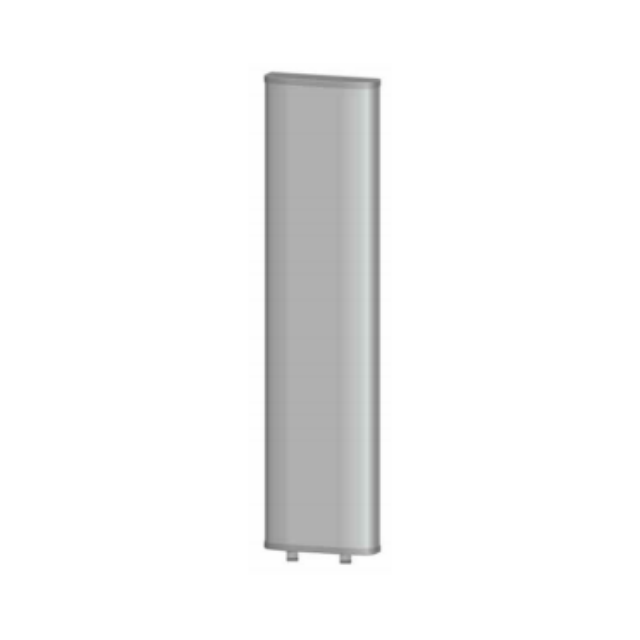

Item | Panel Antenna |
PN | GL65DP15-03850AE-1 |
Frequency(Mhz) | 380-450/450-500 |
Bandwidth(MHz) | 70/50 |
Gain(dBi) | 14/14.5 |
Electrical Downtil(°) | 0-14 |
Isolation(dB) | ≥26 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 200 |
Dimensions(mm) | 2050*450*145 |
Connector | 2*7/16DIN Female |
Item | Panel Antenna |
PN | GL65DP15-03850AE-1 |
Frequency(Mhz) | 380-450/450-500 |
Bandwidth(MHz) | 70/50 |
Gain(dBi) | 14/14.5 |
Electrical Downtil(°) | 0-14 |
Isolation(dB) | ≥26 |
F/B Ratio(dB) | ≥25 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 200 |
Dimensions(mm) | 2050*450*145 |
Connector | 2*7/16DIN Female |
