GL-DYG860
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |

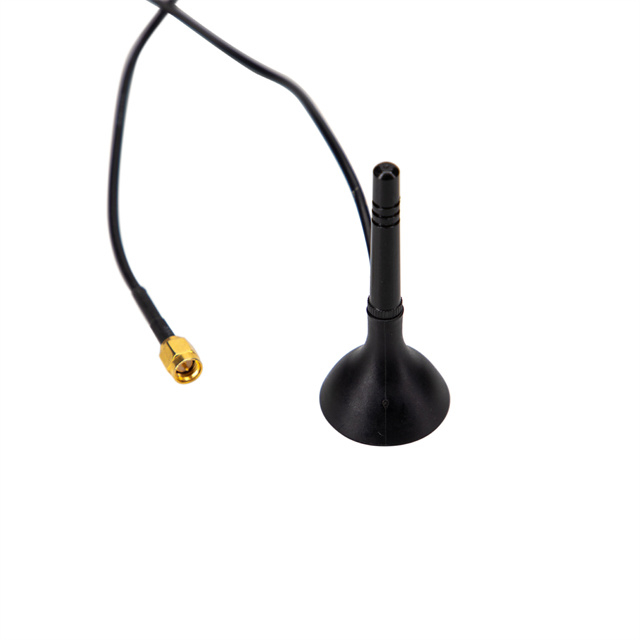

433MHz Magnet Antenna | |
GL-DYG860 | |
Electrical Index | |
Frequency-MHz | 423-443 |
| Gain-dbi | 2.5-3 |
VSWR | ＜2.5 |
Normal Impedance-Ω | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG174,1.5m |
Connector | |
Antenna Dimension-mm | φ29.4*155 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar antennas
P/N | GL-DYG860 | GL-DY859 | GL-DYG861 |
Gain | 2.5-3 | 5.0 | 6.0 |
V.S.W.R. | 2.5 | 2.0 | 1.5 |
Product Introduction
1. Strong Magnetic Base for Easy Installation
A built-in, powerful magnet securely attaches to any metal surface without drilling or tools, making it ideal for quick installation on vehicles, machinery, or in outdoor environments.
2. Low Standing Wave Ratio for Stable Signal Transmission
A standing wave ratio (VSWR) below 2.5 effectively reduces signal loss and improves transmission efficiency, meeting demanding applications such as remote control and data transmission.
3. Rugged and Durable for Harsh Environments
With an operating temperature range of -40°C to 85°C and a maximum humidity of 95%, it operates reliably in harsh conditions such as rain, dust, and extreme weather.
4. High Gain Performance for Enhanced Signal Coverage
A gain of 2.5-3 dBi effectively improves signal strength and coverage, making it ideal for IoT, smart home, and industrial automation systems.
5. Environmentally Friendly and ROHS Compliant
Made of environmentally friendly materials, this product complies with ROHS standards and is free of hazardous substances, meeting the safety and sustainability requirements of modern applications.
Application Scenarios
Industrial Automation: It can be attached to the metal casing of machinery and equipment for wireless monitoring and control. Outdoor IoT Sensing: Withstands harsh outdoor conditions, providing stable connectivity for agricultural or environmental monitoring sensors.
Vehicle Monitoring Systems: Its strong magnetic design allows for secure mounting on vehicle roofs or trailers, transmitting GPS and telemetry data.
Smart Home Devices: Provides stable communication support for devices such as smart alarms and garage door openers.
FAQ
Q: What is the frequency range of this antenna?
A: It supports the 423–443 MHz frequency band and is suitable for ISM band applications.
Q: Can it be used in outdoor environments?
A: Yes, its waterproof design and wide temperature tolerance (-40°C to 85°C) make it ideal for outdoor use.
Q: What is the antenna connector type?
A: It comes with a USMA male connector and a 1.5-meter RG174 cable.
Q: How strong is the magnetic attraction?
A: The magnet has strong retention and remains secure even in high-vibration environments (test conditions: 10–55 Hz, 1.5 mm amplitude).
Q: Is it compatible with my 433 MHz device?
A: It's compatible with all 433MHz communication systems with a 50Ω impedance and USMA interface.
Q: What is the antenna's gain?
A: The gain is 2.5–3 dBi, providing stable and wide signal coverage.
