GL90DP11-04RT0-A
Asialeren
8517710000
10pc
accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

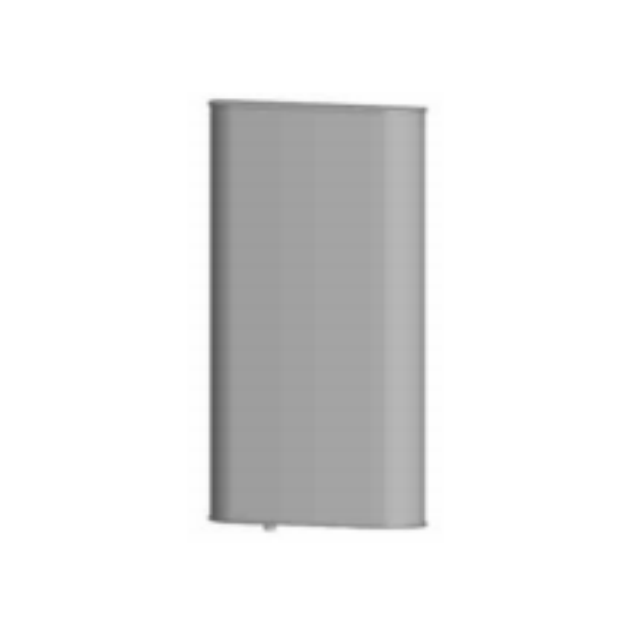

Item | Panel Antenna |
PN | GL90DP11-04RT0-A |
Frequency(Mhz) | 380-450 |
Bandwidth(MHz) | 70 |
Gain(dBi) | 11 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥22 |
F/B Ratio(dB) | ≥15 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 400 |
Dimensions(mm) | 900*300*146 |
Connector | 2*N Female |
Item | Panel Antenna |
PN | GL90DP11-04RT0-A |
Frequency(Mhz) | 380-450 |
Bandwidth(MHz) | 70 |
Gain(dBi) | 11 |
Electrical Downtil(°) | 0 |
Isolation(dB) | ≥22 |
F/B Ratio(dB) | ≥15 |
VSWR | ≤1.5 |
Nominal Impedance(Ω) | 50 |
Polarization | ±45° |
Maximum Power(W) | 400 |
Dimensions(mm) | 900*300*146 |
Connector | 2*N Female |
