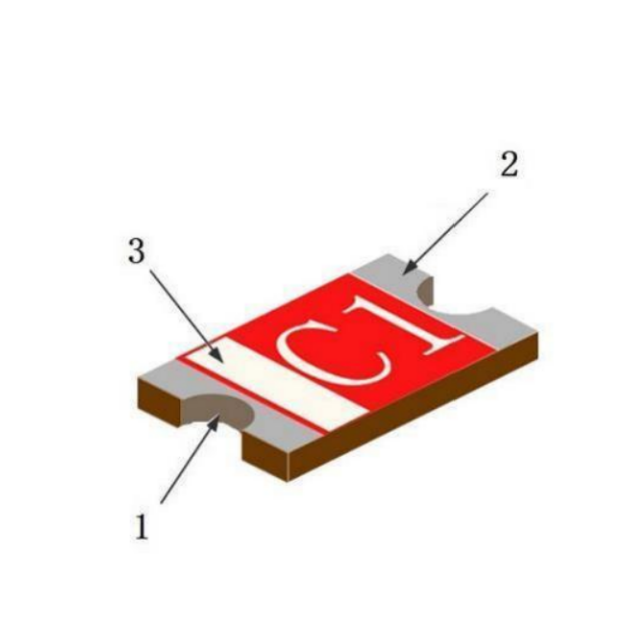

GLOA-C1 | Specification | ||
Working Frequency Range | 400MHz-960MHz | ||
Band Width | 40MHz | ||
Impedance | 50 Ω | ||
Gain(dBi) | 0.5dBi | ||
VSWR | <2 | ||
Operation Temperature | -40℃~+95℃ | ||
Power Capacity | 4W | ||
Figure | Symbol | Dimension(mm) | |
| L | 3.2±0.1 | |
w | 1.6±0.1 | ||
T | 0.4±0.05 | ||
a | 0.6±0.1 | ||
Product Introduction
① Ultra-Wide Frequency Band Coverage
Supports an ultra-wide frequency range of 400MHz to 960MHz, perfectly covering mainstream ISM bands such as 433MHz, 868MHz, and 915MHz. A single chip allows for multiple uses, reducing material management costs.
② Miniaturized SMD Design
Measuring only 3.2×1.6×0.4mm, it utilizes a standard SMD package, making it suitable for high-density PCB layouts and saving valuable space in compact devices.
③ Excellent Impedance Matching
50 ohm characteristic impedance and a VSWR <2.0 ensure optimal matching with RF front-end circuits, reducing signal reflections and improving transmission efficiency.
④ High Power Capacity
Supports input power up to 4W, far exceeding the power capacity of conventional SMD antennas and meeting the requirements of high-power transmission applications.
⑤ Industrial-Grade Temperature Adaptability
Operating temperature range: -40°C to +95°C, it meets the rigorous environmental requirements of industrial equipment and ensures stable performance even in extreme temperatures.
Application Scenarios
●IoT Smart Meters: Wireless communication for remote meter reading systems such as water, electricity, and gas meters
●Asset Tracking and Positioning: Container tracking, pet tracking, vehicle monitoring, and other positioning devices
●Industrial Wireless Sensing: Data transmission for factory automation sensors and environmental monitoring equipment
●Smart Home Devices: Wireless control for security sensors, smart door locks, remote controls, and more
Medical Monitoring Devices: Wireless data upload and monitoring for portable medical devices
FAQ
Q: What wireless communication protocols does this antenna support?
A: It supports LoRa, Sigfox, Zigbee, and various proprietary protocols, and is compatible with most IoT communication standards in the 400-960MHz frequency band.
Q: What precautions should be taken when installing the antenna?
A: Strictly follow the PCB layout recommendations provided in the datasheet. Maintain a clear area around the antenna to prevent metal objects from affecting performance.
Q: Is a matching circuit required?
A: The standard 50-ohm design is suitable for most applications. A π-type matching circuit can be added for fine-tuning in specialized applications.
Q: What is the antenna gain? A: The typical gain is 0.5dBi, making it suitable for short- to medium-range wireless communication applications.
Q: Does it support reflow soldering?
A: Yes, the standard SMD package fully supports automated placement and reflow soldering.
Q: What is the operating temperature range?
A: The operating temperature range is -40°C to +95°C, meeting the requirements of industrial applications.
