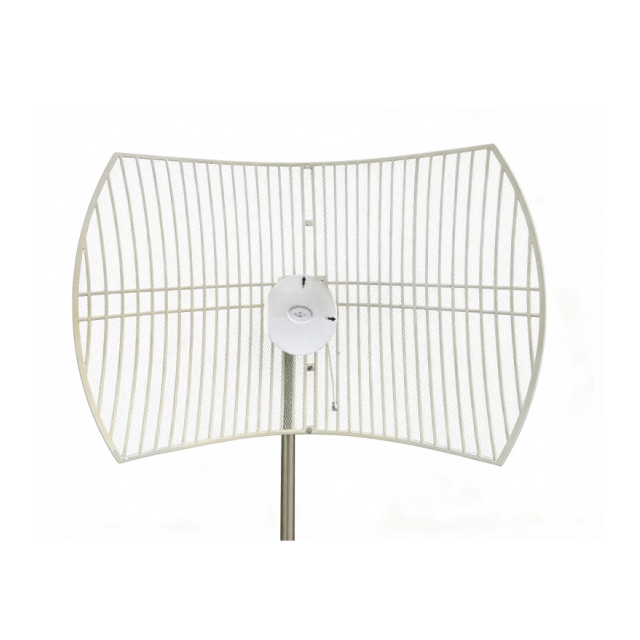

26dBi gain N Female Connector 5G Grid Parabolic Antenna

V.S.W.R

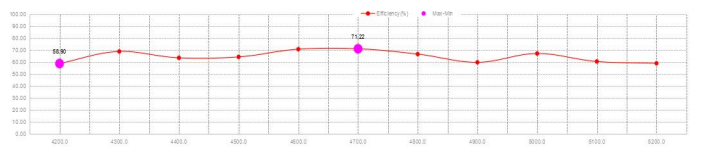

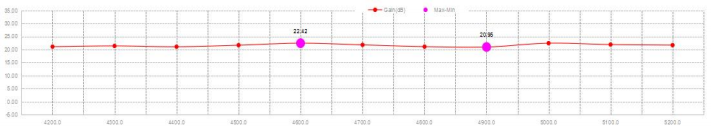

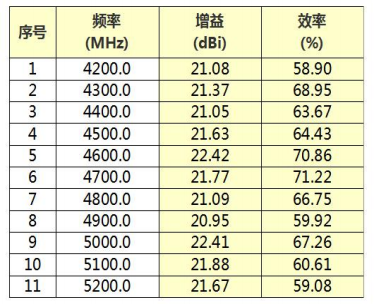

Radiation Pattern

Product introduction

1. Ultra-High Gain (26dBi) for Long-Range Transmission

Delivers powerful signal strength and extended coverage, ideal for long-distance wireless communication and bridging.

2. Narrow Beamwidth for Precision Signal Targeting

With horizontal 7° and vertical 6.5° beamwidth, the antenna ensures focused transmission and minimal signal leakage.

3. Excellent Anti-Interference Performance

High front-to-back ratio (>29dB) effectively reduces background noise, ensuring cleaner and more stable connections.

4. Rugged Outdoor Design

Constructed with aluminum alloy and wind-resistant structure, capable of withstanding harsh weather conditions (-40°C to +70°C).

5. Optimized for 5G & High-Frequency Applications

Supports 4200–5200MHz band with stable VSWR ≤2.0, ensuring efficient signal performance for modern wireless systems.

Application Scenarios

Long-distance wireless bridge connections

5G network signal extension and coverage

Rural broadband deployment

Industrial communication networks

Surveillance and video transmission systems

FAQ

Q: What frequency range does this antenna support?

A: It operates in the 4200–5200MHz band, suitable for 5G applications.

Q: What is the gain of this antenna?

A: The antenna provides a high gain of 26dBi.

Q: Is it suitable for long-distance communication?

A: Yes, the high gain and narrow beamwidth make it ideal for long-range transmission.

Q: What type of connector does it use?

A: It comes with an N Female connector.

Q: Can it be used outdoors?

A: Yes, it is designed for outdoor use with strong wind resistance and durable materials.

Q: What is the maximum input power?

A: It supports up to 100W input power.
