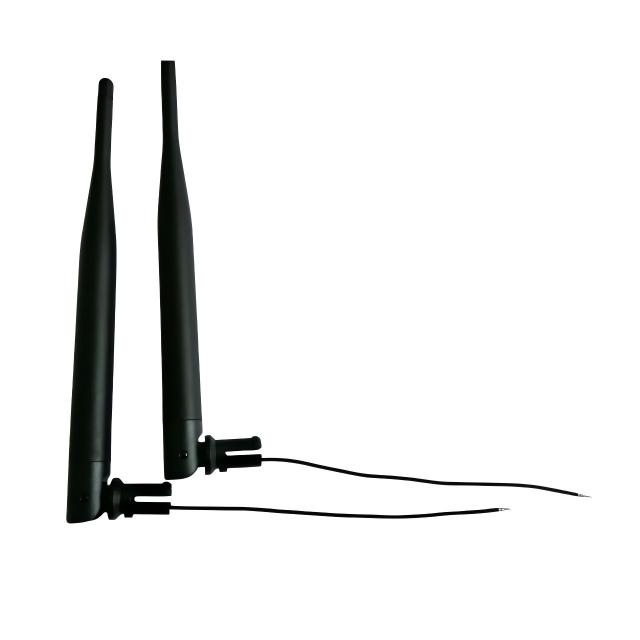

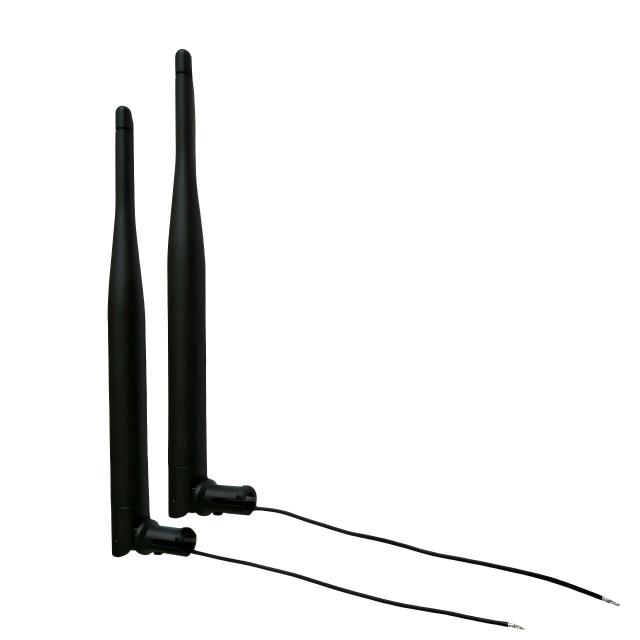

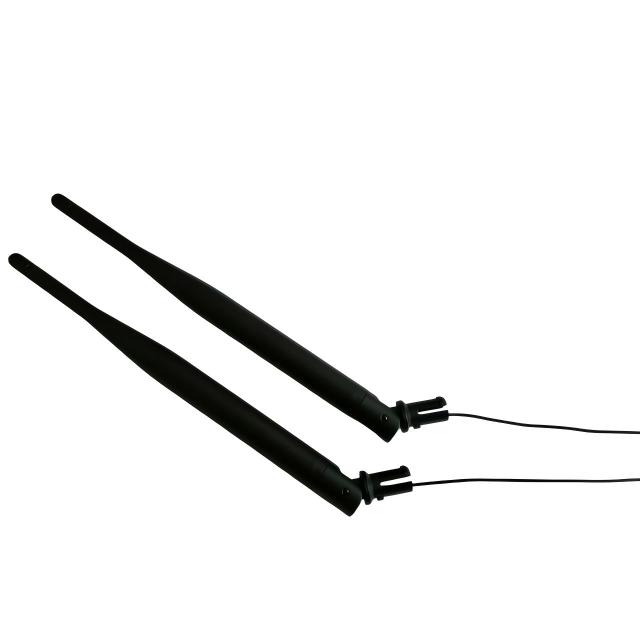

2.4GHz 5dBi Rubber Antenna with IPEX Connector

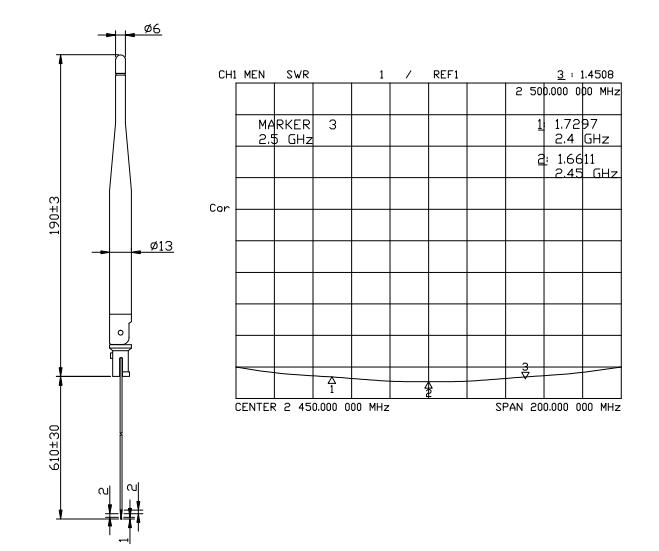

Dimension drawing

Product introduction

1. Optimized for 2.4GHz WiFi Applications

Covers 2400–2500MHz frequency band, ensuring stable and reliable performance for WiFi and IoT devices.

2. 5dBi High Gain for Strong Signal Coverage

Provides enhanced signal strength and wider coverage compared to standard low-gain antennas.

3. Omnidirectional Radiation Pattern

Delivers 360° signal transmission, ideal for consistent connectivity in all directions.

4. Compact & Flexible Rubber Design

Slim size (Ø13×190mm) with durable ABS radome, suitable for space-limited and embedded applications.

5. IPEX Connector for Easy Integration

Equipped with 1.13 cable and IPEX connector, widely compatible with wireless modules and devices.

Application scenarios

WiFi routers and wireless modules

Smart home and IoT devices

Industrial wireless equipment

Embedded communication systems

Wireless data transmission terminals

FAQ

Q：What frequency does this antenna support?

A:It Operates in the 2.4GHz band (2400–2500MHz), commonly used for WiFi and IoT applications.

Q: What is the gain of this antenna?

A:The antenna provides 5dBi gain, improving signal strength and coverage.

Q: Is this antenna omnidirectional?

A:Yes, it features an omnidirectional radiation pattern for 360-degree coverage.

Q: What connector type does it use?

A:It uses an IPEX (U.FL) connector, suitable for compact wireless modules.

Q: Can this antenna be used indoors and outdoors?

A:It is mainly designed for indoor or protected environments. For outdoor use, additional waterproofing is recommended.

Q:What devices is this antenna compatible with?

A:It is compatible with WiFi modules, IoT devices, routers, and embedded systems.
