2.4G Flat Panel Antenna 14dBi for outdoor using GL24V30-14

Product introduction

1.High 14dBi Gain – Significantly boosts 2.4GHz signal strength for long-distance wireless links. Extends WiFi range and improves throughput in outdoor or industrial environments.

2.Low VSWR ≤1.5 – Ensures minimal signal reflection and maximum power transfer from your access point or bridge. Consistent performance across the full 2400–2500MHz band.

3.Narrow 30° Beamwidth – Precision directional radiation (30° horizontal & vertical) focuses energy where needed. Reduces interference and increases link reliability for point-to-point applications.

4.Durable Outdoor Construction – White ABS radome with aluminum radiator. IP-grade protection (implied) with DC ground lightning protection. Operates from -40°C to +65°C for year-round outdoor use.

5.Easy Pole Mounting – Comes with standard pole mount bracket (N female connector). Compact 190×190×40mm size and 1.5kg weight make installation quick and secure on masts or pipes.

Application Scenarios

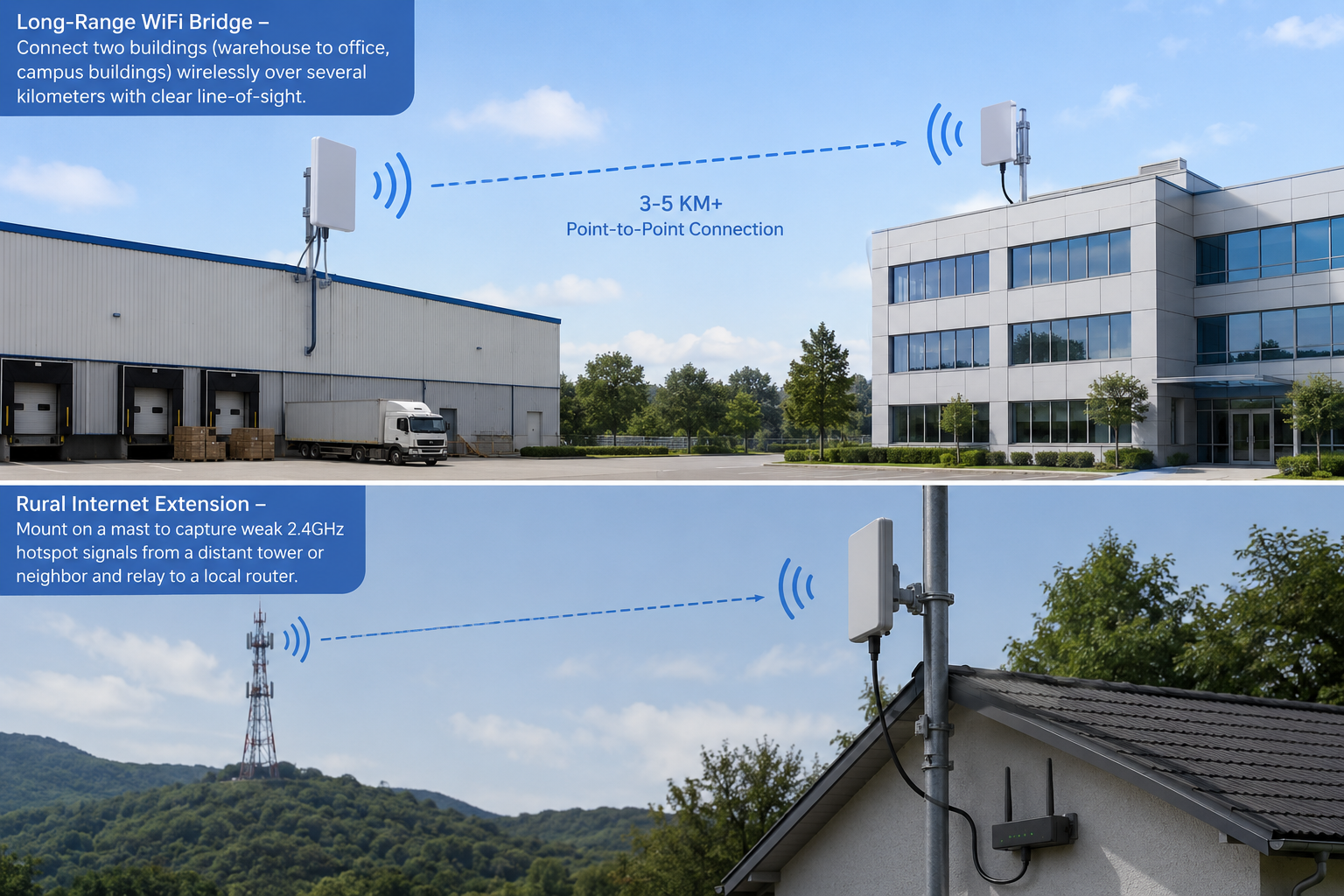

●Long-Range WiFi Bridge – Connect two buildings (warehouse to office, campus buildings) wirelessly over several kilometers with clear line-of-sight.

●Rural Internet Extension – Mount on a mast to capture weak 2.4GHz hotspot signals from a distant tower or neighbor and relay to a local router.

●Anti jamming antenna & Anti jamming antenna Telemetry – Used as a ground station antenna for 2.4GHz control and video downlink, providing high gain and directional tracking.

●Industrial Wireless Sensor Networks – Deploy in factories or farms where sensors use 2.4GHz (Zigbee, WiFi) and need a central directional collector.

●Public WiFi Hotspot Backhaul – Install on light poles or rooftops to create point-to-point links for city-wide free WiFi coverage.

FAQ

Q: What frequency range does the GL24V30-14 cover?

A: It covers 2400–2500MHz, perfectly matching 2.4GHz WiFi (802.11b/g/n/ax), Zigbee, Bluetooth long-range applications, and many industrial ISM band devices.

Q: What is the gain and beamwidth?

A: The antenna provides 14dBi gain with a 30° horizontal and 30° vertical beamwidth, making it ideal for focused point-to-point links.

Q: What connector type is used?

A: It comes with an N female connector, standard for high-power outdoor RF equipment. You can attach an N male to RP-SMA or SMA pigtail if needed.

Q: Can I use this antenna outdoors?

A: Yes. The radome is made of weather-resistant ABS, operating temperature -40°C to +65°C, with DC ground lightning protection. However, ensure the mounting pole and connectors are also weather-sealed.

Q: How do I mount this antenna?

A: It is designed for pole mounting (hardware included). The compact 190×190×40mm size and 1.5kg weight allow easy attachment to vertical or horizontal masts.

Q: What is the maximum input power?

A: The antenna supports up to 50W of RF power, suitable for outdoor access points, bridges, and amplifiers without risk of damage.
