GL-DY30A
GLOBAL
8517710000
10pcs
Accepted
1000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
HF Antenna | |
GL-DY30A | |
Electrical Index | |
Frequency-MHz | 2-30 |
Bandwidth-MHz | Full Band |
Gain-dBi | 2.15 |
VSWR | ≤ 2.0 (2~18MHz) ≤ 3.0 (18~30MHz) |
Nominal Impedance-Ω | 50 |
Polarization | Horizontal |
Maximum Power-W | 150 |
Length-m | 25 |
Weight-kg | 2.5 |
Rated Wind Velocity-m/s | 60 |
Connector | UHF female |

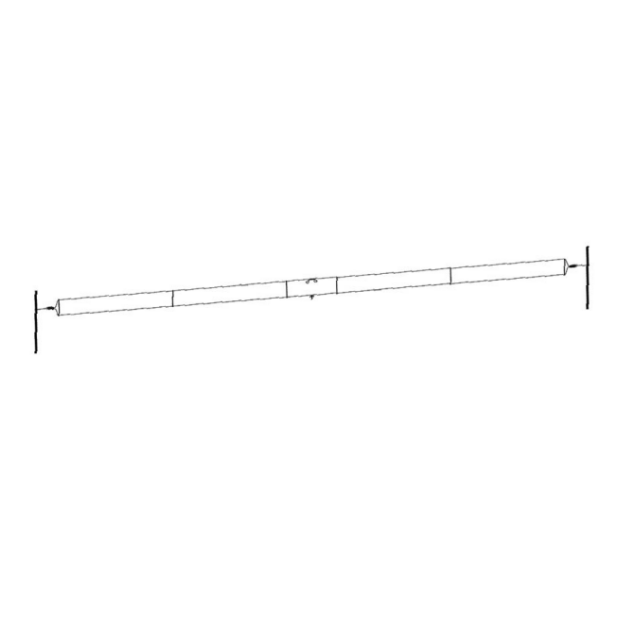

Remarks | Horizontal dipole |
Operates at 1085-1095MHz with 10MHz bandwidth, optimized for targeted omni-directional communication.
6dBi gain + 360° horizontal beamwidth ensures wide coverage and stable signal reception.
VSWR ≤1.5 & 50Ω nominal impedance guarantee efficient signal matching and minimal loss.
Compact lightweight design: 62cm length + 0.3kg weight, easy to install and transport.
N female connector + fits 40-50mm mast diameters, compatible with standard professional setups.
Application Scenarios
Small-to-medium base stations (campuses, industrial parks) requiring focused omni-directional coverage.
Portable communication hubs for events, temporary work sites, or emergency response.
Amateur radio setups for hobbyists seeking compact, high-performance fiberglass antennas.
IoT infrastructure (smart communities, environmental monitoring) needing stable short-to-medium range connectivity.
Marine/vehicle-mounted base stations (ships, RV parks) for reliable on-site signal propagation
FAQ
Q: What frequency range does the GL-DY1000AT6 cover?
A: It supports 1085-1095MHz with a 10MHz bandwidth, ideal for targeted omni-directional communication.
Q: What is the gain of this omni fiberglass antenna?
A: It has a 6dBi gain, balancing coverage and efficiency for medium-range signal needs.
Q: What mast diameter is compatible with this antenna?
A: It fits masts of 40-50mm diameter, suitable for standard professional installation.
Q: How lightweight and compact is this antenna?
A: Only 0.3kg in weight and 62cm in length—easy to carry and install without heavy tools.
Q: What maximum power can this antenna handle?
A: It supports up to 100W maximum power, reliable for long-term continuous use.
Q: What connector type does it use?
A: It features an N female connector, compatible with most professional communication devices.
