GL-DY1000
Asialeren
8517710000
100pcs
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

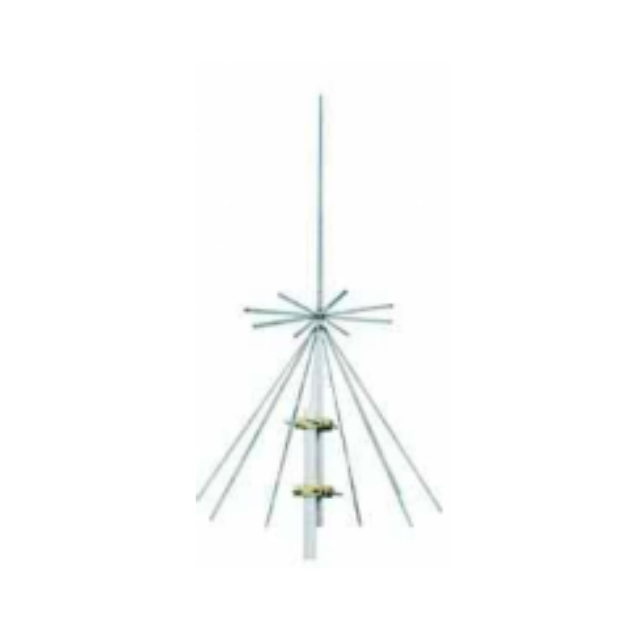

Ultra Wideband Antenna | |
GL-DY1000 | |
Electrical Index | |
Frequency-MHz | 100-1000 |
Bandwidth-MHz | 900 |
Gain-dBi | 1-3.5 |
VSWR | ≤2.0 |
Nominal Impedance- Ω | 50 |
Polarization | Vertical |
Maximum Power-W | 150 |
Length-m | (Height)1.8 (Max.Diameter) 0.9 |
Weight-kg | 1 |
Rated Wind Velocity-m/s | 60 |
Connector | N female or Customization |
Remarks | Discone antennas |
Ultra-wide 100-1000MHz frequency range with 900MHz bandwidth, covering multi-band communication needs.
1-3.5dBi gain + vertical polarization ensures stable signal propagation across broad frequency bands.
VSWR ≤2.0 & 50Ω nominal impedance guarantee efficient signal matching and low transmission loss.
Supports up to 150W maximum power, durable for high-performance long-term use.
N female connector (customizable) & discone design, suitable for professional installation and deployment.
Application Scenarios
Professional radio communication stations (emergency services, public safety) requiring multi-band coverage.
Amateur radio setups for hobbyists exploring wide frequency range transmission/reception.
Industrial monitoring systems (factory, power grid) needing stable connectivity across diverse bands.
Outdoor base stations (rural areas, remote sites) for comprehensive signal coverage.
Security & surveillance equipment (wireless cameras, sensors) relying on reliable wideband communication.
FAQ
Q: What frequency range does the GL-DY1000 antenna cover?
A: It supports 100-1000MHz with a 900MHz bandwidth, ideal for ultra-wideband communication.
Q: What connector options are available?
A: Standard N female connector, with customization available to match specific devices.
Q: What is the maximum power this antenna can handle?
A: It supports up to 150W maximum power, suitable for high-performance professional use.
Q: What type of antenna is the GL-DY1000?
A: It’s a discone antenna, optimized for ultra-wideband coverage and stable signal performance.
Q: What is the size of this ultra-wideband antenna?
A: 1.8m in height (length) and 0.9m in max diameter, designed for professional deployment.
Q: What is the nominal impedance of the GL-DY1000?
A: The nominal impedance is 50Ω, ensuring compatibility with most professional communication devices.
