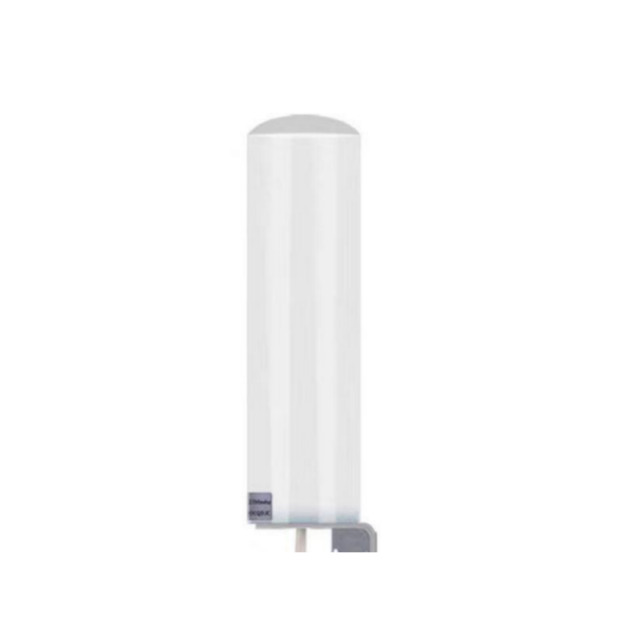

GL066
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | ||
GPSGlonass Antenna | Dielectric
Antenna | Frequency Range | 1559.052~ 1602MHz 1164~ 1259MHz |
Polarization | RHCP | ||
Gain | 3dBic（Zenith） | ||
V.S.W.R | <1.5 | ||
Impedance | 50Ω | ||
LNA | Gain | 28±2dB | |
Noise Figure | <2dB | ||
V.S.W.R | <2.0 | ||
Supply Voltage | 3.3~12V DC | ||
Current Consumption | <20mA | ||
LTE Antenna | Frequency Range | 698~960MHz/1710~2690MHz | |
V.S.W.R | <3.0 | ||
Polarization | Linear | ||
Gain | 2.5dBi | ||
Impedance | 50Ω | ||
Mechanical | Cable | LMR195,10m | |
Connector | SMA male | ||
Material | ABS | ||
| L/U clap | ||
Dimension-mm | 60*230 | ||
Environmental | Operating Temperature | -40℃~+85℃ | |
Relative Humidity | Up to 95% | ||
Ingress Protection | IP67 (exclude cable outlet) | ||
Environmentally Friendly | ROHS Compliant | ||
Product Introduction
1. Dual-Mode Integration, Multi-Scenario Adaptation: Integrates GPS/GNSS and LTE/GSM dual functions. GPS/GNSS supports the 1559.052-1602MHz and 1164-1259MHz frequency bands, while LTE/GSM covers the 698-960MHz and 1710-2690MHz frequency bands. This allows for simultaneous positioning and wireless communication, eliminating the need for separate antennas and simplifying device structure.
2. High-Precision Positioning and Stable Communication: The GPS/GNSS antenna utilizes RHCP polarization, achieving a zenith gain of 3dBic and a VSWR of <1.5. It is paired with a 28±2dB high-gain low-noise amplifier (noise figure <2dB) to ensure high-precision positioning. The LTE antenna boasts a gain of 2.5dBi, stable signal transmission, and compatibility with multiple carrier networks.
3. Flexible Installation and Wide Compatibility: Supports L/U clamp mounting for quick attachment to structures such as brackets and poles. A variety of connector options are available, including SMA, MCX, and MMCX. The 10m LMR195 cable accommodates various installation distances and is compatible with a wide range of terminal devices.
4. Strong Environmental Resistance: Constructed of ABS, it boasts an IP67 dust and water resistance rating (excluding the cable outlet), operates stably in a wide operating temperature range of -40°C to +85°C and 95% humidity. It also complies with ROHS environmental standards, making it suitable for harsh outdoor and industrial environments.
5. Low Power Consumption and High Reliability: The GPS/GNSS module operates from 3.3V DC to 12V DC and consumes less than 20mA. This low power design extends device battery life. Excellent overall signal transmission performance (GPS/GNSS LNA VSWR <2.0, LTE VSWR <3.0) ensures long-term stable operation.
Fleet Management: Real-time tracking with LTE and GNSS synchronization.
Precision Agriculture: Combines GPS for autonomous tractors and LTE for data transmission.
Industrial IoT: Reliable dual-band connectivity for remote sensors.
Marine Navigation: Weatherproof design for boats and ships.
Emergency Systems: Backup LTE communication with GNSS positioning.
