GL-DY003
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
4G Screw Antenna | |
GL-DY003-4G | |
Electrical Index | |
Frequency-MHz | 698-960/1710-2690 |
VSWR | ＜1.5 |
Nominal Impedance -Ω | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length-mm | |
Connector | SMA male |

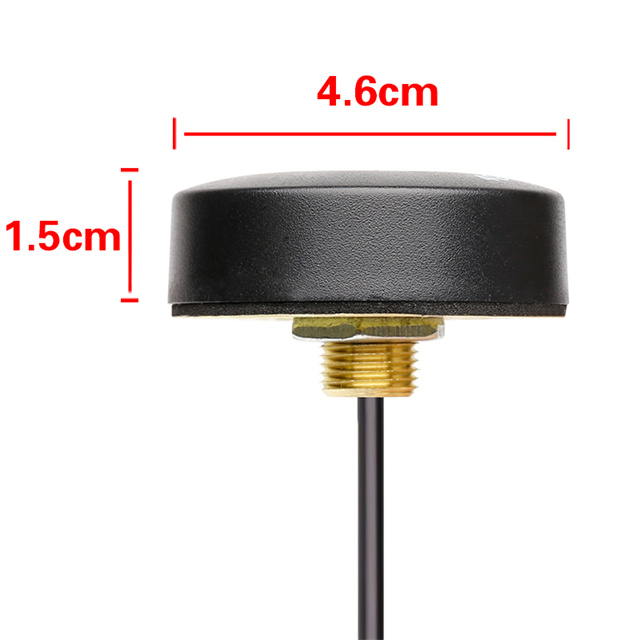

Antenna Dimension-mm | φ46.6*14.5 |
Installation Way | Screw |
Ingress Protection | IP65~IP67(exclude cable outlet) |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Dual-Band 4G/LTE Coverage (698-960MHz & 1710-2690MHz)
Supports global 4G bands, ensuring seamless connectivity for IoT, M2M, and mobile networks.
IP67 Protection for Harsh Environments
Waterproof and dustproof design (excluding cable outlet), ideal for outdoor and industrial deployments.
Extreme Durability
Vibration-tested (10-55Hz for 2 hours) and operates in temperatures from -40°C to +85°C, built for rugged use.
Quick & Secure Installation
Screw-mount design ensures stable fixation on surfaces, perfect for fixed installations like traffic systems or machinery.
Certified & Customizable
ROHS compliant with options for custom cable lengths, connectors, and branding (OEM/ODM services).
Application scenarios
Industrial IoT: Connects sensors and equipment in factories.
Smart City Infrastructure: Powers public Wi-Fi, surveillance, and traffic systems.
Outdoor 4G Networks: Deployed in weather-exposed areas like remote monitoring stations.
Fleet Tracking: Provides reliable connectivity for vehicle telematics.
Agricultural Monitoring: Ensures stable data transmission in rural environments.
FAQ:
Q: Is this antenna compatible with all 4G bands?
A: Yes, it covers 698-960MHz and 1710-2690MHz, supporting most global LTE frequencies.
Q: Can it withstand heavy rain or dust?
A: Yes, IP67 rating ensures protection against water and dust (cable outlet requires additional sealing).
Q: What’s the standard cable length?
A: 2500mm RG174 cable; custom lengths are available upon request.
Q: How is the antenna installed?
A: Use the screw-mount design for secure attachment to surfaces—no specialized tools needed.
Q: Are other connectors available besides SMA male?
A: Yes, contact us for customization.
Q: What’s the operating temperature range?
A: -40°C to +85°C, tested for extreme conditions.
Q: Is it compliant with environmental standards?
A: Yes, ROHS certified and free of hazardous substances.
Q: Can I order bulk quantities with modifications?
A: Absolutely! We offer OEM/ODM services for connectors, cables, and branding.
