English
GL088
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Properties | |
Frequency | 704-880;960-1710;1880-1990;2100-2700MHz |
Impedance | 50 0hm Nominal |
VSWR | 3.0MAX |
GAIN | 3.5DBI |
Power max. | 10V |
Connector | SMA PLUG |
Antenna installation method: | 1. 3M adhesive 2. Lock screw |
Physical Properties | |
Antenna Material | Antenna Cover : Tpe Antenna Base : ABS |
Cable Type | RG-174 CABLE |
Dimension-mm | ⊘90*30 |
Connector | SMA male |
Operating Temp. |
|
Storage Temp. | +45 ~ +85 。C |
Cable Color | BLACK |

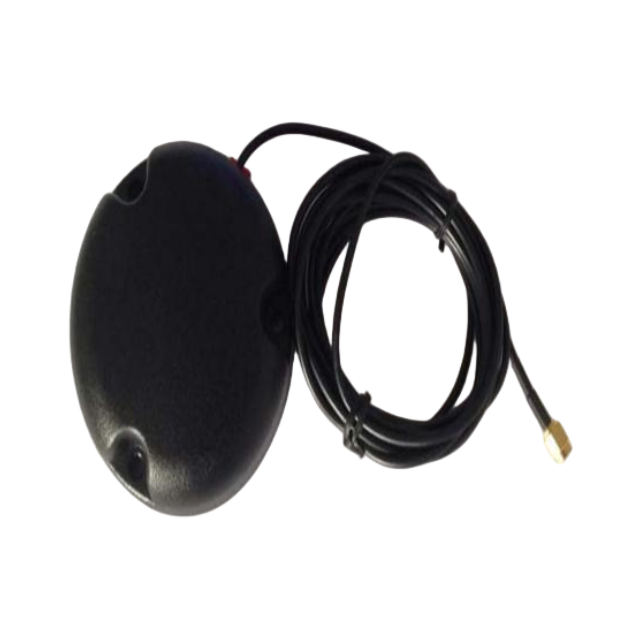

Product Introduction
Universal 4G Band Coverage
Supports 704-880MHz + 960-2700MHz – compatible with global LTE bands (B12/B13/B5/B3/B7/B1/B25) for seamless roaming.
Flexible Dual Mounting System
Strong magnet base + 3M adhesive options enable quick installation on vehicles, metal surfaces, or equipment enclosures.
Industrial-Grade Durability
TPE radome and ABS base withstand extreme temperatures (-40°C to +85°C) and vibrations – ideal for harsh mobile/outdoor use.
Extended Reach Connectivity
3-meter RG174 cable with SMA male connector provides placement flexibility for routers, trackers, and IoT gateways.
Cost-Effective Solution
3.5dBi gain and ≤3.0 VSWR balance performance and affordability for high-volume deployments.
Vehicle Telematics: Fleet tracking on trucks/vans
Mobile Routers: Backup internet for RVs/boats
Industrial IoT: Remote monitoring on metal machinery
Temporary Sites: Pop-up kiosks/construction site connectivity
Agricultural Equipment: Tractors and harvesters in remote fields
Q: What's the magnet's holding strength?
A: Designed for secure attachment on curved metal surfaces (e.g., car roofs) at speeds up to 80mph.
Q: Can I use this for 5G networks?
A: No – optimized for 4G/LTE bands below 2700MHz (supports Cat-M1/NB-IoT).
Q: Is the cable waterproof?
A: RG174 cable has basic weather resistance; use cable glands for permanent outdoor installations.
Q: Power handling capacity?
A: Supports up to 10W transmission power – suitable for most cellular routers.
Q: Why choose TPE radome?
A: TPE offers UV resistance and flexibility vs. rigid plastics, preventing cracking in cold temps.
Q: SMA male vs. female compatibility?
A: Directly connects to female SMA ports (common on routers). Use adapter for male device ports.
Q: VSWR ≤3.0 – is signal loss significant?
A: Acceptable for non-critical applications (~30% reflected power); ideal for cost-sensitive deployments.
Q: Storage temperature limits?
A: Store at +45°C to +85°C – avoid prolonged exposure beyond this range.
