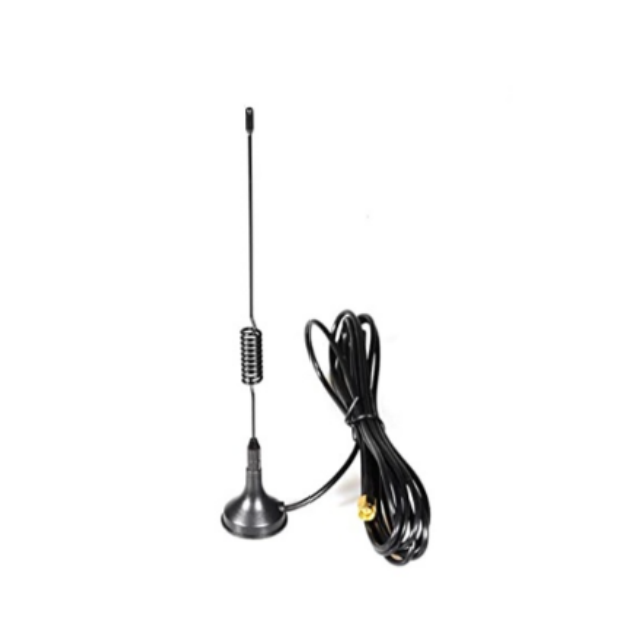

3G Magnet Antenna | |
GL-DYG821 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170 |
VSWR | ＜1.5 |
Gain-dBi | 3 |
Normal Impedance-Ω | 50 |
Polarization | RHCP |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | |
Antenna Dimension-mm | 29.4*223 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Wide-band 3G Compatibility
Supports 824-960/1710-2170MHz frequency ranges, ensuring global compatibility with 3G networks (WCDMA/GSM) in North America, Europe, and Asia.
Optimized Signal Performance
Delivers 3dBi gain with VSWR < 1.5, minimizing signal loss and interference for clear voice and data transmission.
Magnetic Mount for Easy Installation
Features a strong magnetic base for tool-free mounting on metal surfaces, ideal for vehicles, equipment, or temporary setups that require mobility .
Durable & Rugged Design
Withstands -40℃ to +85℃ temperatures and 5-95% humidity, suitable for outdoor use in harsh environments .
ROHS Compliant & High-quality Cable
Comes with a 3m RG174 cable and SMA male connector, ensuring stable signal transmission while meeting environmental standards .
Vehicle-mounted 3G Communications
Mounted on trucks, buses, or emergency vehicles for real-time tracking and communication, leveraging the magnetic base for quick installation .
Mobile Temporary Base Stations
Used in events or disaster areas to set up temporary 3G networks, providing instant connectivity for smartphones and tablets.
Industrial IoT Monitoring
Deployed on industrial machinery in remote areas to transmit sensor data via 3G networks, ensuring reliable connectivity in low-signal environments .
Marine & Offshore Communications
Installed on boats or offshore platforms, withstanding harsh marine conditions while maintaining stable 3G connectivity .
Portable Device Boosters
Connected to portable hotspots or routers to enhance 3G signals in areas with weak coverage, such as rural regions or underground facilities.
Q:What frequency bands does GL-DYG821 support?
A:The antenna supports 824-960MHz and 1710-2170MHz, compatible with global 3G networks.
Q:What is the gain and VSWR?
A:It provides 3dBi gain with VSWR less than 1.5 for efficient signal transmission.
Q:How is the antenna installed?
A:It uses a magnetic mount for easy installation on metal surfaces without tools.
Q:What is the cable length and type?
A:The antenna comes with a 3m RG174 cable and an SMA male connector.
Q:What is the operating temperature range?
A:It operates from -40℃ to +85℃, suitable for extreme weather conditions.
Q:Is the antenna environmentally friendly?
A:Yes, it is ROHS compliant, meeting strict environmental protection standards.
Q:What is the polarization type?
A:The antenna uses right-hand circular polarization (RHCP) for reduced interference .
Q:What is the size of the antenna?
A:It measures 29.4*223mm, designed for compact and versatile mounting.
