GL6608
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Passive antenna index | |||
Work Frequency-MHz | GPS L1/ L2/ L5 | GLONASS G1/G2 | Compass B1/ B2 |
Peak Gain-dBi | L1≥2.0 L5≥1.0 L≥1.0 | G1≥0 G2≥3 | B1≥0.5 B2≥0 |
Polarization | RHCP | ||
Horizontal Coverage angle 。 | 360 | ||
Output Impedance | 50ohms | ||
Output VSWR | ≤2.0 | ||
Peak axial ratio-dB | ≤3.0 | ||
Work environment | |||
Work temperature | -45℃~+70℃ | ||
Storage Temperature | -55℃~+85℃ | ||
Humidity | 95% non-freezing | ||
Waterproof | IP67 | ||
Mechanical character | |||

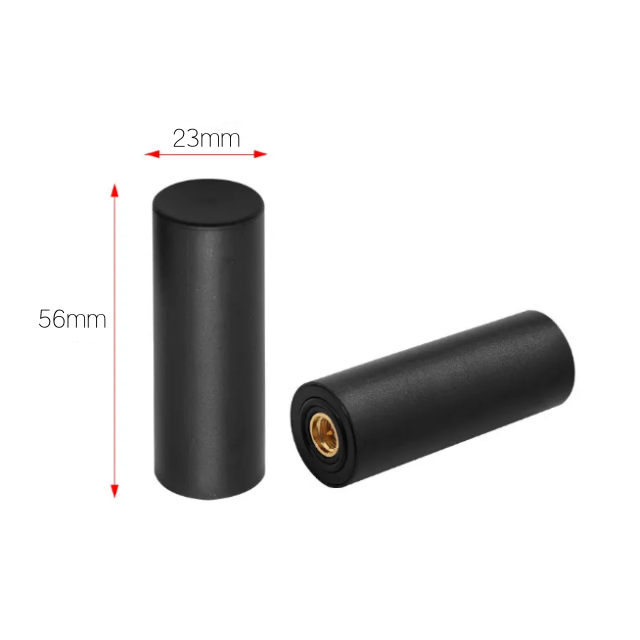

Antenna dimension-mm | Φ23*56 | ||
Connector | SMA male | ||
Weight-g | ≤20 | ||
Product Introduction
1. Multi-system, Multi-band Compatibility: Supports GPS (L1/L2/L5), GLONASS (G1/G2), and BeiDou (B2/B3) satellite systems and multi-band signal reception, meeting multi-system compatibility and high-precision measurement requirements, and adapting to satellite navigation scenarios in different regions.
2. Ultra-lightweight and Easy to Install: With a total weight of ≤20g, it is suitable for weight-sensitive devices such as drones, handheld devices, and wearables, significantly reducing the load. Signal transmission is via a standard SMA male connector, eliminating the need for additional mounting holes, making installation convenient and efficient.
3. Excellent Omnidirectional Radiation Performance: Utilizing a four-arm helical structure, it offers superior low-elevation-angle gain compared to traditional microstrip antennas and features wide-angle circular polarization. This allows it to receive more satellite signals at low elevation angles, improving positioning stability.
4. Harsh Environment Resistance: The fully sealed structure meets IP67 dust and water resistance standards, with an operating temperature range of -45°C to +70°C and a storage temperature of -55°C to +85°C. It can also operate in non-freezing humidity environments up to 95%, making it suitable for complex outdoor scenarios.
5. Stable Signal Transmission: Output impedance is 50Ω, output VSWR ≤ 2.0, peak axial ratio ≤ 3.0dB, low signal return loss, and excellent polarization characteristics ensure efficient and stable transmission of satellite navigation signals, facilitating high-precision positioning.
Application scenarios
Drones/UAVs: Ensures stable navigation for aerial mapping and precision agriculture.
Handheld GPS Devices: Enhances accuracy for hiking, surveying, and military operations.
Wearable Tech: Lightweight integration for sports/fitness trackers.
Marine & Automotive: Reliable signal reception in harsh environments.
High-Precision Surveying: Supports RTK and differential GPS applications.
FAQ
Q: What navigation systems does GL6608 support?
A: It covers GPS (L1/L2/L5), GLONASS (G1/G2), Galileo, and Compass (B1/B2/B3).
Q: Is this antenna waterproof?
A: Yes, it’s IP67-rated for waterproof and dustproof performance.
Q: What’s the weight of the antenna?
A: Only ≤20g, optimized for lightweight applications.
Q: Can it be used for drone navigation?
A: Absolutely! Its low weight and high precision make it ideal for UAVs.
Q: What connector type does it use?
A: Standard SMA male connector for easy integration.
Q: What’s the operating temperature range?
A: -45°C to +70°C, suitable for extreme environments.
Q: Does it support omnidirectional signal reception?
A: Yes, its helical design ensures 360° coverage with stable gain.
Q: Can I customize this antenna?
A: Yes, the manufacturer accepts OEM/ODM requests
