English

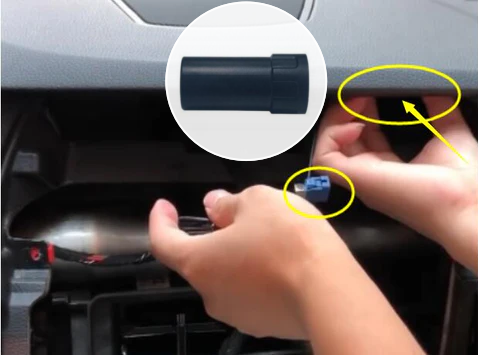

GL301JC
Asialeren
8517710000
100PC
accepted
1000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Characteristics | |||
Antenna | |||
Antenna | 1 | Antenna model | GPS Compass GLONASS GALILEO |
2 | Nominal frequency | GPS L1：1575.42±1.023MHz， L2: 1227±1.023MHz； L5 :1176±1.023MHZ Compass B1：1561±2.046 MHz， B2：1207±2.046MHz， B3：1268±10.23MHz； GLONASS L1=1602+0.5625*k(MHz)， L2=1246+0.4375*k(MHz) GALILEO E1: 1575.42 | |
3 | Frequency Range | 1197-1278/ 1559-1612MHz | |
4 | V.S.W.R | ≤2 .0 | |
5 | Axial Ratio | elevation 90 ° :≤3 ， elevation 15 °:≤5 | |
6 | Gain | elevation 90 °： ≥6 ， elevation 20 °： ≥0 plane | |
7 | Front to back Power | ±60° ≥15dB | |
8 | Phase center（ mm） | <2 | |
9 | Impedance | 50Ω | |
10 | Polarization | RHCP | |
LNA | 1 | LNA Gain | 38±2dB |
2 | V.S.W.R | <2 | |
3 | Noise Figure | <1.0 | |
4 | DC Voltage | 3.3～12V | |
5 | Current | 25～40 mA | |
Product Introduction
Multi-System & Multi-Frequency Support
Compatible with GPS (L1/L2/L5), GLONASS, Galileo, and COMPASS (B2/B3), ensuring global signal coverage and adaptability for high-precision applications like UAV guidance and RTK surveying.
Advanced Spiral Design with Air Medium
Utilizes multi-arm spiral technology and air dielectric for high gain, stable phase center (<2mm error), and superior low-elevation satellite signal reception, ideal for obstructed environments.
Robust Durability
Features triple protective covers and IP67-rated construction, safeguarding against dust, water, and extreme weather conditions during fieldwork.
Low Noise & High Gain LNA
Integrated LNA with 38±2dB gain and <1.0dB noise figure enhances signal clarity, critical for precision tasks in remote or interference-prone areas.
Flexible Power & Customization
Operates on 3.3~12V DC with low current consumption (25~40mA), compatible with portable devices. Supports customization for specialized applications.
Application scenarios
UAV Navigation: Ensures centimeter-level accuracy for aerial mapping and drone-based inspections.
Portable RTK Surveying: Ideal for land surveyors requiring lightweight, high-precision equipment.
Disaster Response: Monitors terrain shifts in earthquake or landslide zones.
Precision Agriculture: Guides autonomous machinery for crop management.
Urban Infrastructure Mapping: Updates GIS databases with high-resolution data.
FAQ
Q:Is this antenna compatible with all GNSS systems?
A:Yes, it supports GPS, GLONASS, Galileo, and COMPASS (B2/B3).
Q:How does the air medium improve performance?
A:Reduces signal loss and enhances gain stability, especially for low-elevation satellites.
Q:Can it withstand heavy rain or dust?
A:Yes, the IP67 rating ensures protection against water and dust ingress.
Q:What power supply is required?
A:Operates on 3.3~12V DC, compatible with most portable batteries and field equipment.
Q:Is calibration needed for phase center accuracy?
A:Minimal calibration required due to <2mm phase center stability.
Q:Is it suitable for Arctic environments?
A:Designed for harsh conditions but confirm temperature specs with the manufacturer.
Q:How to reduce signal interference?
A:RHCP polarization and front-to-back ratio ≥15dB minimize multipath effects.
