GL-DY4021
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |

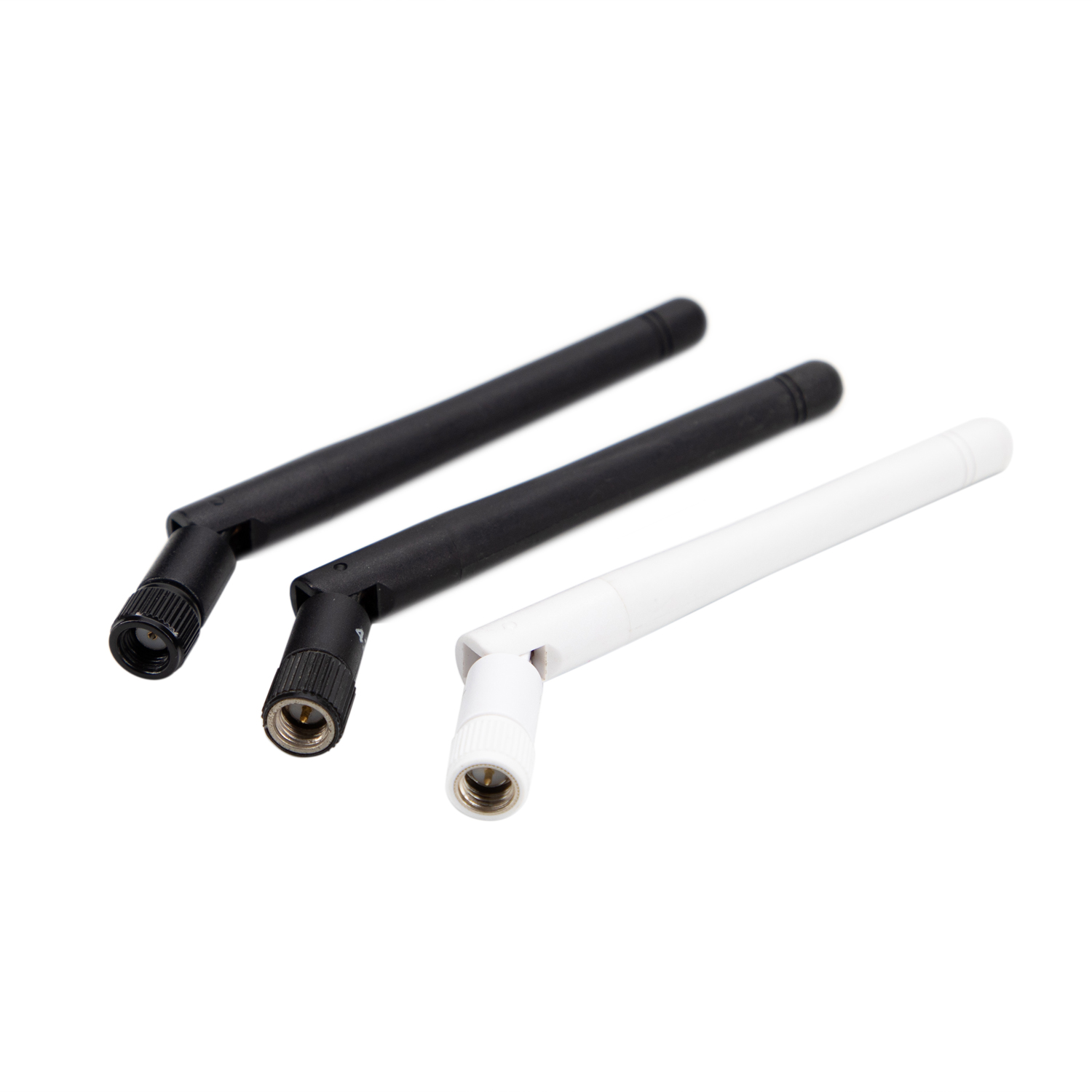

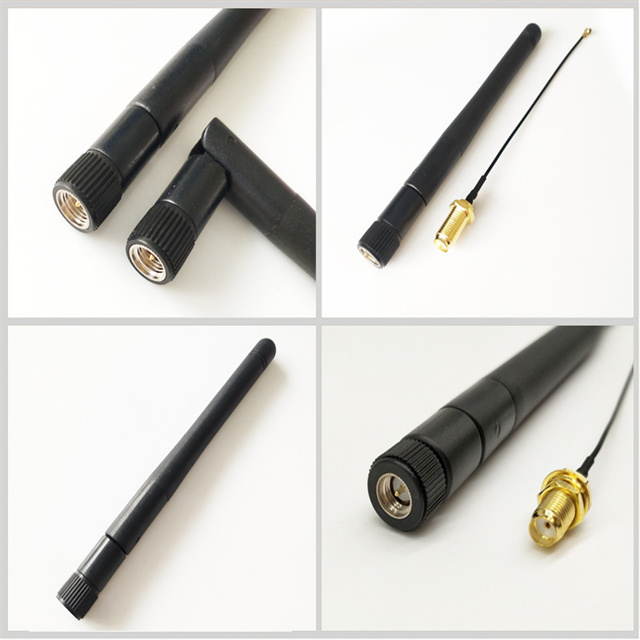

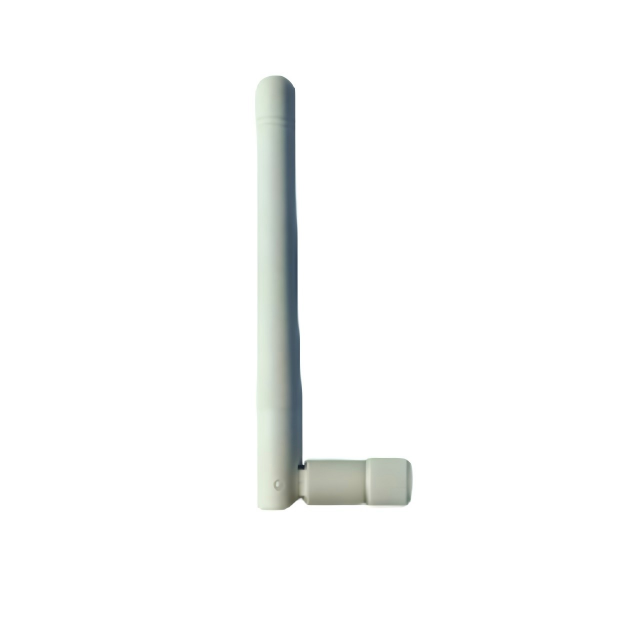

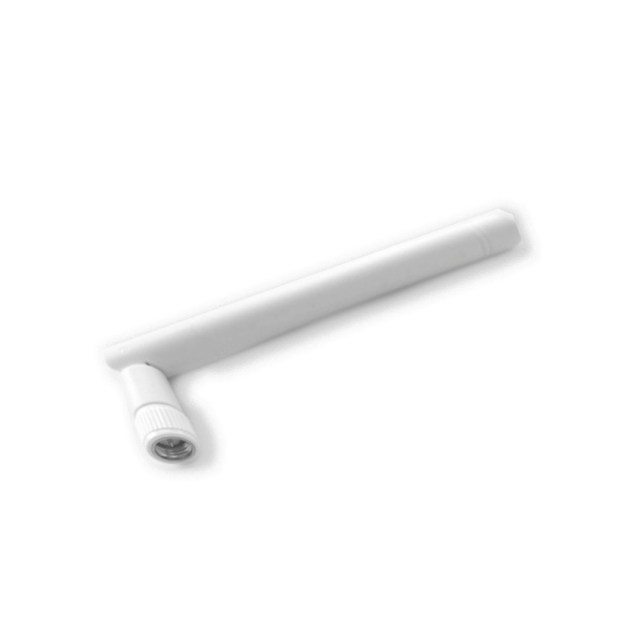

WiFi Rubber Antenna | |
GL-DY4021 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-1990 |
Gain-dBi | 2.5 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA male |
Antenna Dimension-mm | Ø10*108.5 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY4021 | GL-DY418 | GL-DY431 |
| Frequency range-mhz | 824-960/1710-1990 | 824-960 | 698-960/1710-2700 |
| Gain-dBi | 2.5 | 3 | 5 |
| Antenna Dimension-mm | Ø10*108.5 | Ø12.5*110 | Ø26.5*220 |

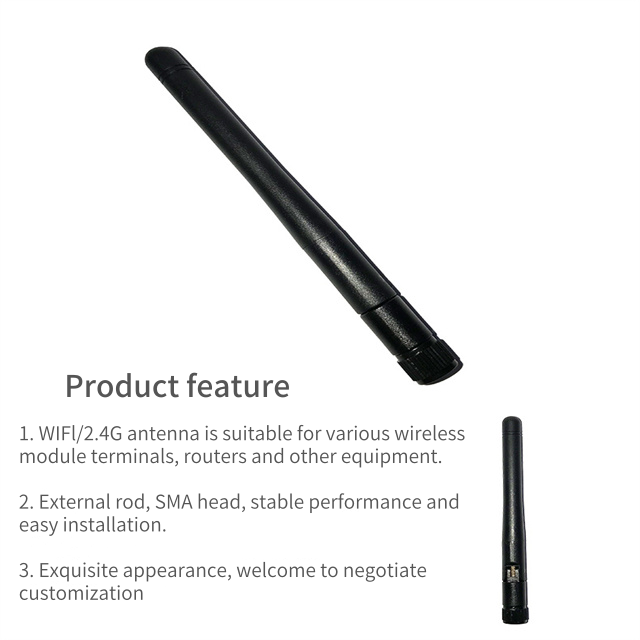

Product Introduction
1. Wideband Dual-Band Coverage
Supports dual frequency bands of 824-960MHz and 1710-1990MHz, compatible with a variety of wireless communication standards, including 2G/3G/4G and some WiFi bands, with strong compatibility.
2. Flexible Rubber Construction, Durable and Portable
Constructed of a flexible, drop-resistant rubber material, measuring only Ø10×108.5mm, it is lightweight, flexible, and damage-resistant, making it suitable for mobile devices and compact spaces.
3. Stable Signal Gain and Low VSWR
Gain of 2.5dBi, VSWR <2.0, and 50Ω impedance ensure stable signal transmission, reduce energy loss, and improve communication quality.
4. Wide Environmental Adaptability
Operating temperature range -40°C to +85°C, humidity 5%-95%, suitable for use indoors and outdoors, meeting the needs of various harsh environments.
5. Environmental Compliance, Universal Interface
Compliant with ROHS standards, equipped with an SMA male connector, it is compatible with most wireless routers, CPE, surveillance equipment, and IoT terminals.

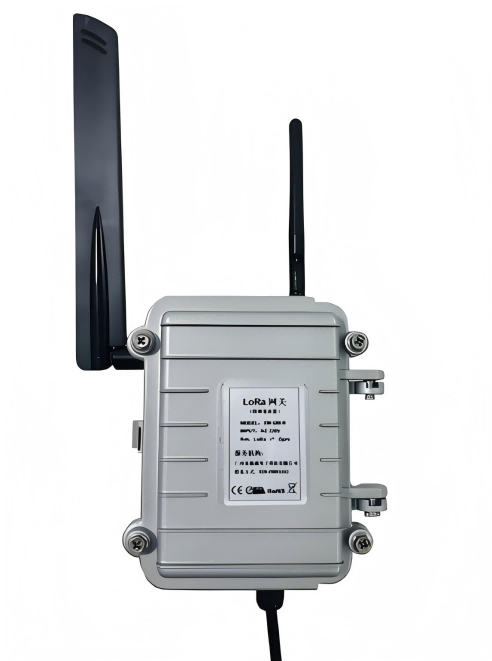

Application scenarios
Smart Factories: Enhances connectivity for automated machinery and sensors in high-interference environments.
Outdoor WiFi Networks: Provides reliable signal extension for parks, campuses, or remote monitoring systems.
IoT Devices: Ensures stable communication for smart meters, GPS trackers, and agricultural sensors.
Consumer Electronics: Compatible with routers, drones, and portable gadgets requiring flexible antenna placement.
FAQ
Q:What frequency bands does this antenna cover?
A:It supports 824-960MHz and 1710-1990MHz, suitable for LTE, GSM, and WiFi.
Q:Can the antenna angle be adjusted?
A:Yes, it folds to 45°, 90°, or 180° for optimal signal direction.
Q:Is customization available?
A:Yes, we offer OEM/ODM services for connector types, lengths, and frequencies.
Q:What’s the maximum operating temperature?
A:It works in -40°C to +85°C, ideal for extreme climates.
Q:Is this antenna waterproof?
A:While not fully waterproof, it’s weather-resistant for outdoor use.

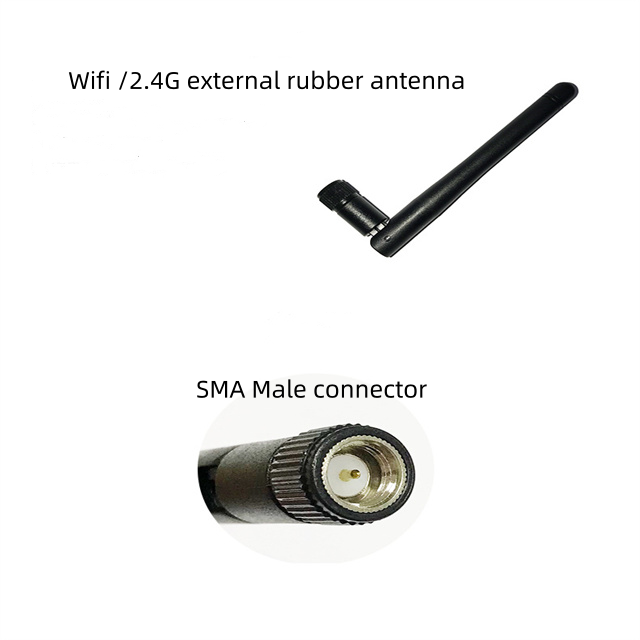

Q:What connector type is used?
A:SMA male connector for universal compatibility with routers/modems.
Q:Does it comply with ROHS standards?
A:Yes, it uses environmentally friendly materials.
Q:How long is the antenna?
A:108.5mm (≈4.3 inches), compact for easy integration into devices.
