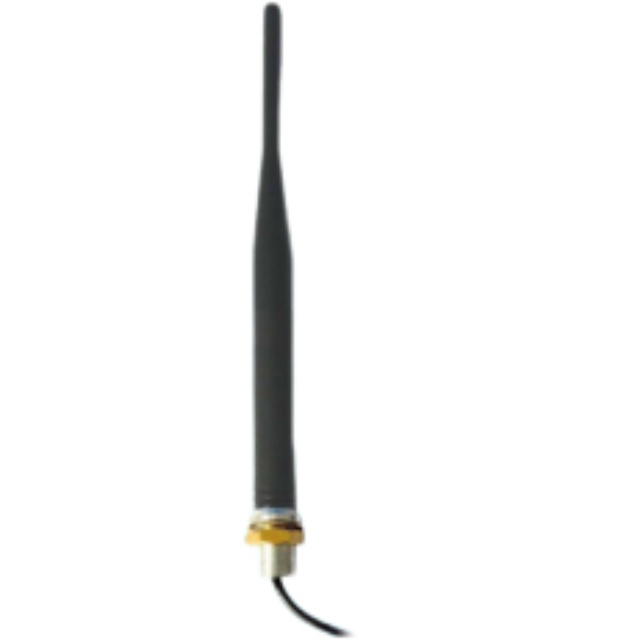

868MHz Rubber Antenna | |
GL-DY8681 | |
Electrical Index | |
Frequency-MHz | 868 |
Gain-dBi | 3 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Power-W | 20 |
Lighting Protection | DC Ground |
Mechanical Index | |
Cable-m | RG174,2 |
Connector | SMA male |
Antenna Dimension-mm | Ø5.5*167 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Extreme Environmental Resilience
Operates reliably in temperatures from -40°C to +85°C and humidity up to 95%, perfect for harsh outdoor or industrial environments.
Lightning Protection & Safety
DC Ground lightning protection ensures durability and safety in areas prone to electrical surges.
Flexible & Compact Design
Slim rubber build (Ø5.5mm x 167mm) and lightweight construction enable easy installation in tight spaces or mobile setups.
Plug-and-Play Compatibility
Equipped with a 2m RG174 cable and SMA male connector, ready to integrate with 50Ω systems like LoRa, Sigfox, or IoT gateways.
Cost-Effective Performance
Combines 3dBi gain and low VSWR (<2.0) for stable signal transmission at an affordable price.
Application Scenarios:
Smart Metering: Attach to utility meters for remote data collection in urban or rural areas.
Industrial IoT: Deploy in factories, warehouses, or agricultural fields for sensor communication.
Fleet Tracking: Mount on vehicles for GPS or telemetry data transmission.
Environmental Monitoring: Use in weather stations or soil sensors for real-time data.
Emergency Systems: Integrate into portable communication kits for disaster response.
FAQ
Q:Is this antenna waterproof?
A:While not fully waterproof, its rubber casing and humidity resistance (5%-95%) make it suitable for outdoor use.
Q:What devices is it compatible with?
A:Compatible with 868MHz, 50Ω systems like LoRa, Sigfox, and IoT gateways.
Q:Can it handle higher frequencies like 915MHz?
A:No, it’s optimized for 868MHz. Check our 915MHz models for other regions.
Q:How long is the cable?
A:Includes a 2-meter RG174 coaxial cable for flexible placement.
Q:Does it require grounding for lightning protection?
A:Yes, the DC Ground feature requires proper grounding to function effectively.
Q:Is the SMA connector reversible?
A:SMA male connectors are standard and require compatible female ports for secure attachment.
Q:Is it suitable for high-vibration environments?
A:The rubber design offers flexibility, but ensure secure mounting to avoid cable strain.
Q:Is it ROHS certified?
A:Yes, this antenna meets ROHS environmental standards.
