GL-DY152
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna | Frequency Range | 698~6000MHz |
Polarization | Linear | |
Gain | 5dBi max | |
V.S.W.R | ＜2.0 | |
Impedance | 50Ω | |
FPC Dimension | 120*50*0.2mm | |
Mechanical | Cable | RF1.37 or others |
Connector | IPEX | |
Mounting Method | Adhesive&Embedded | |
Environmental | Operating Temperature | -40℃~+85℃ |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction
Ultra-Wide Frequency Range (698-6000MHz)
Supports LTE, 4G, 5G sub-6GHz, and IoT bands, ensuring future-proof connectivity across global networks.
High Performance with Low VSWR (<2.0)
Minimizes signal loss for reliable data transmission in high-speed communication systems.

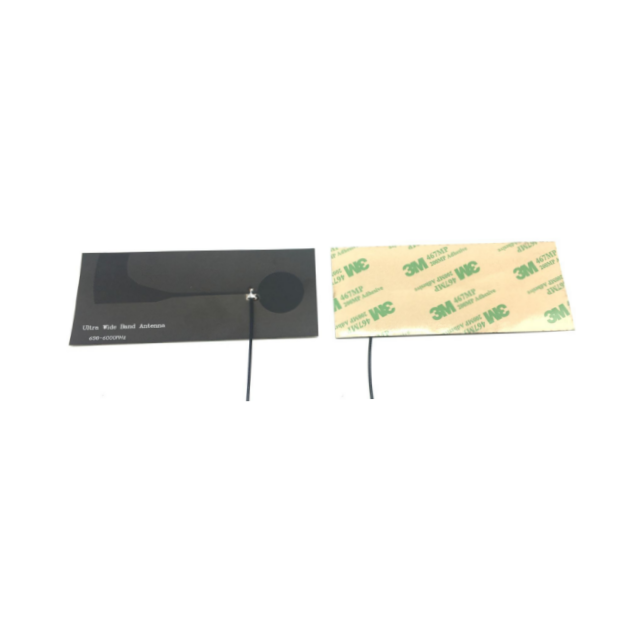

Ultra-Thin Flexible Design (0.2mm Thickness)
Adhesive-mounted FPC (120x50mm) fits seamlessly into space-constrained devices like wearables and sensors.
Rugged Environmental Durability
Operates in extreme temperatures (-40℃~85℃) and withstands vibrations, ideal for automotive and industrial environments.
Global Compliance & Safety
ROHS-certified materials ensure eco-friendly manufacturing and international regulatory adherence.
Application scenarios
5G IoT Devices: Embedded in smart meters, asset trackers, or agricultural sensors.
Industrial Automation: Enhances connectivity for robotics and wireless control systems.
Vehicle Telematics: Provides stable cellular/GPS signals for fleet management.
Consumer Electronics: Ultra-thin design integrates into smartphones, tablets, or AR/VR headsets.
Medical Equipment: Reliable signal transmission for portable diagnostic devices.
FAQ
Q:What frequency bands does this antenna cover?
A:It spans 698–6000MHz, supporting LTE, 4G, 5G sub-6GHz, and IoT applications.
Q:Is this antenna suitable for outdoor installations?
A:Yes, its -40℃~85℃ operating range and vibration resistance make it ideal for harsh conditions.
Q:What connector type is used?
A:It features an IPEX connector with optional RF1.37 or custom cables.
Q:Can it be customized for specific device sizes?
A:The flexible FPC and adhesive mounting allow easy adaptation to various form factors.
Q:Is the antenna ROHS-certified?
A:Yes, it meets ROHS environmental standards.
Q:What is the maximum gain?
A:Up to 5dBi, optimized for high-performance signal strength.
Q:Does it support 5G mmWave frequencies?
A:No, it covers sub-6GHz 5G bands up to 6000MHz.
Q:How durable is the adhesive mounting?
A:The industrial-grade adhesive ensures secure attachment even under vibration and temperature stress.
