English
GL-DY824
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |

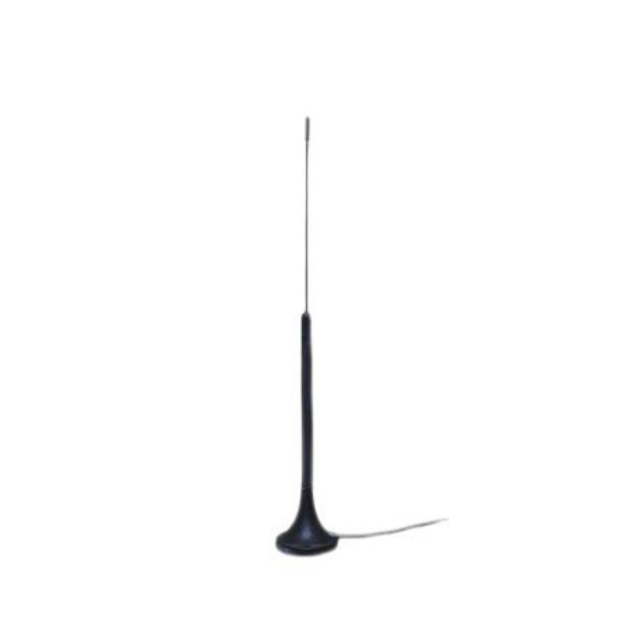

3G Magnet Antenna | |
GL-DYG824 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Gain-dBi | 5 |
Polarization | liner |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | SMA male |
Antenna Dimension-mm | 29.4*235 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY090 | GL-DY829 | GL-DY089 |
| Frequency range-mhz | 824-960/1710-2170 | 433 | 824-960/1710-2170 |
| Gain-dBi | 10 | 2 | 5 |
| Dimension-mm | Φ91*115 | Φ30*235mm | Ø48*92 |
Product Introduction
Dual-Band Coverage (824-2170MHz)
Supports 2G, 3G, and 4G networks, ensuring compatibility with global cellular standards.
High Gain & RHCP Polarization
5dBi gain with Right-Hand Circular Polarization (RHCP) enhances signal stability in urban and rural areas.
Magnetic Mounting & Rugged Design
Integrated magnet allows quick installation on vehicles or metal surfaces; withstands vibrations and extreme temperatures (-40℃~85℃).
Premium Connectivity
Includes a 3m RG174 cable and SMA male connector for reliable signal transmission in industrial setups.
Environmentally Certified
ROHS compliance ensures eco-friendly materials and adherence to international regulations.
Application scenarios

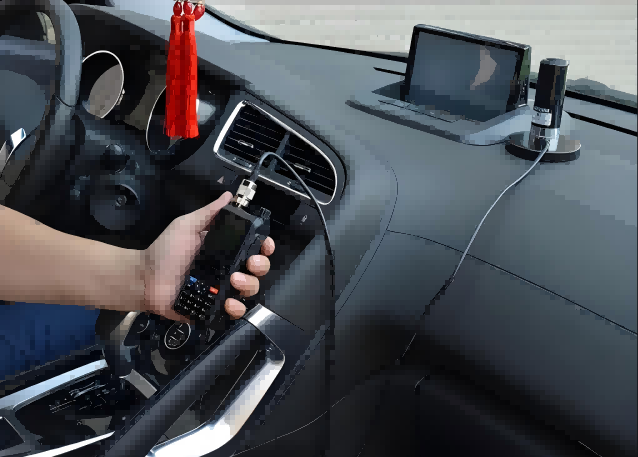

Vehicle Communication: Secure magnet mounting for trucks, buses, or emergency vehicles.
Industrial IoT: Provides stable connectivity for remote machinery monitoring.
Outdoor Base Stations: Supports cellular signal enhancement in rural areas.
Security Systems: Durable design for outdoor cameras or surveillance equipment.
Marine Equipment: Resists humidity (5-95%) and harsh weather conditions.
FAQ
Q:What is the frequency range of the GL - DYG824 3G magnet antenna?
A:The frequency range of the GL - DYG824 3G magnet antenna is 824 - 960/1710 - 2170MHz.
Q:What is the gain of the GL - DYG824 antenna?
A:The gain of the GL - DYG824 antenna is 5dBi.
Q:What type of connector does the GL - DYG824 antenna have?
A:The GL - DYG824 antenna has an SMA male connector.
Q:What is the maximum VSWR of the GL - DYG824 antenna?
A:The maximum VSWR of the GL - DYG824 antenna is less than 1.5.
Q:What is the impedance of the GL - DYG824 antenna?
A:The impedance of the GL - DYG824 antenna is 50Ω.
Q:How long is the cable of the GL - DYG824 antenna?
A:The cable length of the GL - DYG824 antenna is RG174, 3m.
Q:Is the GL - DYG824 antenna environmentally friendly?
A:Yes, the GL - DYG824 antenna is ROHS compliant, so it is environmentally friendly.
