GL-DY109
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna | Frequency Range | 698~960/1710~2700MHz |
Polarization | Linear | |
Gain | 2dBi | |
V.S.W.R | ＜2.0 | |
Impedance | 50Ω | |
PCB Dimension | 132*12mm | |
Mechanical | Cable | RG174 or LMR100 |
Connector | SMA/FAKRA or others | |
Radome Material | ABS | |
Mounting Method | Adhesive | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |
Product Introduction
Broad Frequency Coverage
Covers 824-960MHz and 1710-2700MHz, making it compatible with multiple cellular networks, ideal for 3G/4G applications across regions .
Reliable Signal Performance
Offers 2.5dBi gain at zenith with VSWR <2.0, ensuring stable signal transmission and minimal loss for consistent connectivity .
Dual Connector Options
Supports SMA or Fakra connectors, providing flexibility for integration with various devices like routers, modems, and IoT modules .
Durable & Weatherproof
Features IP67 ingress protection, ABS radome material, and resistance to -40~+85℃ temperatures and 95% humidity, suitable for harsh outdoor environments .

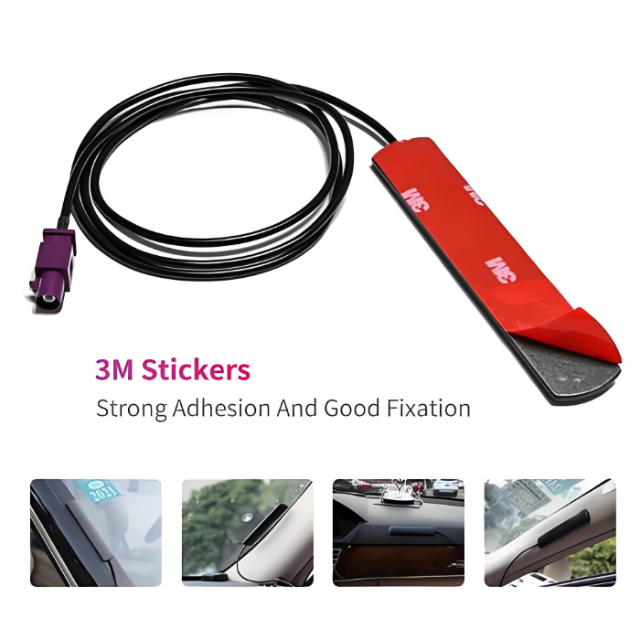

Easy Adhesive Installation
Comes with an adhesive mounting method for tool-free attachment to flat surfaces, saving time and effort in setup .
Application scenarios
Vehicle Telematics: GPS trackers, fleet management systems
Industrial IoT: Remote sensors, equipment monitoring in factories
Outdoor Connectivity: RV/caravan routers, marine communication
Smart Infrastructure: Vending machines, EV charging stations
Mobile Applications: Ambulances, police vehicles, delivery fleets
FAQ
Q: Is this antenna compatible with 5G networks?
A: No, it supports frequencies up to 2700MHz (4G/LTE bands). 5G requires higher frequencies.
Q: Can I use it indoors?
A: Yes, but optimal performance requires metal grounding surface for adhesive mount (e.g., vehicle roof).
Q: Does IP67 rating allow submersion?
A: Yes - withstands immersion in 1m deep water for 30 minutes.
Q: What devices work with this antenna?
A: Routers, modems, trackers, and any device with SMA/Fakra ports supporting 800-2700MHz bands.
Q: How long does the adhesive last?
A: The industrial-grade adhesive provides permanent bonding when applied correctly to clean surfaces.
Q: Can I replace the cable?
A: No - the RG174 cable is factory-soldered to maintain impedance integrity.
Q: Why is 50Ω impedance important?
A: It matches standard telecom equipment to prevent signal reflection and power loss.
