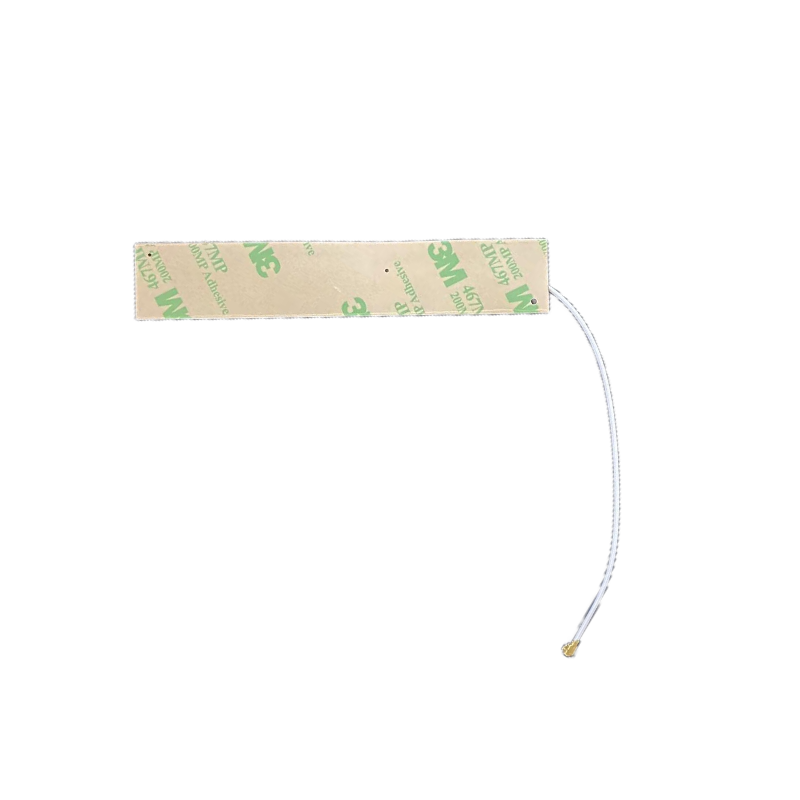

GL-DY142
Asialeren
8517710000
100pc
accepted
10000PC/days
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 698-960/1710-2690 |
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | UFL |
| Installation way | 3M sticky |
Dimensions(mm) | 110x20x0.2 |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -40~85 |
Humidity (%) | 5~95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY142 | GL148 | GL-DY152 |
| Frequency range-mhz | 698-960/1710-2690 | 868 | 698-6000 |
| Gain-dBi | 3 | 3 | 5 |
| connector | UFL | IPEX | IPEX |
Dual-Band 4G/LTE Coverage - Supports 698-960MHz & 1710-2690MHz frequencies for global LTE compatibility
High-Power 50W Capacity - Robust design handles demanding industrial applications
Ultra-Compact Design - 110×20×0.2mm thin profile ideal for space-constrained installations
Industrial-Grade Durability - Operates in extreme temperatures (-40°C to +85°C) and humidity (5-95%)
UFL Connector - Standard UFL interface for reliable connections in embedded systems
Industrial IoT Devices - Perfect for factory automation sensors and control systems
Fleet Tracking Systems - Provides stable connectivity for vehicle telematics
Smart City Infrastructure - Enables communication for traffic monitoring and street lighting
Remote Monitoring Equipment - Ideal for environmental sensors in harsh locations
Medical Devices - Ensures reliable connectivity for wireless medical equipment
What frequency bands does this antenna support?
Covers 698-960MHz (LTE B12/B13/B14) and 1710-2690MHz (LTE B2/B3/B4/B7)
What is the antenna's gain?
Provides 3dBi gain for reliable mid-range communication
Is this antenna waterproof?
While humidity-resistant (5-95%), it's not fully waterproof
What connector does it use?
Standard UFL connector for embedded applications
Can it handle high-power applications?
Yes, rated for up to 50W power handling
What's the operating temperature range?
-40°C to +85°C for extreme environment operation
Is it RoHS compliant?
Yes, meets all ROHS environmental standards
What cable is included?
Uses RG1.13/RG1.37 cable (custom lengths available)
