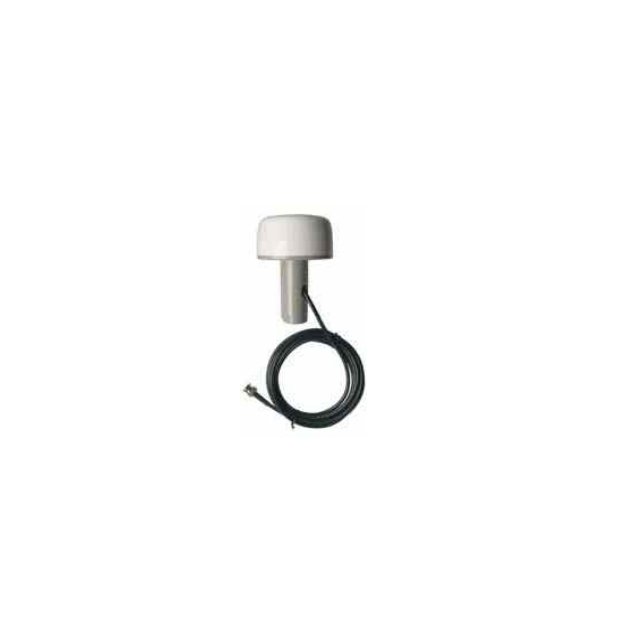

GL-TGPS-1500B
GLOBAL
8517710000
10pc
Accepted
1000PC/Day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency Range (MHz) BDS:B1,B2,B3 GPS: L1, L2,L5 GNONASS:G1,G2 Galileo: E1, E5a,E5b Peak Gain ≥5.5 dBi Polarization RHCP VSWR ≤2.0 Axial Ratio ≤3dB Impedance 50Ω LNA Gain 40±2dB Horizontal Coverage Angle 360° In-band Flatness ±2dB Noise figure ≤2.0 Phase center ±2mm Operating voltage 3.0~12V DC working current ≤50mA Connector MMCX Humidity 95% Non-condensing Storage temperature -45℃ to +85℃ Operating temperature -40℃ to +80℃ Weight ≤130g
