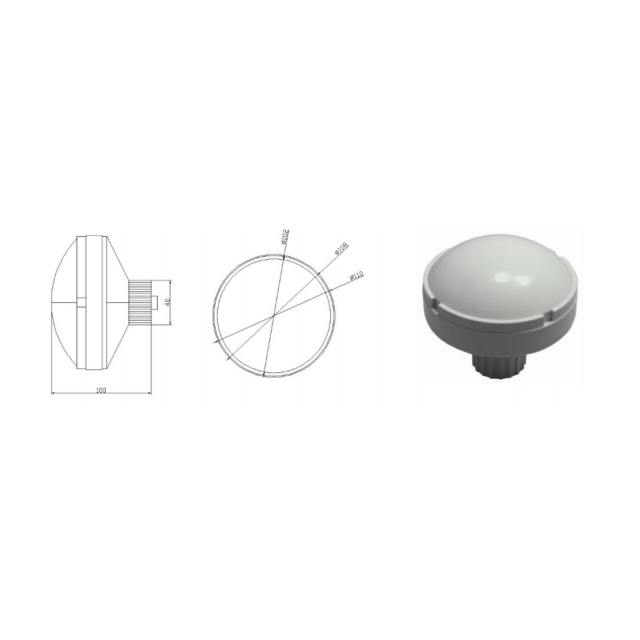

1258mhz High precision antenna

Model:
GL-380
Brand:
GLOBAL
Code:
8517710000
Capacity:
1000PC/Day
MOQ:
10pc
OEM&ODM:
Accepted

Quantity:
Availability:





Inquiry Add to Basket PDF Export

Product Introduction

Frequency Range (MHz) BDS:B1,B2,B3 GPS: L1, L2,L5 GNONASS:G1,G2 Galileo: E1, E5a,E5b Peak Gain ≥5.5 dBi Polarization RHCP VSWR ≤2.0 Axial Ratio ≤3dB Impedance 50Ω LNA Gain 40±2dB Horizontal Coverage Angle 360° In-band Flatness ±2dB Noise figure ≤2.0 Phase center ±2mm Operating voltage 3.0~12V DC working current ≤50mA Connector MMCX Humidity 95% Non-condensing Storage temperature -45℃ to +85℃ Operating temperature -40℃ to +80℃ Weight ≤130g
