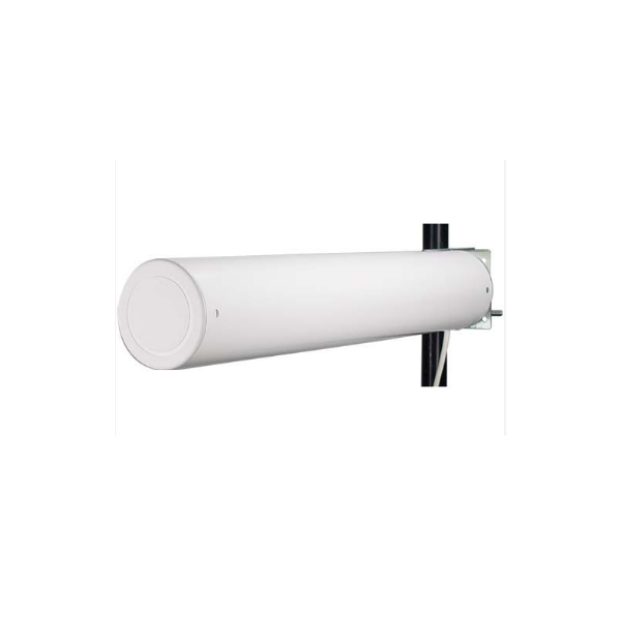

White Color N-Female connector 2.4G Yagi Antenna

Extended WiFi Coverage
14.5dBi gain and 36° beamwidth deliver 3km+ line-of-sight range—perfect for connecting remote security cameras or rural IoT sensors.
  • GL-DY2400Y14

  • Asialeren

  • 8517710000

  • 100pc

  • Accepted

  • 10000pc/day

  • yagi..mp4

Availability:
Quantity:

PDF Export

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button


Electrical Specifications

Frequency Range

2400-2500MHz

VSWR

≤1.5

Gain

14.5dBi

Horizontal beam width

36°

Vertical beam width

32°

Front-to-back ratio

≥17dB

Polarization

Vertical

Input Impedance

50Ω

Maximum input power

50W

Lightning protection

DC Ground

Mechanical Specifications

Input connector type

N-Female

Installation

Pole-holding

Antenna Dimensions

φ110×500mm

Packing Dimensions

530*120*120mm

Net Weight

1kg

Gross Weight

1.1kg

Rated Wind Velocit

36.9m/s

Radiating Element Material

AI

Radome Material

ABS+PVC

Radome Color

White

Operating temperature

-40°C to +55 °C


Product Introduction

  1. High Gain for Long-Range Links
    With 14.5dBi gain, it amplifies 2.4GHz signals to extend WLAN coverage, ideal for bridging long distances in point-to-point/multipoint setups (e.g., connecting buildings 1km+ apart).
  2. Durable & Weather-Resistant
    ABS+PVC radome and aluminum radiating elements withstand -40℃ to +55℃ temps, 36.9m/s wind, and outdoor conditions. Ensures stable performance in harsh environments.
  3. Precise Beam Control
    36° horizontal & 32° vertical beamwidths focus signals, reducing interference. Perfect for targeting specific areas (e.g., outdoor WiFi hotspots, industrial WLANs).
  4. Easy Integration
    N-Female connector and pole-holding mount simplify setup on masts/poles. Works with routers, access points, or repeaters for quick WLAN upgrades.
  5. Efficient Power Handling
    Supports 50W max input power, handling high-data applications (e.g., HD video streaming, large file transfers) without signal loss.

Application scenarios

  • Farm Connectivity: Links barns to farmhouse WiFi across 500m fields

  • Industrial IoT: Connects sensors in steel factories (vertical polarization penetrates metal)

  • Security Systems: Provides stable video feed for remote perimeter cameras

  • Wireless ISPs: Backhaul for point-to-multipoint networks in villages

2.4G yagi antenna

FAQ

Q: What's the maximum range?
A: 3-5km line-of-sight with standard routers; up to 15km with 50W amplifiers.


Q: Compatible with 5.8GHz systems?
A: No—optimized for 2.4GHz (2400-2500MHz) only.


Q: How to ground for lightning protection?
A: Connect DC ground wire to pole's grounding rod (6AWG cable recommended).


Q: Beam alignment technique?
A: Use mobile app (e.g., Ubiquiti WiFiman) to peak signal strength at 36° horizontal aim.


Q: Suitable for mesh networks?
A: Ideal as backbone between nodes; use omni antennas for client connections.


Q: UV resistance of white radome?
A: ABS/PVC blend prevents yellowing/cracking for 5+ years in direct sun.


Q: Adapter for RP-SMA routers?
A: Use N-male to RP-SMA female pigtail (keep under 1m to maintain VSWR ≤1.8).


Q: Snow/ice accumulation solution?
A: 32° vertical beamwidth prevents blockage; apply non-stick coating to radome.
