GL-DYG826
Asialeren
8517710000
100pcs
Accepted
10000pcs/day
| Quantity: | |
|---|---|
| PDF Export | |

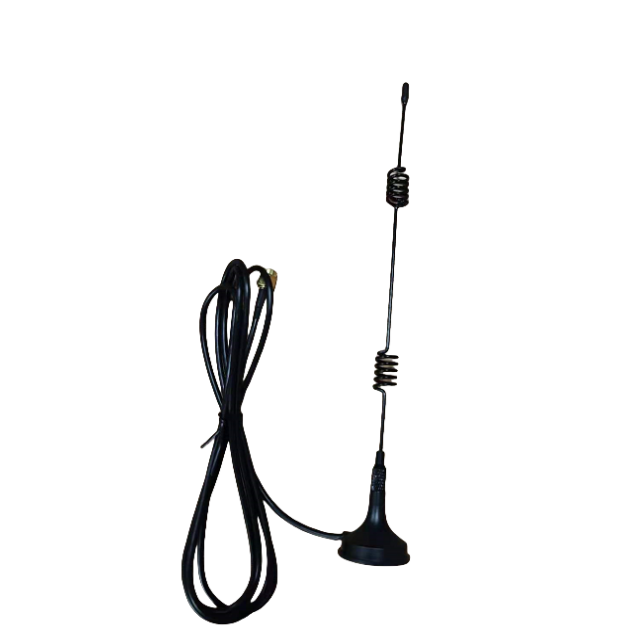

3G Magnet Antenna | |
GL-DYG826 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2170 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Gain-dBi | 7 |
Polarization | RHCP |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | SMA male |
Antenna Dimension-mm | 29.4*245 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL826 | GL-DY829 | GL-DY089 |
| Frequency range-mhz | 824-960/1710-2170 | 433 | 824-960/1710-2170 |
| Gain-dBi | 7 | 2 | 5 |
| Dimension-mm | Ø29.4*245 | Φ30*235mm | Ø48*92 |
Product Introduction
High Gain for Strong Signal
With 7dBi gain, it significantly enhances 3G signal reception and transmission, ideal for areas with weak network coverage, ensuring stable communication .
Wide Frequency Compatibility
Covers 824-960MHz and 1710-2170MHz frequency bands, supporting global 3G networks, making it suitable for international use .
Magnetic Mount for Easy Installation
Features a strong magnet base, allowing tool-free attachment to metal surfaces like vehicle roofs or equipment casings, enabling quick setup and repositioning .
Durable & Weather-resistant
Constructed to withstand -40～＋85℃ temperatures and 5～95% humidity, along with resistance to vibration (10 to 55Hz with 1.5mm amplitude for 2 hours), ensuring reliability in harsh environments .
ROHS Compliant & Quality Construction
Meets ROHS environmental standards, using high-quality materials for long-term performance, and comes with a 3m RG174 cable and SMA male connector for secure connectivity .
Application scenarios
Fleet Vehicles: Reliable connectivity for GPS trackers/telematics on trucks/vans.
Remote Monitoring: Cellular data for surveillance systems on construction sites.
Marine Communications: Corrosion-resistant performance on boats/ferries.
Mobile Routers: Backup internet for emergency response vehicles.
Industrial IoT: Vibration-tolerant connectivity for heavy machinery sensors.
Q: Does this support 4G/LTE networks?
A: Yes – covers 1710-2170MHz bands used by 4G/LTE and 3G.
Q: Why choose RHCP polarization?
A: Reduces signal loss during movement (e.g., vehicles/drones) vs. linear antennas.
Q: What’s included with the antenna?
A: 3m RG174 cable + SMA male connector – ready to plug into cellular devices.
Q: Will the magnet damage my vehicle?
A: No – designed with non-scratching base for temporary installation.
Q: Can it survive heavy rain/snow?
A: Yes – humidity-rated (5-95%) and temperature-proof (-40°C to +85°C).
Q: What devices use SMA male connectors?
A: Cellular routers (e.g., Cradlepoint), IoT gateways, and 3G/4G modems.
Q: How does vibration resistance help?
A: Ensures stable performance in high-shock environments .
