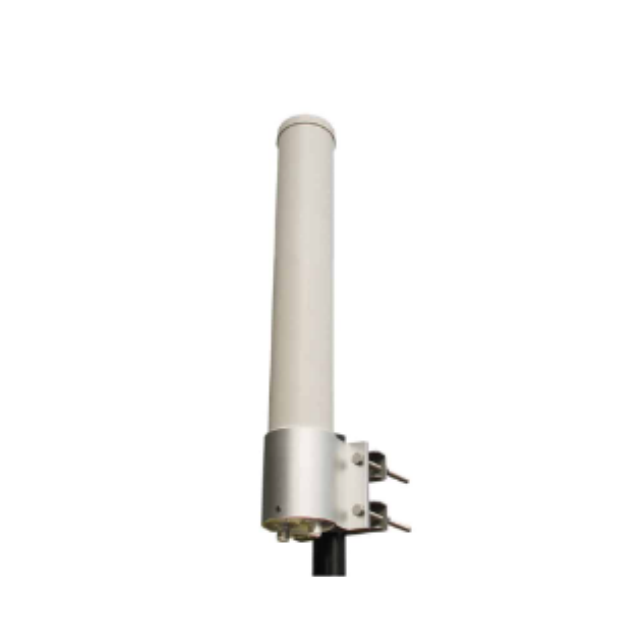

GL-DY2400VH12
asialeren
85177100000
10pcs
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range-MHz | 2400-2500 |
VSWR | ≤1.5 |
Gain-dBi | 12 |
Isolation between ports-dB | ≥25 |
Horizontal beam width | 360° |
Vertical beam width | 8° |
Polarization | H＋V |
Input Impedance-Ω | 50 |
Maximum input power-W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2×N Female |
Connector place | Bottom |
Dimensions-mm | Ф75×1150 |
Antenna weight-KGS | 2.5 |
Radome material | PVC |
Radome color | White |
Operating temperature | -40°c～60°c |
Rated Wind Velocity-m/s | 60 |
Mounting hardware | ￠40～￠75 |
Differences between similar products
P/N | GL2458D6T | GL2458V5 | GL-DY2400VH12 |
Frequency-Mhz | 2400-2483/5150-5875 | 2400-2483/5150-5875 | 2400-2500 |
Gain-dBi | 4/7 | 5 | 12 |
Length-mm | 500 | 250 | 1150 |
Product Introduction
Extreme 12dBi Gain: Delivers 3× stronger signal than standard antennas for vast coverage (1-5km range) with focused 8° vertical beam.
Professional MIMO Design: Dual N female ports with ≥25dB isolation eliminate interference – doubles throughput for Wi-Fi 6/industrial IoT.
Hurricane-Proof Build: Withstands 60m/s winds and -40°C~60°C extremes – survives blizzards, deserts, and coastal storms.
Industrial-Grade Power: Handles 100W transmission (10× consumer antennas) for cell towers, military comms, and remote bases.
Lightning-Safe Operation: Integrated DC ground protects equipment from surges – critical for tower/mast installations.
Application scenarios
Rural ISP Base Stations: Cover villages with 360° horizontal beam.
Industrial Wi-Fi Meshes: Connect cranes/robots across factories.
Emergency Response Networks: Deploy rapidly on vehicles for disaster zones.
Agricultural Sensor Hubs: Monitor vast farms from central towers.
Mining Operations: Reliable comms in open-pit mines with dust/wind.
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: How much gain can I expect from the 2.4GHz MIMO Omni Antenna?
A: You can expect a high gain of 12dBi from the 2.4GHz MIMO Omni Antenna. This high gain enhances signal strength and coverage, allowing for improved performance of your wireless network. It is perfect for environments needing extended reach.
Q: Is the antenna easy to install?
A: Yes! The 2.4GHz MIMO Omni Antenna comes with an adjustable mounting bracket, facilitating a straightforward installation process. Whether you are an experienced technician or a DIY enthusiast, you will find that setting up this antenna is simple and hassle-free.
Q: What type of connectors does the antenna use?
A:This antenna features two N Female connectors, providing compatibility with various equipment and settings. This flexibility ensures that you can integrate the antenna easily into your existing system.
Q: What materials is the 2.4GHz MIMO Omni Antenna made from?
A: The antenna is constructed from durable PVC material, which ensures longevity and resistance to environmental factors. Its robust design is suited for both indoor and outdoor use, making it a reliable choice for your wireless needs.
Q: What are the dimensions and weight of the antenna?
A:The 2.4GHz MIMO Omni Antenna is compact, measuring 75×1150mm and weighing only 2.5kg. Its lightweight design allows for easy mounting and installation, making it an excellent option even in space-constrained environments.
Q: Can this antenna be used for my home Wi-Fi network?
A:Absolutely! The 2.4GHz MIMO Omni Antenna is perfect for enhancing your home Wi-Fi network. With its high gain and efficient performance, it can significantly improve your wireless coverage and provide a more stable internet connection throughout your space.
Q: Is the 2.4GHz MIMO Omni Antenna suitable for outdoor use?
A:Yes, the durable PVC material makes the 2.4GHz MIMO Omni Antenna suitable for outdoor use. It can withstand various weather conditions, ensuring reliable performance for your wireless network even in challenging environments.
