GL2458V5
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 2400-2483/5150-5800 |
Gain（dBi） | 5 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | RP-SMA male |
Size (mm) | Φ90×250 |
Cable | LMR195/3D-FB 10m |
Color | Black |
Temperature (℃) | -30~60 |

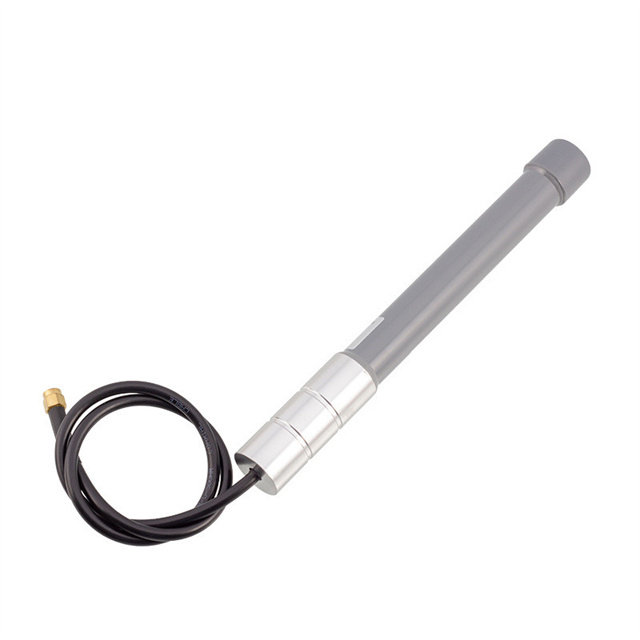

Product Introduction
Wide Dual-Band Coverage: Seamlessly supports both 2.4GHz (2400-2483MHz) and 5GHz (5150-5800MHz) frequencies, ideal for modern Wi-Fi 5/6 routers and IoT devices.
High Durability: Fiberglass radome withstands harsh weather (rain/UV/snow) and extreme temperatures (-30°C to 60°C), perfect for outdoor deployments.
Strong Signal Stability: 5dBi gain and ≤2.0 VSWR ensure reliable, low-loss signal transmission over long distances with reduced interference.
Ready for High-Power Systems: Handles up to 50W power—compatible with high-output routers, cellular boosters, and industrial equipment.
Easy Installation: Includes a 10m LMR195/3D-FB low-loss cable and RP-SMA male connector for plug-and-play setup with most routers/CPEs.
Application scenarios
Outdoor Wi-Fi Expansion: Extend coverage to gardens, warehouses, or parking lots.
Rural Internet Solutions: Boost weak cellular/Wi-Fi signals in remote areas.
Surveillance Systems: Enhance connectivity for IP cameras in perimeter security.
Drone/UAV Operations: Provide stable ground control station links.
Public Hotspots: Deploy on rooftops for cafes, hotels, or campuses.
FAQ
Q: Is this antenna compatible with my Wi-Fi 6 router?
A: Yes! It supports both 2.4GHz and 5GHz bands, including Wi-Fi 5/6/6E routers with RP-SMA female ports.
Q: Can I use it in extreme cold or hot climates?
A: Absolutely. Its fiberglass build operates in -30°C to 60°C—ideal for deserts or snowy regions.
Q: Does the package include mounting hardware?
A: Mounting brackets are not included, but the antenna has a standard Ø90mm base for pole/wall mounts (hardware sold separately).
Q: How far can this antenna transmit signals?
A: Range depends on environment, but the 5dBi gain typically extends coverage by 30-50% vs. stock antennas in open areas.
Q: Can it handle 50W power for cellular boosters?
A: Yes. With a 50W max power rating, it’s safe for cellular repeaters, ham radios, and high-power routers.
Q: Is the cable length customizable?
A: The included cable is fixed at 10m (LMR195). Custom lengths require professional retermination to avoid signal loss.
Q: Will it work with a MikroTik/Ubiquiti device?
A: Yes, if your device has an RP-SMA female port. For devices with N-type connectors, use an RP-SMA to N-type adapter.
