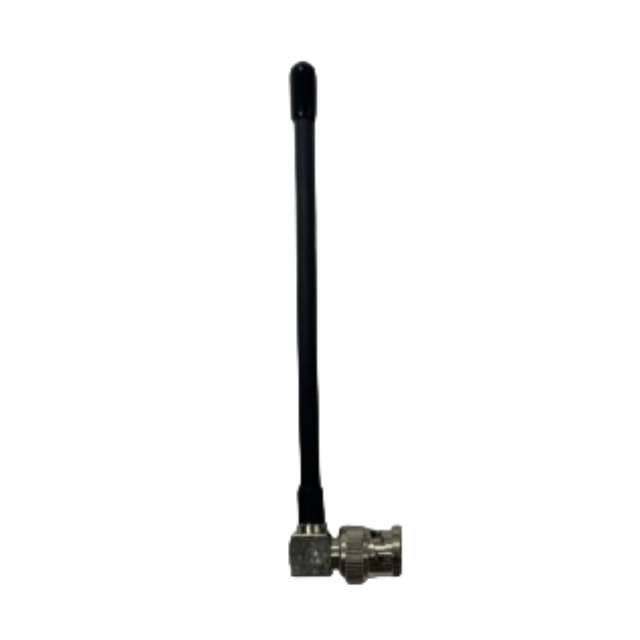

GL491-600
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electronical specification | |
Frequency | 547-614MHz |
Band Width | 67MHz |
Gain | 3dBi |
VSWR | ≤ 1.5 |
Radiation | Omni-Direction |
Polarization | Vertical |
Max Power | 5W |
Impedance | 50Ώ |
Connector | BNC Male |
Material
| Copper&PVC |
Dimension | Φ 13x130mm |
Weight | 15g |
Temperature | -40℃ to+70℃ |
VSWR
Radiation Pattern
Product Introduction
Compact & Lightweight Design
With Φ13x130mm dimensions and 15g weight, it fits seamlessly into mobile terminal devices without compromising space, ideal for portable IoT setups .
Wide-band 547-614MHz Coverage
Supports 67MHz bandwidth (547-614MHz), ensuring compatibility with smart measurement, remote monitoring, and industrial IoT systems .
Optimized Signal Performance
Delivers 3dBi gain with VSWR ≤1.5, balancing omni-directional coverage and minimal signal loss for stable data transmission .
Durable Material Construction
Made of copper and PVC, it withstands -40℃ to +70℃ temperatures, suitable for harsh industrial environments .
Easy Installation & Versatility
Features a BNC male connector for quick integration, supporting vertical polarization for consistent signal directionality in diverse applications .
Industrial IoT Sensors
Deployed on factory equipment for real-time data collection, leveraging omni-directional radiation to connect with remote monitoring systems .
Smart Grid Monitoring
Installed on utility poles to transmit energy consumption data, with temperature tolerance ensuring reliability in outdoor environments .
Remote Environmental Sensing
Used in weather stations or agricultural sensors for wide-area coverage, supporting long-range communication in rural areas .
Medical Monitoring Devices
Embedded in portable healthcare equipment for seamless data transmission to central systems, prioritizing signal stability .
Logistics & Asset Tracking
Mounted on shipping containers to track location and condition via GPS and cellular networks, thriving in fluctuating temperatures .
FAQ
Q: What devices use this frequency band (547-614MHz)?
A: Common in EU/Asian IoT bands, LoRaWAN, and utility SCADA systems.
Q: Is it waterproof?
A: PVC housing provides IP54 splash resistance (not submersible).
Q: Maximum cable length supported?
A: Works with standard RG58/U cables (recommended ≤10m to maintain signal integrity).
Q: Can I use this for Wi-Fi/Bluetooth?
A: No – designed exclusively for 547-614MHz applications.
Q: Does it require grounding?
A: Optional for lightning protection; copper core naturally dissipates static.
Q: Compatible with N-type connectors?
A: Requires BNC-to-N adapter.
Q: Radiation pattern type?
A: Omnidirectional vertical polarization.
