GL-DY7060V3
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | ||||
Frequency Range-MHz | 380-520 | 698-960 | 1710-6000 | |
VSWR | ≤3.0 | ≤2.0 | ≤2.0 | |
Gain-dBi | 2.0 | 2.5 | 4.0 | |
Horizontal beam width | 360° | |||
Polarization | Vertical | |||
Intermodulation IM3 (2x43dBm)- dBc | ≤-150 | |||
Input Impedance-Ω | 50 | |||
Maximum input power- W | 50 | |||
Lightning protection | DC Ground | |||
Mechanical Specifications | ||||
Input connector type | N female | |||
Dimensions- mm | ||||
Antenna weight- kg | 0.9 | |||
Radiating Element Material | Aluminum | |||
Radome material | ABS | |||
Radome color | White | |||
Operating temperature | -40°C to +65 °C | |||
Product Introduction
Ultra-wide Bandwidth Coverage
Supports 380-520/698-960/1710-6000MHz, enabling seamless connectivity for 2G/3G/4G/5G and WiFi systems in a single device
Optimized Gain for Diverse Bands
Delivers 2.0dBi (380-520MHz), 2.5dBi (698-960MHz), and 4.0dBi (1710-6000MHz) to balance coverage and signal strength across frequency ranges
Lightweight & Compact Design

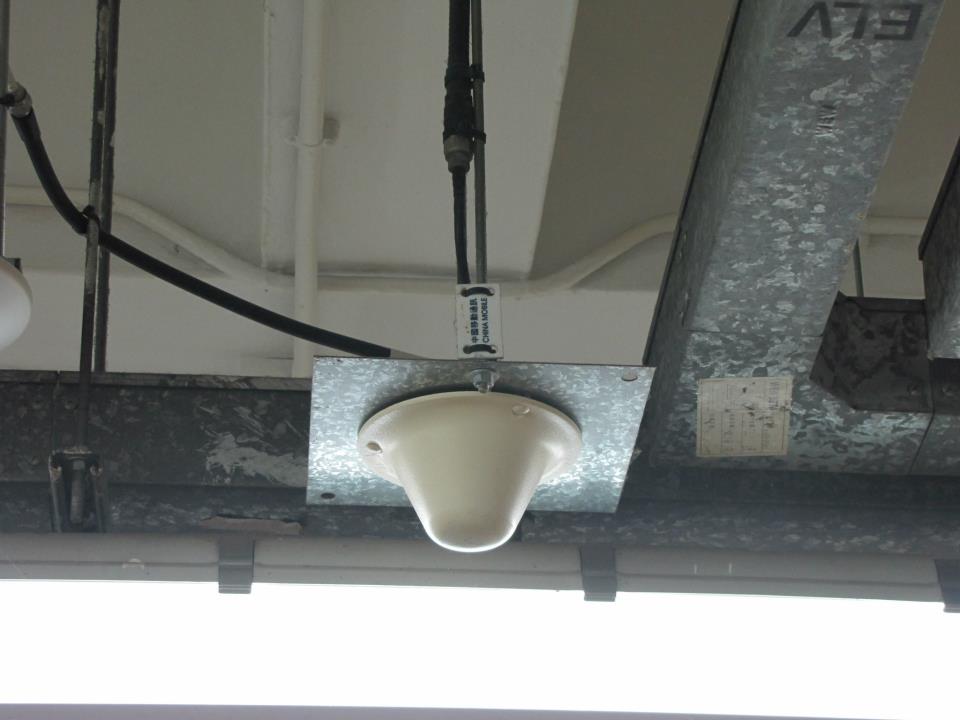

Weighing only 0.9kg with Ø298×152mm dimensions, it allows easy ceiling mounting in crowded indoor spaces without structural modifications
Durable Anti-UV Construction
The ABS radome resists ultraviolet degradation, while the aluminum radiating element ensures long-term performance in commercial environments
Reliable Environmental Tolerance
Operates from -40℃ to +65℃, suitable for harsh indoor conditions like data centers, warehouses, or airports with fluctuating temperatures
Application scenarios
Commercial Buildings
Installed in malls, offices, or hotels to eliminate signal dead zones, supporting simultaneous connections for thousands of devices via 4G/5G and WiFi
Transportation Hubs
Deployed in airports, train stations, or subways to maintain robust connectivity for passenger communications and security systems
Industrial Facilities
Used in factories or warehouses for IoT sensor networks, ensuring real-time data transmission from machinery and equipment
Healthcare Facilities
Mounted in hospitals to support critical communications for medical devices, patient monitoring systems, and staff networks
Educational Campuses
Enables high-density connectivity in lecture halls, dormitories, and libraries for e-learning platforms and student devices
FAQ
Q: What frequencies does it support?
A: Three bands: 380-520MHz, 698-960MHz, and 1710-6000MHz (covers 4G/5G/WiFi).
Q: Is lightning protection included?
A: Yes, DC grounding protects against surges.
Q: What’s the coverage pattern?
A: Full 360° horizontal omni-directional radiation.
Q: Can it handle high-power inputs?
A: Rated for 50W max input power – suitable for active DAS.
Q: What connector type is used?
A: Standard N-female interface (50Ω impedance).
Q: Is outdoor installation possible?
A: Designed for indoor use only (no IP rating for outdoor).
Q: How heavy is the antenna?
A: Only 0.9kg – minimizes ceiling load stress.
Q: Does it support 5G mmWave?
A: No, maximum 6000MHz (covers sub-6GHz 5G, not mmWave).
