GL-DY7027S6512
Asialeren
8517710000
50pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Electrical Specifications | |
Frequency Range- MHz | 698-960/1710-2700 |
Polarization | ±45° |
VSWR | ≤1.5 |
Gain- dBi | 10/12 |
Horizontal beam width | 65° |
Verticalbeam width | 50°/35° |
Front-to-back ratio- dB | ≥25 |
Isolation between ports- dB | ≥26 |
Input Impedance-Ω | 50 |
Maximum input power- W | 100 |
Lightning protection | DC Ground |
Mechanical Specifications | |
Input connector type | 2-7/16DIN Female |
Connector place | Bottom |
Dimensions- mm | 700×325×145 |
Antenna weight- kg | 7.5 |
Radome material | UPVC |
Radome color | Gray |
Mechanical tilt | 0～12° |
Operating temperature | -40°C to +65 °C |
Rated Wind Velocity- m/s | 60 |
Mounting hardware- mm | ￠35～￠75 |

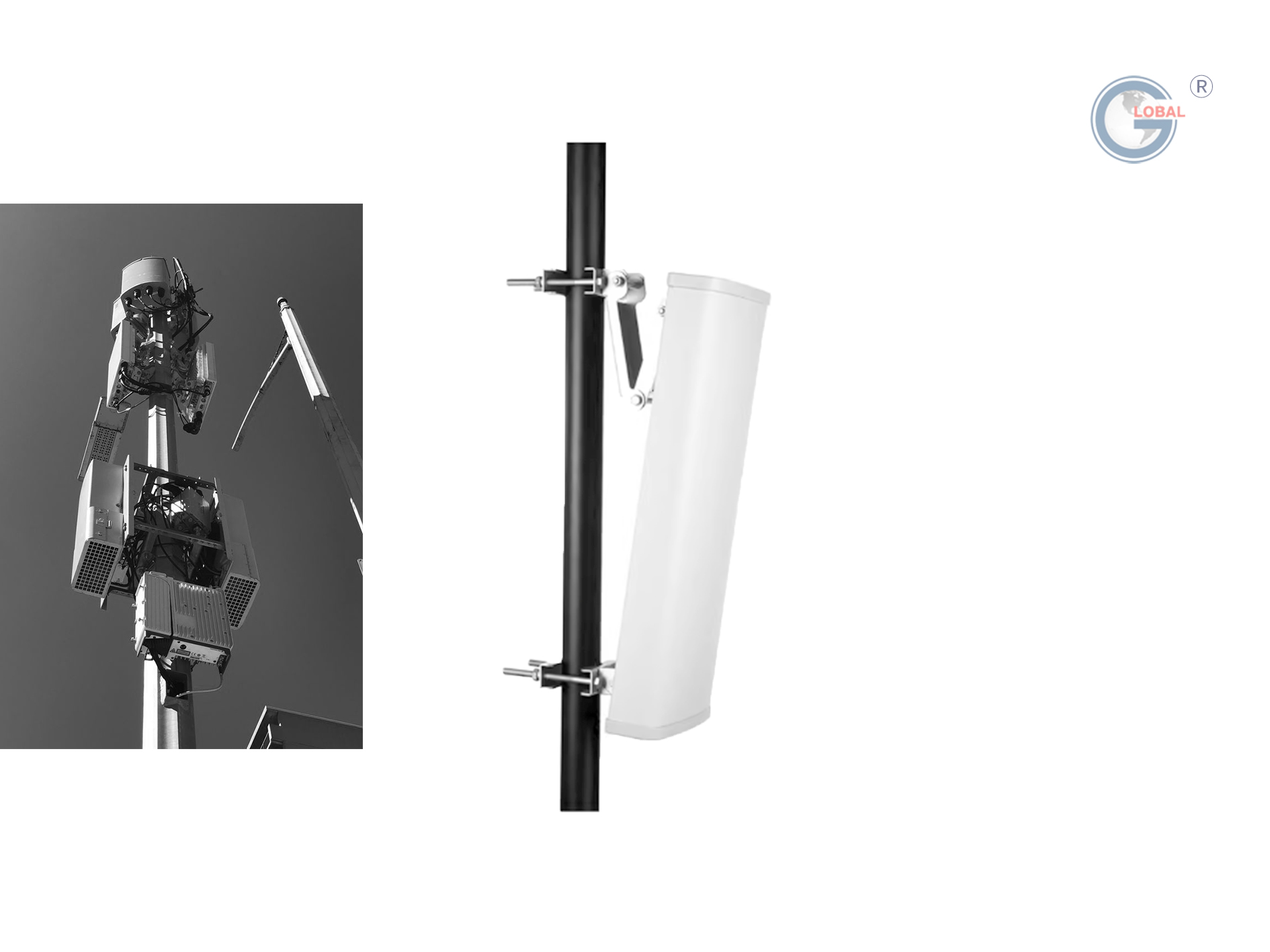

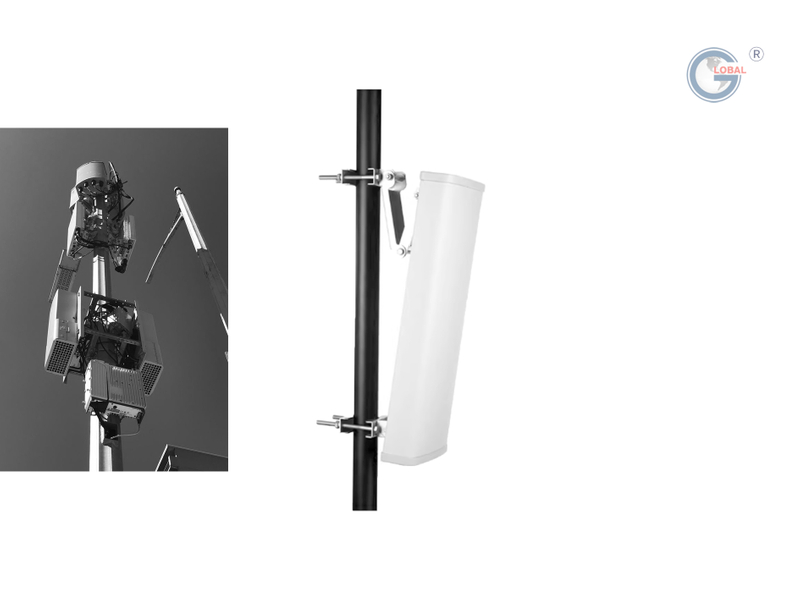

Product Introduction
●Dual-Band Frequency & Versatile Gain: Operates across 688-960MHz and 1710-2700MHz with dual gains (10dBi/12dBi), optimized for 4G/LTE and sector coverage.
●Low VSWR & High Isolation: Ensures stable performance with VSWR ≤1.5, port isolation of 26dB, and a front-to-back ratio of 25dB.
●Robust Mechanical Design: Features a UPVC radome, DC lightning protection, and compact dimensions (700×32×145mm) for durability in extreme temperatures (-40°C to +85°C).
●Flexible Installation: Bottom-mounted 2-7/16DIN Female connectors, adjustable mechanical tilt (0–12°), and compatibility with 35–75mm mounting poles.
●High Power & Wind Resistance: Supports up to 100W input power and withstands wind speeds of 60m/s for reliable outdoor deployment.
Application Scenarios
Carrier Networks: 4G/LTE Macro Base Station Signal Enhancement
Rural Coverage: Targeted Solution for Weak Signals in Remote Villages
Transportation Arteries: Continuous Coverage Along Highways and Railways
Industrial IoT: Dedicated Communication Networks for Large Factories
Emergency Communications: Temporary Base Station Installation at Disaster Sites
Q:What frequency bands does this antenna cover?
A:It operates in dual bands: 688-960MHz and 1710-2700MHz.
Q:What is the polarization angle?
A:The antenna uses +45° polarization for optimized signal alignment.
Q:Can it function in extreme weather conditions?
A:Yes, it operates in temperatures ranging from -40°C to +85°C.
Q:Does it include lightning protection?
A:Yes, it features DC grounding for lightning protection.
Q:What are the horizontal and vertical beamwidths?
A:Horizontal: 65°, Vertical: 50° (low band) / 38° (high band).
Q:What is the maximum input power?
A:Up to 100W, suitable for high-power applications.
