GL-DYS150AMP
Asialeren
8517710000
5pcs
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

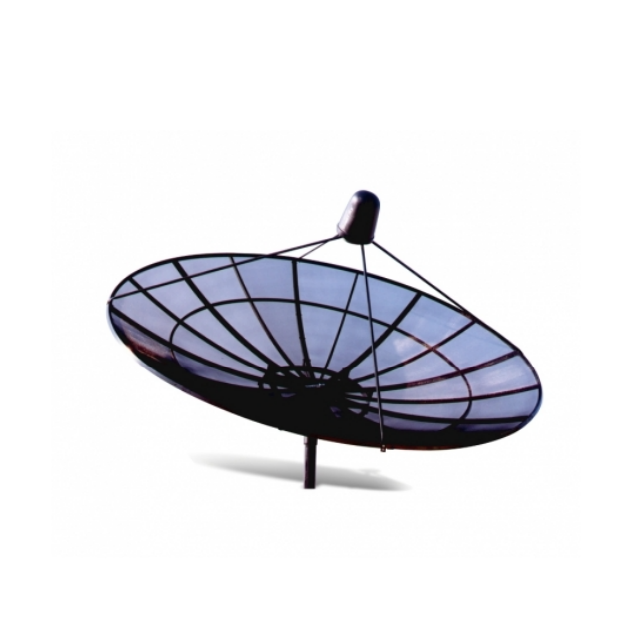

product model | S150AM-P | |
Panel(Sector Divided) | 4 | |
Aperture Diameter | 150CM | |
C-Band Gain@ 4GHz | 34.2dB | |
Ku-Band Gain@ 12.5GHz | ||
F/D Ratio | 0.38 | |
Focus Length | 57CM | |
Material | Aluminium Mesh | |
Finish | Polyester Powder Coating | |
Mounting Type | PoleMount | |
Elevation Alignment | 0～90° | |
Azimuth Alignment | 0～360° | |
Operational Winds | Able to receive | 25m/sec |
Able to re-set | 40m/sec | |
Not broken & fly away | 60m/sec | |
Ambient Temperature | -40℃～+60℃ | |
Relative Humidity | 0～100% | |
Differences between similar products
P/N | GL-DYS150AMP | GL-DYS120AM4P | GL-DYS180AM4PM |
Aperture Diameter | 150cm | 120cm | 180cm |
C-Band Gain@ 4GHz | 34.2dB | 34.2dB | 35.4dB |
Focus Length | 57CM | 45.6CM | 69.3CM |
Product Introduction
High C - Band Gain：The S150AM - P offers an impressive 34.2dB gain in the C - Band at 4GHz. This high gain enables the antenna to effectively capture and amplify weak C - Band signals. Whether for satellite communication, broadcasting, or other C - Band applications, it ensures a stable and strong signal connection, providing reliable performance.
Durable Aluminium Mesh Material：Constructed with aluminium mesh, the antenna is both lightweight and durable. Aluminium mesh offers good corrosion resistance, making it suitable for long - term outdoor use.
Adjustable Mounting Options：With a pole - mount design and adjustable elevation (0 - 90°) and azimuth (0 - 360°) alignment, the S150AM - P provides great flexibility in installation. Users can easily optimize the antenna's position to achieve the best signal reception, whether it's for covering a specific area or aligning with a particular satellite.
Optimal F/D Ratio and Focal Length：The 0.38 F/D ratio and 57CM focal length are carefully designed to focus signals effectively. This optimal combination enhances the antenna's signal - gathering ability, improving its overall performance.
Wide Environmental Tolerance：Operating within a temperature range of - 40 ℃ to +60 ℃ and a relative humidity of 0 - 100%, the antenna can function in diverse environments.
Application scenarios
Satellite TV/Radio Broadcasting: Ideal for remote terrestrial stations requiring stable signal transmission.
Military & Defense: Deployed in rugged terrains for secure communication systems.
Maritime Operations: Corrosion-resistant design suits ship-based satellite links.
Meteorology: Reliable data transmission for weather monitoring in harsh climates.
Q:What wind speeds can this antenna endure?
A:It withstands 60m/sec winds without damage and resets after 40m/sec gusts.
Q:Is it suitable for freezing conditions?
A:Yes, it operates in temperatures as low as -40℃.
Q:Does it support both C and Ku bands?
A:Optimized for C-band (4GHz); Ku-band compatibility confirmed (contact for specific gain details).
Q:What mounting options are included?
A:Pole-mounted with adjustable elevation and azimuth for flexible installation.
Q:How durable is the material?
A:Aluminum mesh with polyester coating ensures longevity in corrosive or humid environments.
Q:How many sectors does the antenna have?
A:A 4-sector panel design improves signal distribution and reduces dead zones.
Q:Can it be used at sea?
A:Yes, its corrosion-resistant build is ideal for maritime applications.
