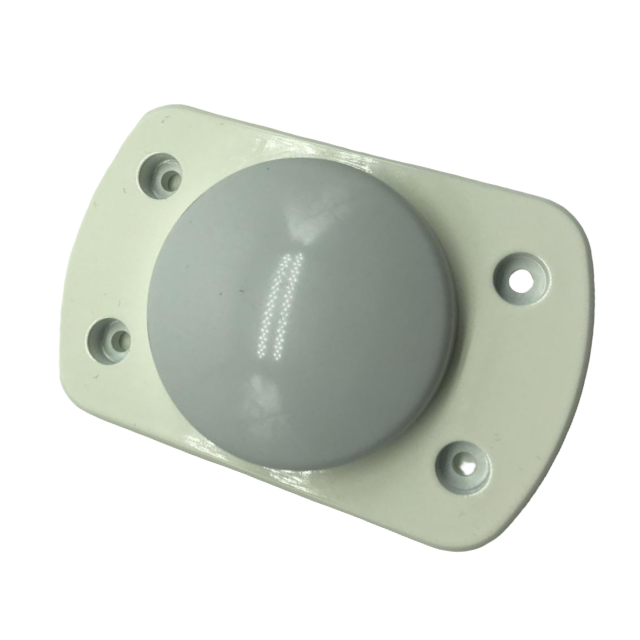

GNSS Surveying Antenna GL234D
Item | Specifications | |
GNSS Antenna | Frequency | GPS L1/L2 GLONASS G1/G2 COMPASS B1/B2/B3 Galileo E1/L1/E2/E5b/E6 |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
V.S.W.R | ≤2.0 | |
Peak Gain | ≥3dBi | |
Impedance | 50Ω | |
Horizontal coverage angle | 360° | |
Vertical coverage angle | 5°~90° | |
GNSS Antenna LNA | Gain | B1/L1/G1/E1/E2：40±2dB B2/L2/G2/B3/E5b/E6：42±2dB |
Noise Figure | ≤1.5dB | |
Passband fluctuation | ±1.5dB | |
Supply Voltage | 3.3~12V DC | |
Current Consumption | ≤50mA | |
V.S.W.R | ≤2.0 | |
Mechanical | Connector | TNC female |
Weight | ≈150g | |
Product Introduction
●Multi-Frequency Compatibility: Supports GPS L1/L2, GLONASS G1/G2, COMPASS B1/B2/B3, and Galileo E1/L1/E2/E5b/E6 for enhanced versatility and seamless integration in various surveying applications.
●Exceptional Gain Performance: Features gain values of 40±2dB for B1/L1/G1/E1/E2 and 42±2dB for B2/L2/G2/B3/E5b/E6, ensuring superior signal reception and reliability even in challenging environments.
●User-Friendly Connector: Equipped with a TNC female connector for easy and secure connectivity with various GNSS devices, streamlining setup and improving operational efficiency.
●High Precision Positioning: The GL234D antenna delivers sub-meter accuracy, making it an invaluable tool for land surveying, mapping, navigation, and other precision positioning tasks.
●Revolutionary GNSS Technology: Engineered for unparalleled performance, the GL234D antenna enhances location tracking capabilities, ensuring accurate and reliable positioning data across diverse applications.
Application scenarios
Land Surveying: High-precision cadastral mapping with RTK base stations.
Construction Staking: Maintains signal lock when tilted on grading equipment.
Scientific Research: Glacier movement monitoring in polar regions.
Railway Alignment: Continuous positioning along curved tracks.
FAQ
Q: Does this support modern L5/E5 signals?
A: Yes—covers GPS L5 via E5b/Galileo E5b bands for enhanced ionospheric correction.
Q: Why choose TNC over SMA connectors?
A: TNC’s threaded design prevents vibration loosening in mobile/marine applications.
Q: Can it be pole-mounted for base stations?
A: Absolutely. 150g weight and 90° vertical coverage suit tripod/pole installations.
Q: Is ground plane required?
A: Optional. Performs well ground-independent but add a 70mm ground plane for peak ≥3dBi gain.
Q: How does ≤3dB axial ratio help?
A: Minimizes signal polarization mismatch loss in urban canyons or forested areas.
Q: Maximum voltage tolerance?
A: Handles 12V DC (industry standard for survey receivers like Trimble/Leica).
Q: Warranty for field use?
A: ROHS-compliant materials ensure longevity in humid/chemically exposed sites.
