GL-DY018
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

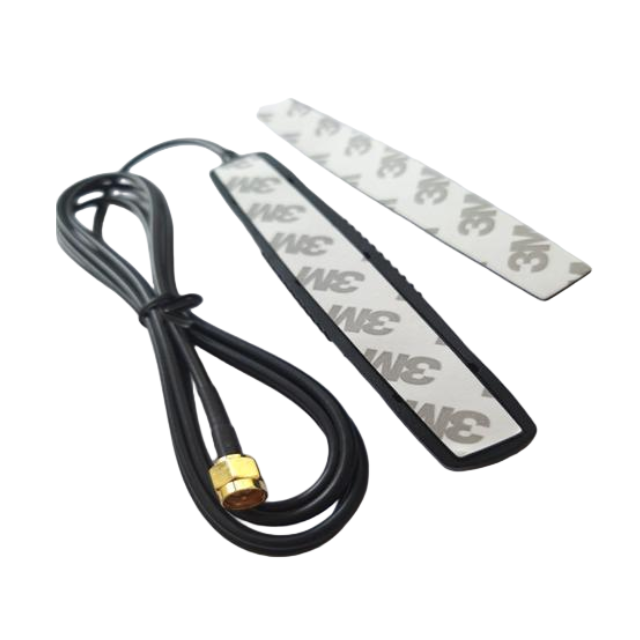

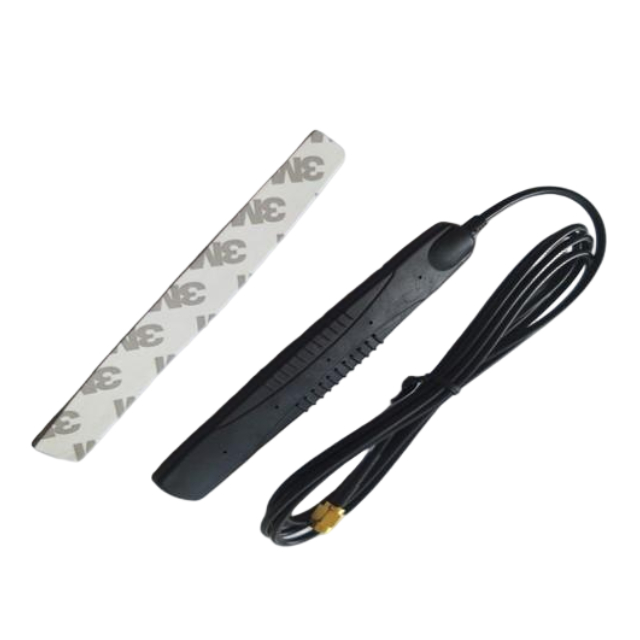

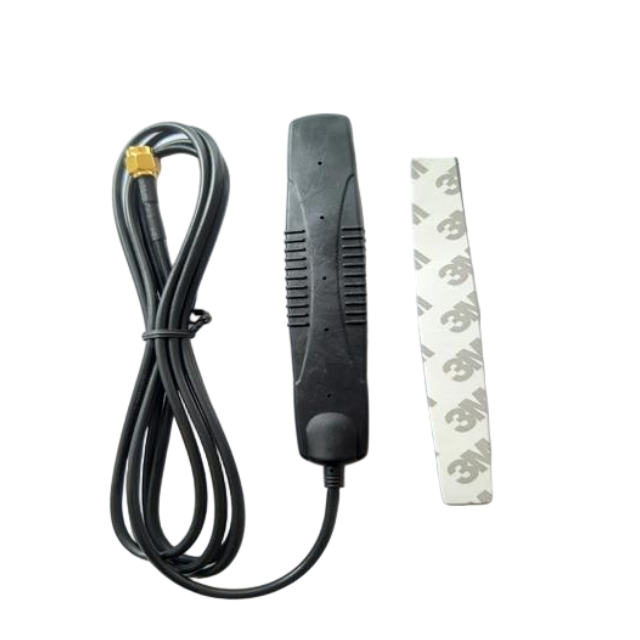

GSM Patch Antenna | |
GL-DY018 | |
Electrical Index | |
Frequency-MHz | 700-2700 |
VSWR | ＜2.0 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Gain-dBi | 4 |
Mechanical Index | |
Cable Length | LMR100,1.2m |
Connector | SMA male |
Antenna Dimension-mm | 121*21.5 |
Installation Way | 3M sticky |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperture-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Differences between similar antennas
P/N | GL-DY018 | GL-DY019 | GL-DY022 |
Gain | 4 | 5 | 3 |
V.S.W.R. | 2 | 2 | 2 |
Product Introduction
1. Full Spectrum Coverage
Supports all 4G/LTE bands (700-2700MHz) including GSM, making it compatible with global networks for IoT/M2M deployments.
2. Industrial-Grade Durability
Withstands extreme conditions: -40°C to +85°C temperatures, 95% humidity, and vibrations (10-55Hz/1.5mm amplitude), ideal for harsh environments.
3. Hassle-Free Installation
3M adhesive mounting + 1.2m LMR100 cable with SMA male connector enables tool-free deployment on any surface in <60 seconds.
4. Optimized Signal Reliability
4dBi vertical polarization gain and <2.0 VSWR ensure stable connections in moving vehicles/remote locations.
5. Eco-Safe & Compact Design
ROHS-compliant construction with ultra-slim profile (121×21.5mm) fits confined spaces while meeting environmental standards.
IoT Device Boost: Attach to smart meters/agricultural sensors in remote farms
Vehicle Telematics: Install on fleet trucks/taxis for uninterrupted 4G tracking
Mobile Routers: Enhance signal for portable Wi-Fi hotspots in RVs/camping
Industrial Control: Mount on factory robots/machinery in high-vibration zones
Marine Equipment: Water-resistant performance for boat monitoring systems
FAQ
Q:Can I get one sample?
A:Yes, sample is available.
Q:What's the delivery time?
A:3-5 working days for the sample, 10-15 working days for quantity below 5K.
Q: What frequency range does the GSM Patch Antenna cover?
A:The GSM Patch Antenna is designed to operate within a broad frequency range of 700-2700 MHz. This wide range ensures compatibility with various GSM, 3G, and LTE networks, providing reliable and robust connectivity for diverse applications.
Q: What type of cable is included with the antenna, and what is its length?
A: The GSM Patch Antenna comes equipped with an LMR100 cable that is 1.2 meters in length. This optimal length allows for flexible installation while maintaining excellent signal quality and minimizing signal loss.
Q: What type of connector does the GSM Patch Antenna use?
A:Our GSM Patch Antenna utilizes an SMA male connector, ensuring a secure and reliable connection to your devices. This type of connector is widely used and valued for its excellent performance and ease of installation.
Q: How is the GSM Patch Antenna installed?
A: Installation of the GSM Patch Antenna is simplified through a 3M sticky installation method. This adhesive backing allows for a strong bond to various surfaces, providing a hassle-free setup without the need for additional mounting hardware.
Q: Can this antenna be used for outdoor applications?
A: The GSM Patch Antenna is designed for both indoor and outdoor use. Its robust construction and versatile adhesive backing make it suitable for a variety of environments, ensuring reliable performance wherever it is installed.
Q: What are the typical applications for the GSM Patch Antenna?
A:The GSM Patch Antenna is perfect for enhancing signal strength in various applications, including mobile communication systems, IoT devices, and remote monitoring solutions. Its broad frequency range and high-performance specifications make it ideal for both commercial and personal uses.
Q: Is the GSM Patch Antenna weatherproof?
A: While the GSM Patch Antenna is built to withstand various environmental conditions, we recommend using it in a sheltered location to prolong its lifespan. For harsh outdoor environments, consider additional protective measures to ensure optimal performance.
Q: Is there a warranty included with this product?
A:Yes, the GSM Patch Antenna comes with a standard warranty that covers manufacturing defects. Please refer to the warranty policy included with your product for specific terms and conditions, ensuring your purchase is protected.
