GL218D
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna | Frequency Range | 1559.052~ 1602MHz 1164~ 1259MHz |
Polarization | RHCP | |
Axial Ratio | ≤3dB | |
V.S.W.R | ≤2.0 | |
Peak Gain | ≥3dBi | |
Impedance | 50 Ω | |
Horizontal Coverage Angle | 360 ° | |
Vertical Coverage Angle | 5 °~90 ° | |
LNA | Gain | B1/L1/G1/E1/E2：40±2dB B2/L2/G2/L5/E5a/E5b：42±2dB |
Noise Figure | ≤1.5dB | |
Supply Voltage | 3.3~ 12V DC | |
Current Consumption | ≤60mA | |
V.S.W.R | ≤2.0 | |
Mechanical | Cable | RG58 or others |
Connector | BNC or others | |
Dimension | Φ96mm | |
Mounting Method | Screw | |
Radome Material | ABS | |
Environmental | Operating Temperature | -40℃~+70℃ |
Storage temperature | -40℃~+70℃ | |
Relative Humidity | Up to 95% (Non condensing) | |
Ingress Protection | IP67 | |
Product Introduction
Multi-System Compatibility: Supports GPS (L1/L2), GLONASS (G1/G2), Galileo (E1/E5), and BeiDou (B1/B2) frequencies (1164-1602MHz), ideal for global positioning accuracy.
High-Performance LNA: Integrated Low-Noise Amplifier (40±2dB gain) and ≤1.5dB noise figure ensure clear signal reception in weak-signal areas.
Rugged IP67 Design: Waterproof and dustproof housing (ABS radome) with screw-mounting, suitable for harsh outdoor environments.
Wide Voltage Range: Operates on 3.3-12V DC with low power consumption (≤60mA), compatible with most GNSS receivers and IoT devices.
Precision Coverage: 360° horizontal and 5°-90° vertical angles for reliable signal acquisition in dynamic applications.

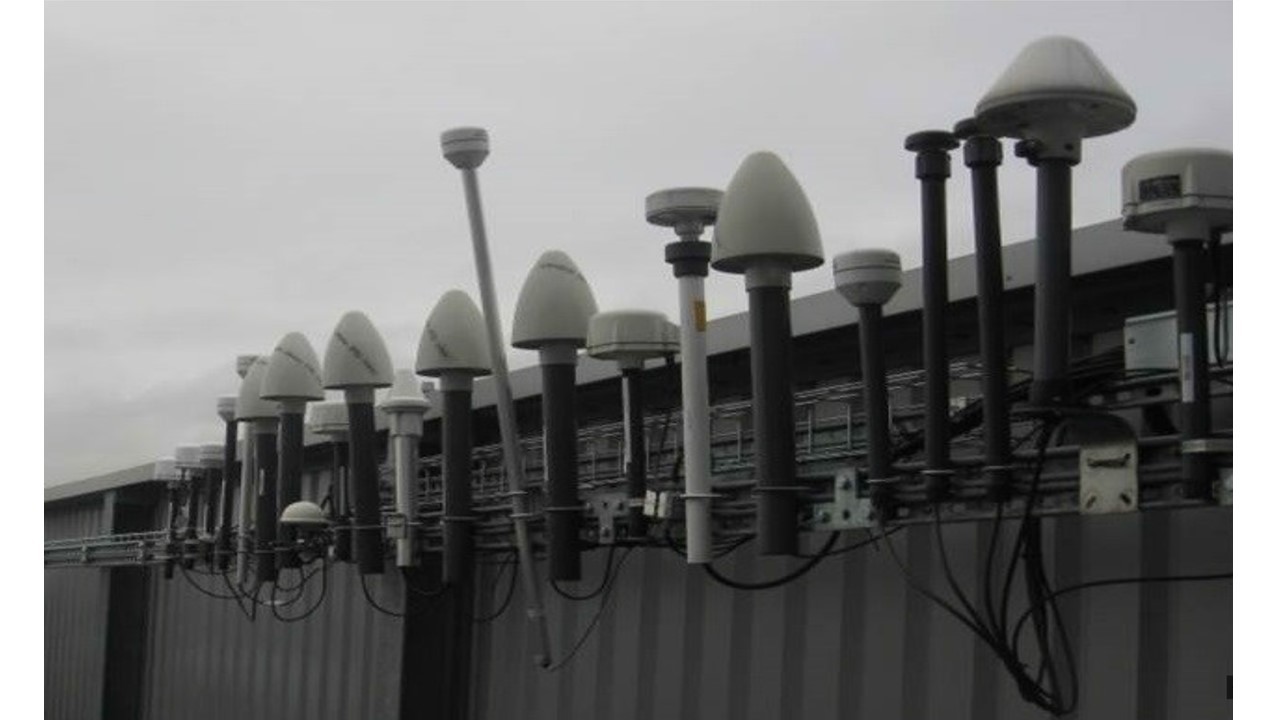

Application scenarios
Precision agriculture equipment requiring real-time GPS/GLONASS data.
Marine navigation systems and autonomous drones.
Construction machinery telematics and geodetic surveying.
IoT asset tracking in extreme weather conditions.
FAQ
Q:Is this antenna compatible with Galileo and BeiDou systems?
A:Yes, it covers E1/E5 (Galileo) and B1/B2 (BeiDou) bands for global multi-system support.
Q:Can it be used in saltwater environments?
A:The IP67 rating ensures resistance to water and dust, making it suitable for marine use.
Q:What cable length is included?
A:The default cable is RG58 (length unspecified); contact the manufacturer for customization.
Q:Does it require an external power supply?
A:No, it draws power (3.3-12V DC) directly from the connected GNSS receiver.
Q:How to mount the antenna securely?
A:Use the G3/4-14 screw thread for permanent installation on vehicles or equipment.
Q:Is the BNC connector corrosion-resistant?
A:Yes, the connector is designed for durability in humid or salty conditions.
Q:What’s the typical lifespan in extreme temperatures?
A:Built for -40°C to +70°C operation, it ensures long-term reliability in harsh climates.
Q:Does it work with legacy GPS devices?
A:Yes, it supports L1 (1575.42MHz) for compatibility with older GPS systems.
