NS-SEC-120
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |

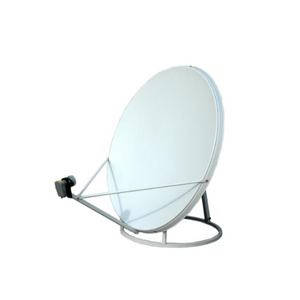

Product Introduction
Broad Frequency Coverage
Covers a wide range from 3.4 - 31GHz across multiple bands like Ku, Ka, S, etc. This allows it to be used in diverse communication systems, from satellite to terrestrial, ensuring compatibility with various frequency - dependent applications.
High Gain Performance
Offers high gain values (e.g., >30.98dBi in some bands), which means it can effectively amplify and receive/transmit signals over long distances. This is crucial for applications where signal strength is key, such as in remote satellite communication links.
Customization Options
Supports choices like aluminum or carbon fiber construction, different frequency bands (L, X, C, etc.), and manual or motorized operation. This flexibility enables it to be tailored to specific project needs, whether for lightweight (carbon fiber) or industrial - strength (aluminum) setups.
Robust Construction & Durability
Features aluminum sheet stamping forming, hot - dip galvanizing, and multiple layers of primer and topcoat. This provides strong corrosion resistance, making it suitable for harsh environments, and ensures a service life of over 20 years.
Precision Adjustment
Allows for fine adjustment of AZ (azimuth) and EL (elevation) angles with an accuracy of ≤0.1°. This precision is vital for aligning the antenna perfectly in satellite communication to get the best signal reception and transmission.
Application scenarios
Military Comms: Secure multi-band operations in extreme conditions
Satellite Ground Stations: High-precision signal tracking
Polar Research: Reliable performance in ice-prone environments
Broadcast Uplinks: CCIR580-compliant HD transmission
Disaster Response: Wind-resistant emergency communication
Q: What wind speeds can it withstand?
A: Maintains accuracy at 72-97km/h; survives 200km/h when locked skyward.
Q: Does it support ice accumulation?
A: Yes, operates normally under 13mm ice and survives 25mm buildup.
Q: Which frequency bands are supported?
A: Standard: C(3.4-4.2GHz), Ku(10.7-14.5GHz), Ka(17.7-31GHz). Optional: L/S/X/QV-band.
Q: What's the antenna lifespan?
A: ≥20 years with hot-dip galvanizing + dual-layer primer/topcoat protection.
Q: Can it handle seismic activity?
A: Yes, rated for 0.3G horizontal / 0.1G vertical seismic forces.
Q: Is polarization adjustable?
A: Yes, 360° continuous polarization rotation + linear/circular options.
Q: What's included in the package?
A: Antenna only (optional: BUC, LNB, modem, servo system, installation tools).
Q: How precise is the positioning?
A: ≤0.1° AZ/EL fine-adjustment accuracy with continuous 360° movement.
