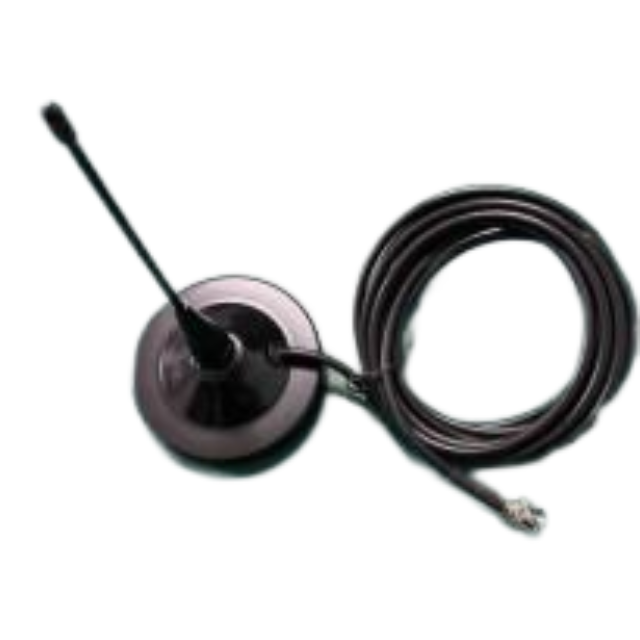

868 Magnet Antenna | |
GL089-868 | |
Electrical Index | |
Frequency-MHz | 868 |
VSWR | ＜1.5 |
Gain-dBi | 3 |
Normal Impedance-Ω | 50 |
Polarization | Liner |
Mechanical Index | |
Cable Length | RG174,3m |
Connector | BNC |
Antenna Dimension-mm | φ48*92 |
Installation Way | Magnet |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Single - Frequency Precision: The GL089 - 868 is specifically designed for the 868MHz frequency band, making it ideal for applications that require dedicated operation in this range, such as European ISM band devices. This focused frequency ensures stable signal transmission and reception within the 868MHz band, reducing interference from other frequency signals.
Compact and Lightweight Design: With dimensions of φ48*92mm and a lightweight build, the antenna is highly portable and easy to integrate into various devices. Its compact size allows for flexible placement, whether on small IoT sensors, portable communication equipment, or other space - constrained applications.
Magnetic Mount for Easy Installation: The magnetic base enables quick and secure installation on metal surfaces, such as vehicle roofs, metal enclosures, or industrial equipment. This tool - free installation method saves time and effort, making it suitable for both temporary and permanent setups.
Stable Electrical Performance: Featuring a VSWR of < 1.5 and a normal impedance of 50Ω, the antenna ensures efficient power transfer and minimal signal reflection. These electrical characteristics contribute to a reliable connection, making it suitable for applications where signal stability is crucial, such as remote monitoring systems.
Environmental Durability: The GL089 - 868 is ROHS compliant and can operate in temperatures ranging from - 40℃ to + 85℃, as well as humidity levels between 5% and 95%. It can also withstand vibrations (10 to 55Hz with 1.5mm amplitude for 2 hours), making it suitable for both indoor and outdoor environments, including harsh industrial and outdoor scenarios.
Application scenarios
Industrial IoT: Ensures stable connectivity for machinery monitoring in factories.
Smart Metering: Reliable data transmission for utility meters in remote areas.
Vehicle Tracking: Robust antenna for GPS/telematics systems on trucks or fleets.
Agriculture Sensors: Supports wireless communication in smart farming setups.
Remote Monitoring: Ideal for environmental sensors in off-grid locations.
FAQ
Q: What connector type does this antenna use?
A: BNC connector with a 3m RG174 cable.
Q: Is the antenna waterproof?
A: While not fully waterproof, it’s built for rugged environments and humidity (5-95%).
Q: Can it handle vibrations?
A: Yes, tested for vibrations (10-55Hz with 1.5mm amplitude for 2 hours).
Q: What’s the operating temperature range?
A: -40°C to +85°C, suitable for extreme climates.
Q: Is it compatible with LoRa devices?
A: Yes, optimized for 868MHz bands used in LoRa and LPWAN systems.
Q: Does the magnet damage surfaces?
A: No, the magnet is strong but designed for non-destructive removal.
Q: Is this antenna ROHS certified?
A: Yes, fully compliant with ROHS environmental standards.
Q: Can I replace the cable?
A: Contact support for RG174 cable replacements or extensions.
