3G Rubber Antenna | |
GL-DY402S | |
Electrical Index | |
Frequency-MHz | 900-2100 |
Gain-dBi | 2.5 |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |

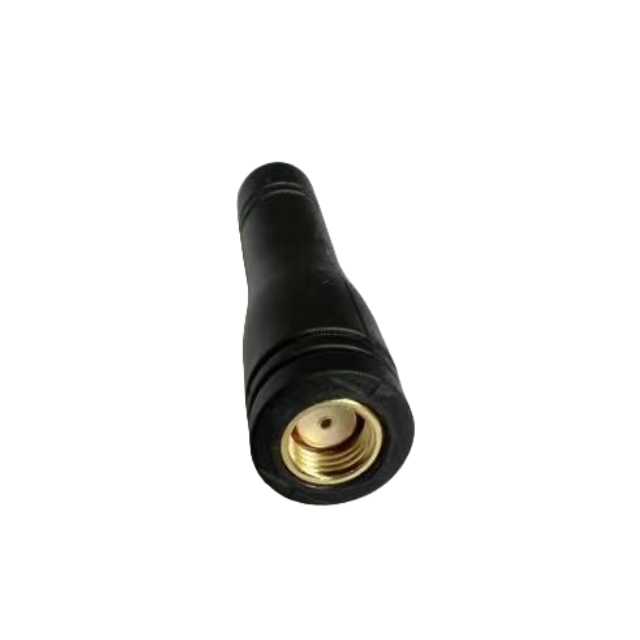

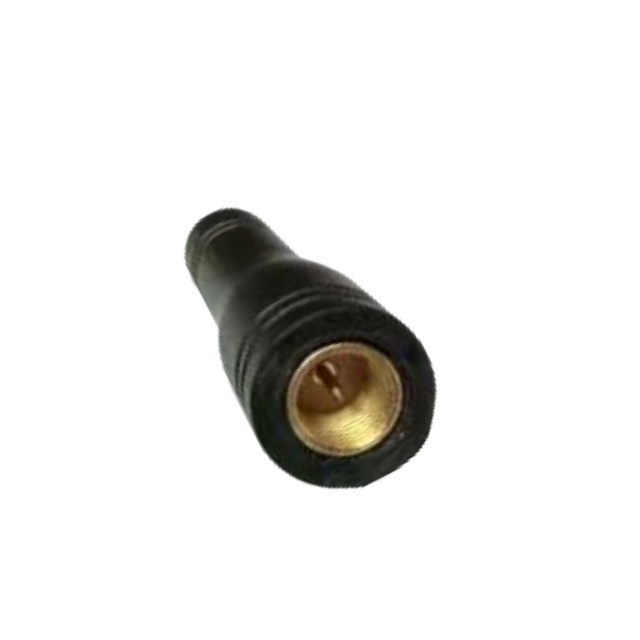

Connector | SMA male or RP-SMA male |
Antenna Dimension-mm | Ø12*50 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL-DY402S | GL-DY402 | GL405 |
| Frequency range-mhz | 900-2100 | 2400-2483 | 824-960/1710-2700 |
| Connector | SMA female | RP-SMA male | SMA male |
| Antenna Dimension-mm | Ø12*50 | Ø10*108.5 | Ø8*48 |
Product Introduction
Wide-band GSM Compatibility
Supports 800-2100MHz frequency range, ensuring global compatibility with 2G/3G GSM networks in regions like Europe, Asia, and Africa .
Optimal Signal Performance
With 2.5dBi gain and VSWR < 2.0, it delivers stable signal transmission with minimal interference, ideal for voice and data applications.

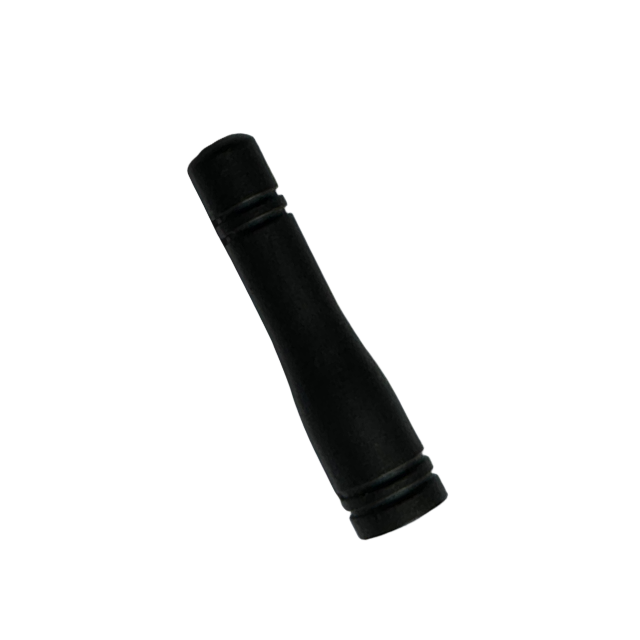

Durable Rubber Construction
Made of rugged rubber material, the antenna withstands -40℃ to +85℃ temperatures and 5-95% humidity, suitable for harsh outdoor environments .
RoHS Compliance
Meets environmental standards, making it safe for use in industrial and consumer applications without hazardous substances .
Easy Installation
Features an SMA straight male connector and compact Ø12*50mm design, enabling quick integration into vehicles, devices, or infrastructure .
Vehicle-mounted Communications
Installed on trucks, buses, or emergency vehicles for reliable GSM connectivity, supporting fleet management and real-time tracking .
Industrial IoT Monitoring
Used on factory equipment to transmit sensor data via GSM networks in areas with limited 4G coverage .
Remote Security Systems
Deployed on outdoor CCTV cameras for GSM-based remote monitoring, ensuring connectivity in rural or low-signal regions .

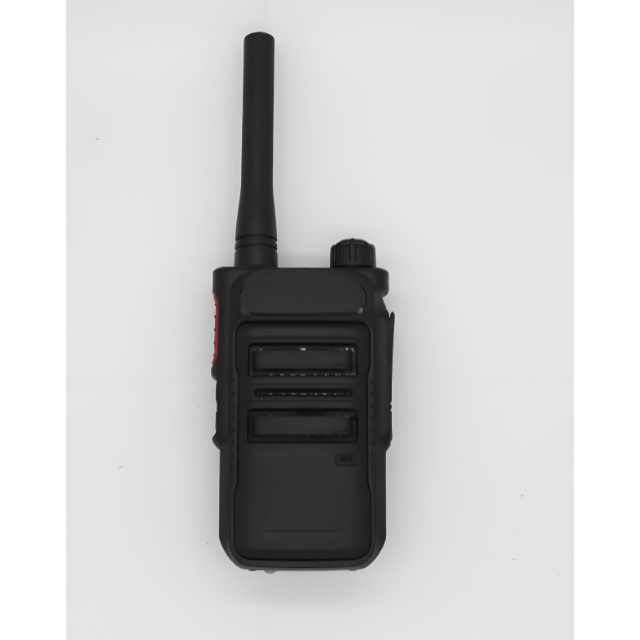

Portable Communication Devices
Integrated into handheld radios or portable base stations for temporary communication setups during events or emergencies .
Agricultural Remote Sensing
Mounted on agricultural machinery to send data from soil moisture or crop sensors via GSM networks .
Q:What frequency bands does GL-DYG401 support?
A:The antenna operates at 800-2100MHz, compatible with global GSM/3G networks .
Q:What is the gain and VSWR?
A:It provides 2.5dBi gain with VSWR < 2.0 for stable signal transmission .
Q:Is the antenna suitable for outdoor use?
A:Yes, it withstands -40℃ to +85℃ and 5-95% humidity, ideal for outdoor environments .
Q:What connector type does it use?
A:The antenna features an SMA straight male connector for easy installation .
Q:Is it environmentally friendly?
A:Yes, it is ROHS compliant, meeting strict environmental standards .
Q:What is the antenna's dimension?
A:It measures Ø12*50mm, designed for compact installations .
Q:What is the polarization type?
A:The antenna uses linear polarization for consistent signal directionality .
Q:What is the impedance?
A:The input impedance is 50Ω, matching standard GSM devices .
