GL046-19
Asialeren
8517710000
| Quantity: | |
|---|---|
| PDF Export | |
Item | Specifications | |
Antenna | Frequency Range | 700~960/ 1710~2690MHz |
Polarization | Linear | |
Gain | 2.0dBi（Zenith） | |
V.S.W.R（ min） | <2.5 | |
Impedance | 50Ω | |
Mechanical | Cable | RG174 or others |
Connector | SMA or others | |
Radome Material | ABS | |
Mounting Method | Magnet | |
Environmental | Operating Temperature | -40℃~+85℃ |
Relative Humidity | Up to 95% | |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours | |
Environmentally Friendly | ROHS Compliant | |

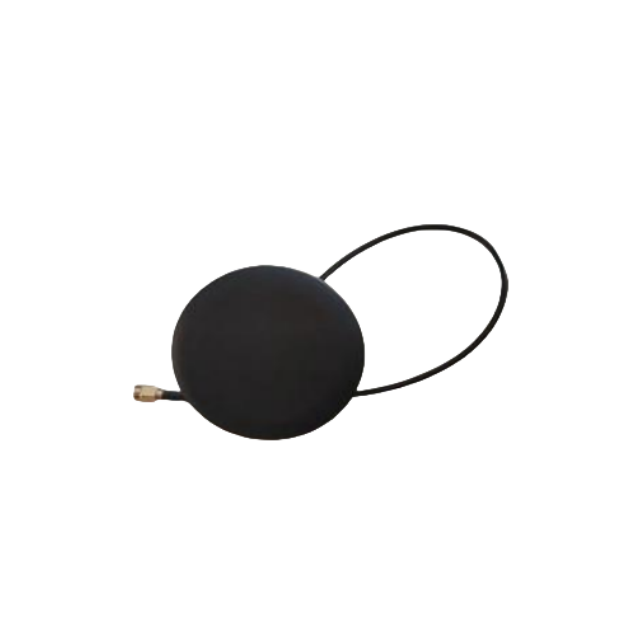

Product Introduction
Wide Frequency Band Coverage：Operating across the 700 - 960MHz and 1710 - 2690MHz frequency bands, the GL046 - 19 4G screw antenna is highly versatile. It can support various 4G networks, ensuring compatibility with a wide range of devices and service providers, making it suitable for different regions and applications.
Decent Signal Gain：With a gain of 2.0dBi at the zenith, the antenna can effectively boost the 4G signal. Although the gain may seem modest, it is sufficient to improve signal strength in areas with weak 4G coverage, reducing signal dropouts and enhancing the overall connection quality.
Low VSWR and Standard Impedance：The Voltage Standing Wave Ratio (VSWR) is less than 2.5, and the impedance is 50Ω. A low VSWR ensures efficient power transfer from the transmitter to the antenna, minimizing signal reflection. The 50 - ohm impedance is a standard in the industry, making it easy to integrate with other components in a 4G system.
Magnetic Mounting Convenience：Featuring a magnetic mounting method, it can be easily attached to any metal surface. This allows for quick and flexible installation, whether it's on a vehicle's body, a metal pole, or a router's metal enclosure. The magnetic base provides a secure hold, even in vibrating environments.
Environmentally Friendly and Durable：Being ROHS compliant, the antenna is environmentally friendly. It can operate within a wide temperature range of - 40°C to + 85°C and a relative humidity of up to 95%. It can also withstand vibrations from 10 to 55Hz with a 1.5mm amplitude for 2 hours, making it suitable for use in various harsh environmental conditions.
Application scenarios
Vehicle-mounted 4G/telematics systems (e.g., fleet tracking, GPS).
Industrial IoT sensors in manufacturing or logistics.
Outdoor cellular repeaters and base stations.
Remote monitoring equipment (e.g., agricultural or environmental sensors).
Portable communication devices in harsh environments.
FAQ
Q:What frequencies does this antenna cover?
A:It supports 700-960 MHz and 1710-2690 MHz, covering 4G LTE and IoT bands.
Q:Is the magnet strong enough for vehicle use?
A:Yes, the magnetic mount ensures secure attachment to metal surfaces even during motion.
Q:Can I replace the cable or connector?
A:Optional RG174 cable and SMA connectors are available; contact us for customization.
Q:How does it perform in rainy conditions?
A:The ABS radome provides basic water resistance, but avoid prolonged submersion.
Q:What is the peak gain of this antenna?
A:Up to 4.68dBi at 2690 MHz, optimized for high-frequency applications.
Q:Is this antenna compatible with 5G networks?
A:No, it’s designed for 4G/LTE; check our 5G models for higher frequency support.
