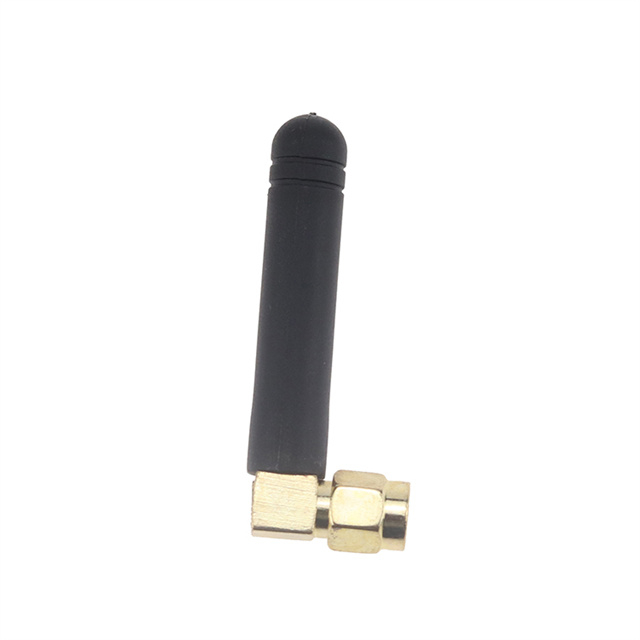

GSM Rubber Antenna | |
GL-DYG406 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2690 |
Gain | 2.0dBi |
VSWR | ＜2.0 |
Normal Impedance-Ω | 50 |
Polarization | Linear |
Mechanical Index | |
Connector | SMA Right Angle male |
Antenna Dimension | 8*48 |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
Dual-Band 3G/GSM Coverage (824-960MHz + 1710-2170MHz)
Supports global 3G networks and legacy GSM applications, ideal for older industrial equipment and M2M communication.
Right-Angle SMA Male Connector
Enables flexible installation in tight spaces (e.g., control boxes, vehicle dashboards) without cable strain.
Extreme Environment Ready (-40°C to +85°C | 5-95% Humidity)
Maintains signal integrity in harsh settings like construction sites, factories, or outdoor cabinets.
Optimized Signal Efficiency (VSWR <2.0)
Reduces power loss for reliable connectivity in low-coverage areas like basements or rural zones.
Compact & ROHS-Compliant Design (Ø8×48mm)
Durable rubber housing resists impacts and corrosion, certified for eco-safe industrial use.
Application scenarios
Legacy Industrial Systems: Retrofit aging equipment (scada, alarms) lacking modern connectivity.
Fleet Tracking: Provide 3G backup for GPS trackers in logistics vehicles.
Remote Utility Meters: Transmit data from water/electricity meters in low-signal rural areas.
Vending Machines: Enable cashless payments via 3G in malls or highways.
Backup Communication: Ensure SMS/call functionality during 4G/5G outages.
Q: Does this work with 4G/LTE networks?
A: No. It’s designed for 3G/GSM bands (824-960MHz and 1710-2170MHz).
Q: Why choose a right-angle SMA connector?
A: It saves space and prevents cable damage in confined installations (e.g., control panels).
Q: Is the 2.0dBi gain sufficient for weak signal areas?
A: Yes for short-range use (<2km). Pair with a signal booster for longer distances.
Q: Can it withstand direct rain/snow?
A: The rubber housing is weather-resistant but not fully waterproof. Install in sheltered locations.
Q: What devices support this antenna?
A: 3G modems, industrial routers, M2M gateways, and legacy GSM devices with SMA female ports.
Q: How does VSWR <2.0 benefit performance?
A: Ensures >90% power transmission efficiency, minimizing data drops in noisy environments.
Q: Is it compatible with 5G systems?
A: No. This antenna only covers 3G/GSM frequencies.
