GL129
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Frequency range（MHz） | 698-960/1710-2170 |
Gain（dBi） | 3 |
Polarization | Vertical |
Impedance (Ω) | 50 |
Max Power (W) | 50 |
VSWR | ≤2.0 |
Connector | IPEX |
Dimensions(mm) | 30x15x1.1 |
Cable | RG1.13/RG1.37 |
Temperature (℃) | -30~60 |
Humidity (%) | 5~95 |
| Difference index between product numbers (P/N) | |||
| Index/(P/N) | GL129 | GL148 | GL-DY152 |
| Frequency range-mhz | 698-960/1710-2170 | 868 | 698-6000 |
| Gain-dBi | 3 | 3 | 5 |
| connector | UFL | IPEX | IPEX |

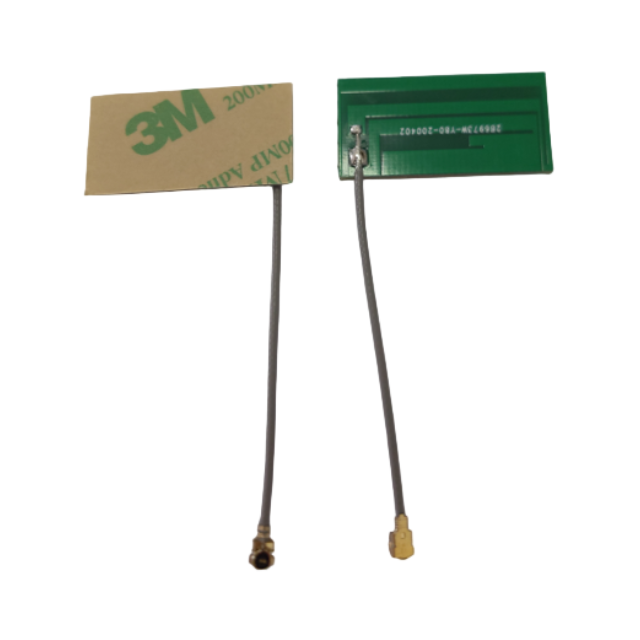

Product Introduction
1. Quad-Band Coverage
Supports all GSM frequencies (850/900/1800/1900 MHz) for global compatibility in 150+ countries.
2. Industrial Durability
Operates in extreme conditions (-40°C to 85°C) with 95% humidity tolerance – ideal for outdoor/rugged applications.
3. High Efficiency
71.4% radiation efficiency at 820MHz (Page 4) ensures optimal signal transmission with minimal power loss.
4. Ultra-Compact Design
Space-saving 30x15x1.1mm profile + adhesive mounting for flexible integration into compact devices.
5. 50W High-Power Handling
Supports high-transmission applications (e.g., industrial routers, remote telemetry) without signal degradation.
Application scenarios
• POS Terminals: Reliable payments processing in retail environments
• Smart Metering: Utility data transmission in extreme weather
• Fleet Trackers: GPS/GSM vehicle monitoring systems
• Industrial IoT Sensors: Factory automation equipment
• Emergency Communication Devices: Backup systems for disaster zones
• Battery-Powered Devices: Low-loss efficiency extends battery life
FAQ
Q: What frequency bands does GL129 support?
A: Full GSM quad-band coverage: 850MHz, 900MHz, 1800MHz, and 1900MHz.
Q: How is this antenna mounted?
A: Uses industrial-strength adhesive backing. Compatible with flat/curved surfaces.
Q: What's the operating temperature range?
A: Certified for -40°C to 85°C , suitable for arctic environments to engine compartments.
Q: Why choose a patch antenna over whip antennas?
A: 1.1mm ultra-low profile resists damage, avoids snagging, and enables stealth installation.
Q: What is the actual gain performance?
A: See efficiency tables Peaks at 3dBi gain with 71.4% efficiency at 820MHz.
Q: Can it handle high-power transmissions?
A: Yes. Rated for 50W max power – ideal for base stations/repeaters.
Q: Is the radiation pattern omnidirectional?
A: Vertical polarization with optimized patterns. E-plane/H-plane diagrams available in datasheet.
Q: What cable type is included?
A: Standard RG1.13 or RG1.37 coaxial cable with UFL connector. Custom lengths available.
