GL107-2400
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

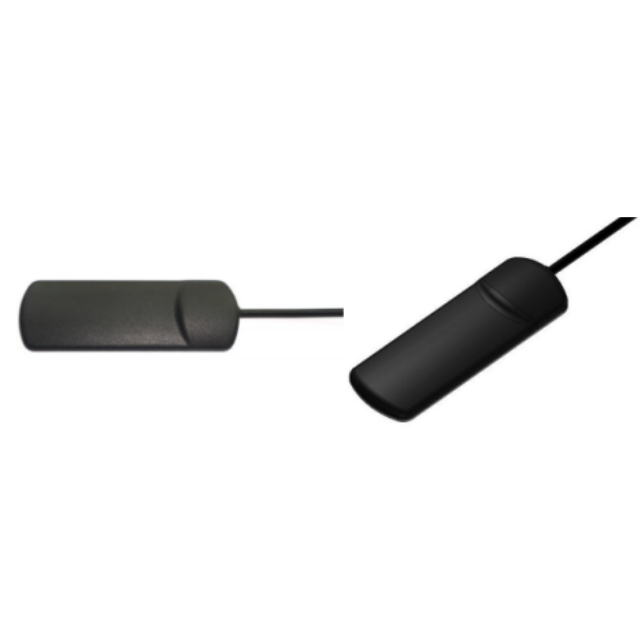

2.4G Sticky Antenna | |
GL107-2400 | |
Electrical Index | |
Frequency-MHz | 2400-2500 |
VSWR | <1.5 |
Nominal Impedance-Ω | 50 |
Polarization | Vertical |
Gain-dBi | 2.5 |
Mechanical Index | |
Cable Length | RG174 or RG1.13 |
Connector | UFL |
Antenna Dimension-mm | 115.6*21.7*5.8 |
Installation Way | 3M sticky |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
1. Wideband Design, Strong Compatibility
Supporting the 2400-2500MHz frequency band, it perfectly adapts to 2.4GHz wireless devices such as WiFi, Bluetooth, and Zigbee, making it suitable for a variety of communication scenarios.
2. High Gain Performance, More Stable Signals
With a gain of up to 2.5dBi, it effectively enhances signal reception and transmission capabilities, reduces blind spots, and improves connection stability.
3. Low VSWR, High Transmission Efficiency
A voltage standing wave ratio (VSWR) of less than 1.5 ensures minimal signal transmission loss and more efficient and reliable data transmission.
4. 3M Adhesive Backing, Convenient and Stable Installation
Using 3M strong adhesive backing, installation is simple and quick, requiring no drilling, and is suitable for a variety of flat surfaces, ensuring durability.
5. Wide Temperature and Weather-Resistant Design, Suitable for Harsh Environments
With an operating temperature range of -40°C to +85°C and a humidity tolerance of 5% to 95%, it is suitable for a variety of harsh indoor and outdoor environments.
Application Scenarios
IoT Devices: Such as smart home sensors and wireless modules
Drones and FPV Systems: Improve image transmission and control signal stability
Industrial Wireless Devices: For industrial communications such as PLCs and remote monitoring
Routers and APs: Enhance WiFi coverage
Security Monitoring: Enhance wireless camera signals
In-Vehicle and Mobile Devices: Portable installation enhances mobile communication capabilities
FAQ
Q: What frequency bands does this antenna support?
A: It supports the 2400-2500MHz frequency band, suitable for 2.4GHz wireless communication.
Q: Is it compatible with all devices with a UFL interface?
A: Yes, any device with a UFL interface is compatible.
Q: Can it be re-applied after installation?
A: The 3M adhesive is single-use and will lose its stickiness after removal. It is recommended to replace it with a new adhesive.
Q: What is the antenna gain?
A: The gain is 2.5dBi, suitable for medium- and short-range signal enhancement.
Q: Does it support the 5GHz band?
A: No, this antenna is only suitable for the 2.4GHz band.
Q: Is the cable length optional?
A: The standard cable is RG174 or RG1.13. The length can be customized according to customer needs.
