GL806
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |

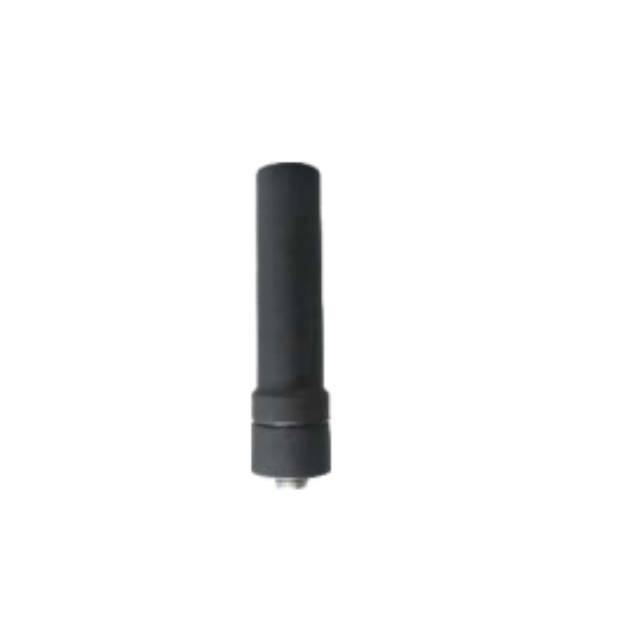

Item | Hand Held Antenna |
PN | GL806 |
Frequency Range (MHz) | 824-960/1710-2700MHz |
Impedance (Ω) | 50 |
V.S.W.R | ≤ 1.5 |
Gain (dBi) | 2.5 |
Connector | SMA |
Length-mm | 60 |
Weight | 56g |
Product Introduction
1.Dual-band full coverage, adaptable to multiple device communication needs: Supports dual-band operation (824-960MHz and 1710-2700MHz), covering the core operating frequencies of cellular communication devices, walkie-talkies, portable routers, etc. It meets the communication needs of multiple scenarios without requiring antenna replacement, avoiding signal interruptions caused by frequency band incompatibility. Suitable for diverse scenarios such as outdoor operations and emergency communication.
2.Compact and lightweight design, maximizing portability: Only 60mm long and weighing 56g, equivalent to the weight of an egg, it can be easily held or mounted on devices without taking up extra space. Compatible with handheld walkie-talkies, portable terminals, and other mobile devices, it is convenient for outdoor carrying and storage, solving the pain point of traditional bulky and inconvenient antennas.
3.Low VSWR + Precise Impedance for Efficient and Stable Signal Transmission: VSWR (Voltage Standing Wave Ratio) ≤1.5, far exceeding the industry standard of ≤2.0, significantly reducing signal reflection loss; 50Ω standard impedance precisely matches mainstream communication equipment, ensuring signal transmission efficiency exceeding 90%, coupled with 2.5dBi gain, balancing signal coverage and stability to meet short-to-medium distance communication needs.
4.SMA Universal Interface for Wide Adaptability: Equipped with an industry-standard SMA connector, compatible with over 90% of handheld walkie-talkies, portable routers, mobile terminals, and other devices. No additional adapters are needed; plug and play, easy installation, even for beginners, and low replacement and maintenance costs.
5.Durable Materials for Outdoor Use: Utilizing a high-toughness shell material, it is drop-resistant and wear-resistant, able to withstand minor impacts and friction during outdoor operations; highly adaptable to various working environments, it can withstand daily outdoor temperature and humidity changes, and is not easily damaged during long-term use, extending its service life.
Application Scenarios
●Outdoor Handheld Walkie-Talkie Communication: Suitable for outdoor adventures, construction site dispatching, and security patrols. Its compact design doesn't hinder handheld operation, and dual-band coverage ensures stable signal over short to medium distances, guaranteeing real-time team communication.
●Portable Router Signal Enhancement: Ideal for outdoor camping and mobile office use, its compact 60mm size allows direct mounting to the router. Dual-band characteristics enhance network signal reception, solving network connectivity problems in areas with weak outdoor signals.
●Emergency Communication Equipment: Serves as an emergency handheld communication terminal antenna in disaster sites such as earthquakes and floods. Lightweight and portable, it can be quickly deployed, and stable signal transmission facilitates efficient communication for rescue personnel.
●Mobile Office/Outdoor Work Communication: Suitable for outdoor surveying, power line inspection, and logistics dispatching. Its compact size doesn't interfere with operation, and dual-band coverage ensures stable data transmission with backend systems.
●Amateur Radio Communication: Meets the handheld communication needs of radio enthusiasts. Dual-band coverage supports multi-channel communication, low VSWR ensures signal clarity, and its lightweight design makes it easy to carry and use outdoors.
FAQ
Q: What frequency bands does GL806 support?
A: It supports dual bands: 824-960MHz and 1710-2700MHz, compatible with most portable communication devices.
Q: What is the gain of GL806?
A: Its gain is 2.5dBi, balancing signal coverage and stability for short-to-medium distance communication.
Q: What connector type does GL806 use?
A: It uses an SMA connector, widely compatible with walkie-talkies, portable routers, and mobile terminals.
Q: What is the input impedance of GL806?
A: Its input impedance is 50Ω, matching standard communication device requirements.
Q: How small and light is GL806?
A: It has a length of 60mm and weighs only 56g, compact and easy to carry.
Q: What is the VSWR of GL806?
A: Its VSWR is ≤1.5, minimizing signal reflection loss for efficient transmission.
