GL103-90
Asialeren
8517710000
100pc
Accepted
10000pc/day
| Quantity: | |
|---|---|
| PDF Export | |
Item: 5G Magnet Antenna | |
PN: GL103-90 | |
Electrical Index | |
Frequency-MHz | 824-960/1710-2690 |
VSWR | ＜1.5 |
Normal Impedance-Ω | 50 |
Gain-dBi | 3.5 |
Polarization | Liner |
Mechanical Index | |

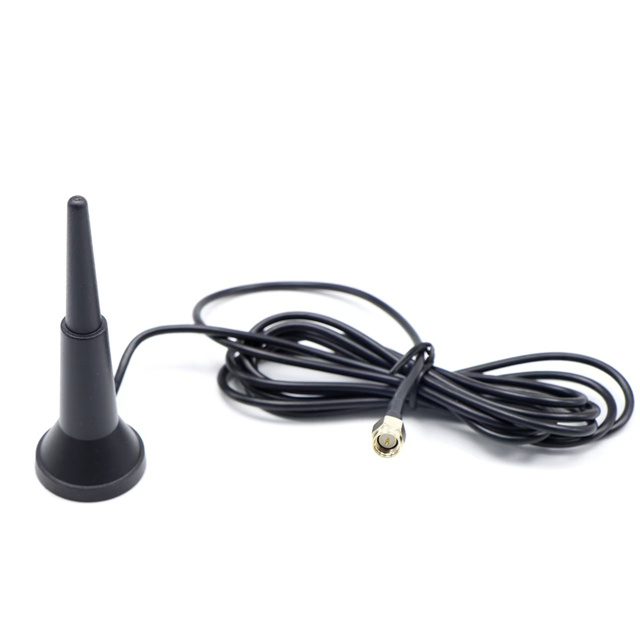

Cable Length | RG174,3m |

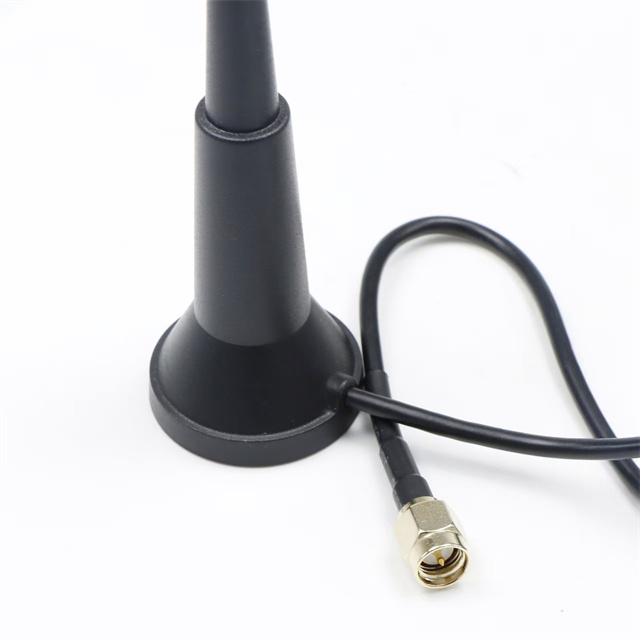

Connector | SMA male |

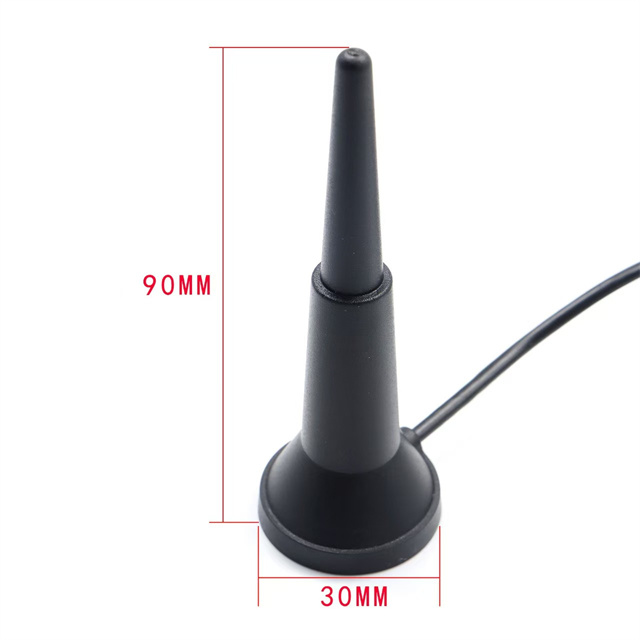

Antenna Dimension-mm | Ø36*90 |
Installation Way | Magnet |
Material | ABS |
Vibration | 10 to 55Hz with 1.5mm amplitude 2hours |
Environmentally Friendly | ROHS Compliant |
Temperature-℃ | -40～＋85 |
Humidity-﹪ | 5～95 |
Product Introduction
✅ Wide Band Coverage, Multi-Network Compatibility
Supports dual-band 824-960MHz and 1710-2690MHz, suitable for multiple communication standards such as 4G/5G, LTE, and GSM, offering multi-functionality.
✅ High Gain Performance, Stronger Signal
With a gain of up to 3.5dBi, effectively improving signal reception and transmission capabilities, suitable for use in areas with weak signal.

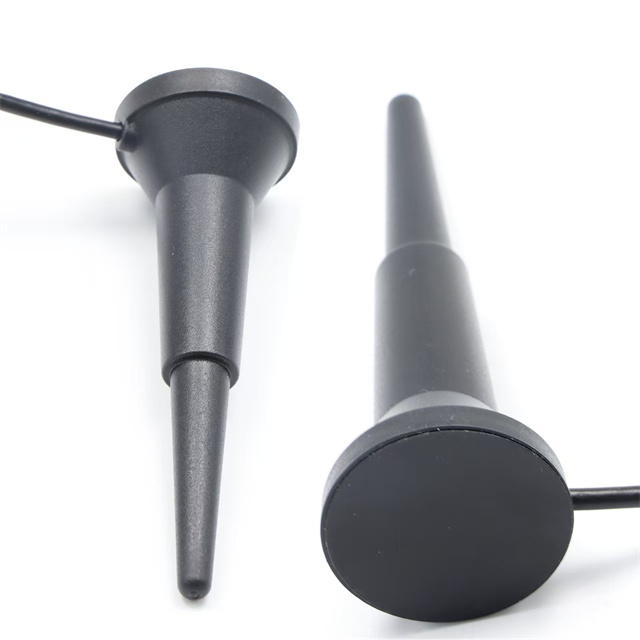

✅ Strong Magnetic Base, Easy Installation
Built-in strong magnetic base, firmly adhering to vehicle roofs and metal surfaces, providing flexible and stable installation, suitable for mobile scenarios.
✅ Industrial-Grade Protection, Strong Weather Resistance
Operating temperature range -40°C to +85°C, vibration-proof design, adaptable to high humidity (5-95%), suitable for outdoor and industrial environments.
✅ Environmentally Compliant, Reliable Quality
RoHS certified, using ABS material and RG174 cable, durable and safe.
Application Scenarios
Vehicle-mounted 5G/WiFi router signal enhancement
Outdoor mobile monitoring systems
Industrial Internet of Things (IoT) device communication
Temporary base stations or relay equipment
Remote data acquisition and transmission systems
Mobile platform communication for ships, agricultural machinery, etc.
FAQ
Q: Does this antenna support 5G networks?
A: Yes, it supports the 1710-2690MHz frequency band, covering the mainstream 5G Sub-6GHz frequency band.
Q: Can the antenna be used on non-metallic surfaces?
A: The magnetic base requires a metal surface to adhere. For non-metallic surfaces, a metal plate or other fixing methods can be used.
Q: Can the cable length be customized?
A: The standard length is 3 meters. Custom lengths are supported; please contact customer service.
Q: Which device interfaces is it compatible with?
A: Standard SMA male connector, suitable for most routers, modems, cellular gateways, etc.
Q: Does it support global frequency bands?
A: Supports 824-960MHz and 1710-2690MHz, covering mainstream frequency bands in North America, Europe, Asia, and other regions.
Q: Is a gain of 3.5dBi suitable for indoor use?
A: Yes, but it is more recommended for use in scenarios with weak signals or mobile applications, such as in vehicles or outdoors.
