Panel and Sector Antennas
In wireless network deployment, panel antennas and sector antennas are two main types of directional antennas.There are significant differences in coverage characteristics and applicable scenarios between the two.Identifying its core differences can help accurately match network needs and maximize performance and coverage.
I. Core Definition and Structure
1. Panel antenna

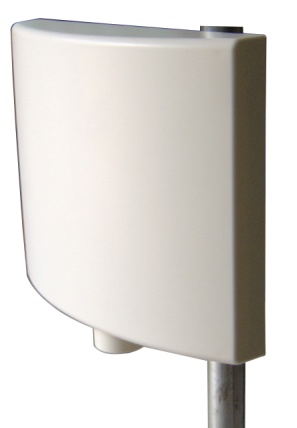

Definition: Directional antenna with high gain and narrow beam as its core characteristics, with strong signal focusing, suitable for precise coverage scenes.

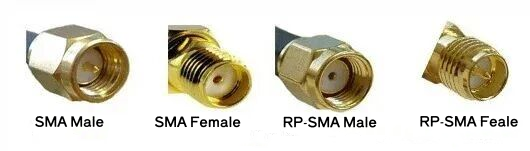

Core structure: consisting of radiating element (dipole/patch/slot), metal reflector, protective radome (fiberglass/Plastic), connectors (N-type/SMA/TNC, etc.), and adjustable mounting brackets.
Key attributes: support horizontal, vertical or dual polarization, compatible with mainstream WiFi bands such as 2.4GHz, 5GHz and 6GHz.It is divided into indoor/outdoor installation.

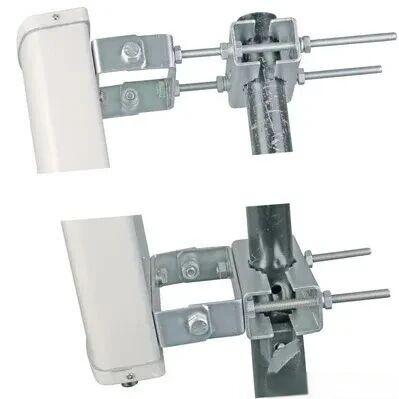

2. Sector antenna

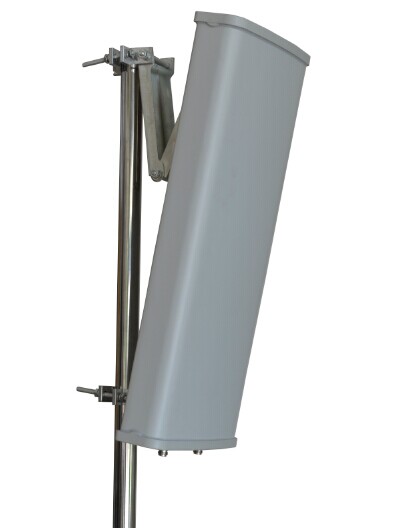

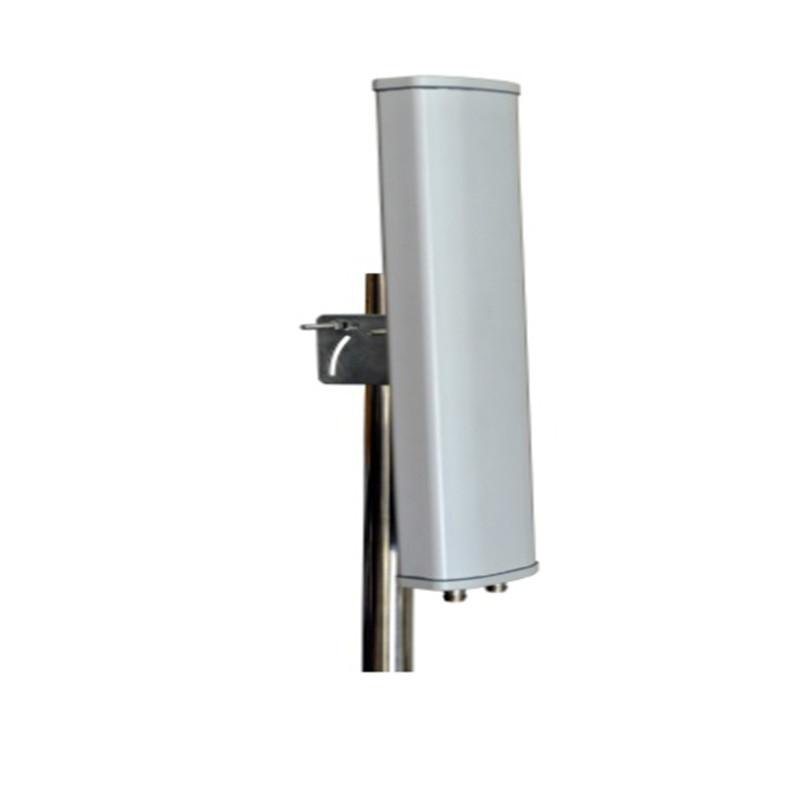

Definition: a semi-directional antenna focusing on a specific arc sector, usually covering an angle of 60 ° -180 °, featuring wide area coverage.Large areas can be covered without requiring too many antennas.
Key attributes: It is mostly used in outdoor scenes, and can achieve 360 ° full coverage through multi-antenna combination.Common in cell sites, large public area WiFi deployments.
二、Core distinction contrast
Contrast dimension | Panel antenna | Panel antenna |
Beam width | Narrow (30 ° -90 °), signal focused | Wide (60 ° -180 °) coverage |
Gain level | Higher, suitable for long-distance transmission | Lower, gain in exchange for coverage |
Dimensions and appearance | Compact and small, visual concealment, good aesthetics | Larger volume, more conspicuous, high space requirement |
Interference resistance | Narrow beam reduces clutter and has strong anti-jamming capability | Narrow beam reduces clutter and has strong anti-jamming capability |
Installation difficulty | Simple, adjustable stand for easy alignment | Complex, sector angle needs to be calibrated accurately during multi-antenna combination |
Cost input | High cost performance, low equipment and installation cost | High cost, large size + complex installation increases overall investment |
Deployment flexibility | Suitable for fixed point-to-point links, with weak flexibility for large area coverage | Modular combination can extend coverage and adapt to multi-scene adjustment |
III. Their respective advantages and applicable scenarios
1. Panel antenna
●Core advantage
◆High gain + narrow beam, outstanding long-distance transmission capability, strong signal stability in obstacle environment;
◆Compact size, indoor and outdoor installation are not abrupt, suitable for beautiful scenes;
◆Wide frequency compatibility, simple installation, controllable cost and high cost performance.
●Typical application

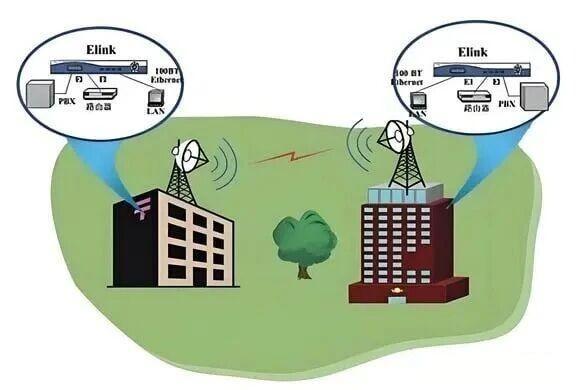

◆Point-to-point wireless link: for example, the wireless connection between two buildings and remote areas of the campus and the core network (instead of physical cable);
◆Directional coverage requirements: indoor office, home precision signal enhancement,Monitoring signal transmission in specific outdoor directions (such as intersections and plant corners);
◆High interference environment: In dense urban areas and multi-device coexistence scenarios, the focused beam can avoid clutter interference.
2. Sector antenna
●Core advantage
◆Wide sector coverage, single antenna can cover a large area, reduce the number of deployments;
◆Flexible modular combination, multi-antenna collocation can achieve 360 ° full coverage, strong scalability;
◆It adapts to multi-device access and is suitable for wide-area scenarios with high user density.
●Typical application
◆Outdoor wide area coverage: WiFi deployment in parks, parks and large outdoor activity sites;
◆Public WiFi hotspots: airports, shopping malls, city centers and other areas requiring extensive signal coverage;
◆Cellular networks and point-to-multipoint connections: scenarios where base station signals are distributed and multiple buildings are connected to a central network (e.g., suburban multi-village networking）.
IV. Key Decision-making Factors for Type Selection
●Coverage requirements: select panel antenna for long-distance precise coverage, and select sector antenna for wide-area coverage;
●Gain requirements: high gain is required for long distance transmission (such as over 1 km), and panel antenna is preferred;Medium and short distance wide coverage, enough sector antenna;
●Environmental characteristics: select panel antenna (strong anti-interference) in urban high-interference areas, and select sector antenna in rural/suburban wide-area unobstructed scenes;
●Installation conditions: select panel antenna with limited space and attention to beauty;There is enough installation space (such as tower and roof) to accept the conspicuous appearance, and the sector antenna is selected;
●Cost and complexity: select panel antenna for simple deployment with limited budget;High cost and complex installation are acceptable for large deployments, and sector antennas are optional.
Sum up
Panel antenna is the representative of "precision and efficiency", which is suitable for point-to-point, directional coverage and high interference scenarios;Sector antenna is the preferred choice of "wide area flexibility", which is suitable for the deployment of outdoor large area and multi-device access.The core of selection is to match the coverage, transmission distance, environmental interference and installation conditions.The optimal performance of the wireless network can be achieved only by combining the actual requirements.
