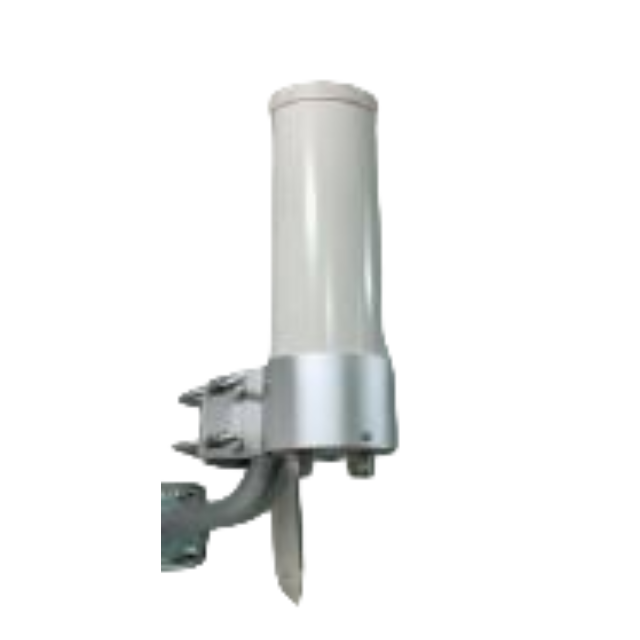

5G omni antenna ABS material diameter 63mm GL-DY7038V5
Electrical Index | |||
Frequency Range-MHz | 698-960 | 1710-2700 | 3300-3800 |
V.S.W.R | ≤2.0 | ≤2.0 | ≤2.0 |
Gain-dBi | 3 | 4 | 5 |
Horizontal Beamwidth | 360° | ||
Vertical Beamwidth | 55° | ||
Polarization | Vertical | ||
Input Impedance-Ω | 50 | ||
Max Power-W | 100 | ||
Lighting Protection | DC Ground | ||
Mechanical Index | |||
Connector | N female | ||
Dimension-mm | Ф63×250 | ||
Weight-KG | 0.65 | ||
Material | ABS | ||
Color | white | ||
Work Temperature | -40°c～60°c | ||
Rated wind velocity-m/s | 60 | ||
Pole Diameter-m | ￠35～￠60 | ||
Differences between similar antennas
P/N | GL-DY7038V5 | GL-DY7027S | GL-DY2458V64 |
Gain | 3-5 | 6.5-9.0 | 2.5-4 |
V.S.W.R. | 2.0 | 1.7 | 1.5 |
Product Introduction
1. Wide-band coverage, supporting multiple network applications: The antenna covers the 698-960MHz, 1710-2700MHz, and 3300-3800MHz frequency bands, compatible with 2G, 3G, 4G, and 5G networks, ensuring stable operation in various communication systems and reducing equipment replacement costs.
2. High gain and omnidirectional coverage, optimizing signal coverage: With a gain of 3-5dBi, combined with a 360° horizontal beamwidth and a 55° vertical beamwidth, it provides uniform omnidirectional signal coverage, suitable for deployment in wide areas such as rural areas, industrial parks, or temporary sites.
3. Durable design and weather resistance, adapting to harsh environments: Made of ABS material, it is lightweight (0.65kg) and corrosion-resistant, with an operating temperature range of -40°C to 60°C and a rated wind speed of 60m/s. The white exterior is UV-resistant, suitable for long-term outdoor use.
4. Easy Installation and Compatibility, Simplified Deployment Process
Equipped with an N-type female connector, compatible with standard communication equipment; supports pole diameters of 35-60mm, can be directly mounted on common brackets, compact size (Φ63×250mm), saving space.
5. Safe and Reliable, Lightning Protection and High Power Support
Built-in DC grounding lightning protection, maximum power 100W, input impedance 50Ω, VSWR≤2.0, ensuring high signal quality and equipment safety, suitable for high-power communication scenarios.

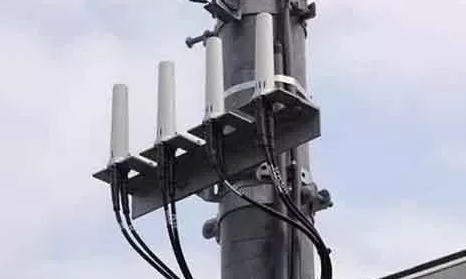

Application Scenarios
Mobile Communication Base Stations: Used to extend 2G/3G/4G/5G network coverage, especially in rural or suburban areas with weak signals.
Industrial IoT and Monitoring Systems: Deployed in factories, warehouses, or remote sites, supporting sensor and data transmission equipment.
Emergency Communication and Temporary Setups: Suitable for disaster recovery, outdoor activities, or temporary network setup at construction sites.
Public Transportation and Smart Cities: Installed at bus stops or streetlight poles to enhance public Wi-Fi or monitoring signals.
Remote area communication: Providing stable omnidirectional signal relay for mountainous areas, offshore platforms, and other locations.
FAQ
Q: What frequency bands does this antenna support?
A: It supports 698-960MHz, 1710-2700MHz, and 3300-3800MHz bands, covering 2G, 3G, 4G, and 5G networks.
Q: What is the gain of the antenna?
A: The gain is 3dBi for 698-960MHz, 4dBi for 1710-2700MHz, and 5dBi for 3300-3800MHz.
Q: How do I install this antenna?
A: It comes with an N female connector and can be mounted on poles with diameters from 35mm to 60mm using standard hardware.
Q: Is it suitable for outdoor use?
A: Yes, it features ABS material, a weatherproof design, and operates in temperatures from -40°C to 60°C with a rated wind velocity of 60m/s.
Q: Does it have lightning protection?
A: Yes, it includes DC ground lightning protection for enhanced safety in outdoor environments.
Q: What is the maximum power handling?
A: The antenna can handle up to 100W of power, making it ideal for high-power communication systems.
Q: What color and material is the antenna?
A: It is white and made of durable ABS material, which is lightweight and resistant to environmental factors.
